NDiS-B328-KI3 Fanless Embedded Computer i3-7100U

A$0.00

In stock

SKU

NDiS-B328-KI3

Fanless Embedded Computer Powered by Intel® Core™ i3-7100U, SoC Processor

Fanless Embedded Computer Powered by Intel® Core™ i3-7100U, SoC Processor

· Intel® Core™ i3-7100U

· HDMI 4K resolution

· USB 3.0 support

· WLAN support

· Compact and fanless design

Brand

Nexcom

Specifications

CPU Support	Intel® Core™ i3-7100U SoC processor Dual Core 2.4GHz
Graphic	Intel® integrated HD 620 graphics
Main Memory	2 x 204-pin SO-DIMM sockets, supports DDR4 2133MHz non- ECC,un-buffered memory up to 32G (single socket max. 16GB)
I/O Interface-Front	4 x USB 3.01 x DB9 for RS232 (cable)1 x Storage active LED1 x Power switch with LED

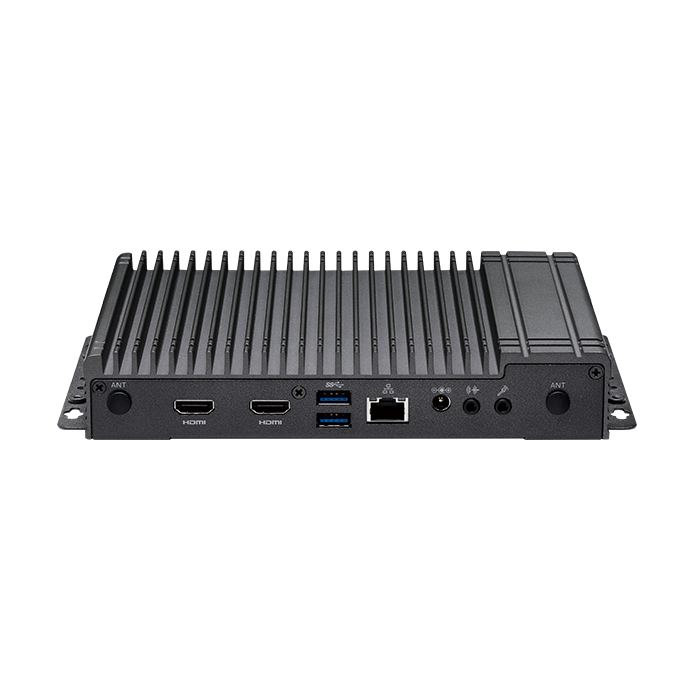

I/O Interface-Rear	1 x DC-in jack, 2.5mm (19V DC)2 x HDMI 1.4 (4K resolution)2 x Antenna hole2 x USB 3.01 x RJ45 with LEDs for Gigabit LAN1 x Line-out1 x Mic-in
Storage Device	1 x 2.5” SATA3 HDD/SSD1 x M.2 2280 SSD, PCIe by 4+ SATA signal
Expansion	1 x M.2 E key 2230 slot, support Wi-Fi
Dimensions	224.34mm (W) x 147.4mm (D) x 35mm (H)
Power Supply	DC power input +19V
Environment	Operating temperature: @ 100% CPU loading and component thermal profile from 0°C ~50°C (with HDD), -20°C~50°C (with SSD)Storage temperature: -20°C~70°CHumidity: 95% (non-condensing)
Certification	CE approvalFCC Class A
Operating System	Win10 64-bit

Description

Fanless Embedded Computer Powered by Intel® Core™ i3-7100U, SoC Processor

· Intel® Core™ i3-7100U

· HDMI 4K resolution

· USB 3.0 support

· WLAN support

· Compact and fanless design
