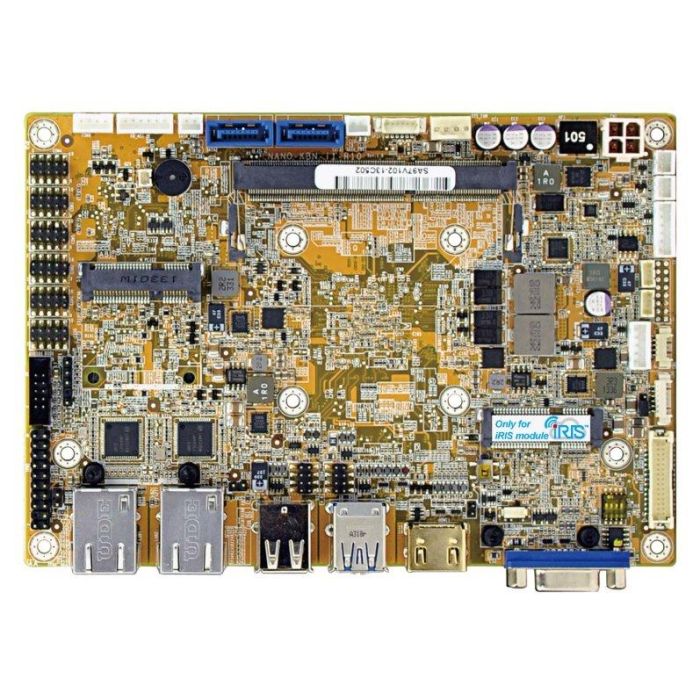

NANO-KBN-i1 EPIC SBC

A$0.00

In stock

SKU

NANO-KBN-i1

EPIC SBC supports AMD® Embedded G-Series SoC

EPIC SBC supports AMD® Embedded G-Series SoC

· EPIC SBC supports AMD® Embedded G-Series SoC

· Dual independent display support

· 1.35V DDR3L 1600/1333 MHz SDRAM supports up to 8 GB

· HD Audio supported by S/PDIF

· Support IPMI 2.0 with iRIS-1010 module

· COM, USB 3.0, SATA 6Gb/s PCIe Mini, mSATA and audio supported

· IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Brand

IEI Integration Corp.

Specifications

Spec Item	Description
CPU Cooler
CPU Cooler	N/A
Display
Display	Dual independent display VGA (up to 2048x1536@60Hz) HDMI (up to 3840x2160@60Hz) 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
Environment
Humidity	5% ~ 95%, non-condensing
Operating Temperature	0°C ~ 60°C
Expansion Slots
Expansion Slots	1 x Full-size PCIe Mini card slot (supports mSATA co-lay SATA port 2)
I/O Interface
Audio	Realtek ALC892 HD Audio codec 1 x S/PDIF (1x4 pin) 1 x Analog audio (2x5 pin)
Digital I/O	1 x 8-bit digital I/O (2x5 pin)
Ethernet	LAN1: Intel® I210-AT PCIe controller with NCSI support LAN2: Intel® I211-AT PCIe controller
I/O Interface
I/O Interface	2 x USB 3.0
	2 x USB 2.0
	4 x Internal USB 2.0
	1 x Internal RS-422/485
	5 x Internal RS-232
Option
iRIS	1 x iRIS-1010 slot
Power
Power consumption	12V@1.02A (AMD GX-415GA 1.5GHz CPU with 1600 MHz 8GB DDR3 memory)
Storage
Storage	2 x SATA 6G/s with 5V SATA power connector (no RAID)
System
CPU	AMDR Embedded G-Series ""eKabini"" SoC GX-415GA on-board Soc (1.5GHz, quad-core, 2MB cache, TDP=15W)
CPU Socket	On Board
Memory Max.	One 204-pin 1600/1333 MHz single-channel DDR3 & DDR3L SDRAM unbuffered SODIMM slot supports up to 8GB
Watchdog Timer
Watchdog Timer	Software programmable, support 1~255 sec. system reset
