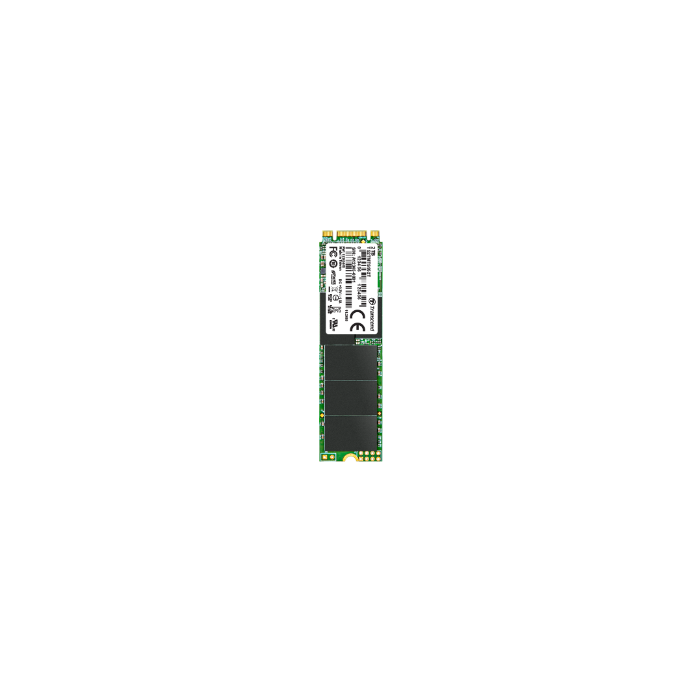

Transcend's MTS952T M.2 SSD features the SATA III 6Gb/s interface and state-of-the-art 3D NAND technology, which allows 96 layers of 3D NAND flash chips to be vertically stacked. Compared to BiCS3 NAND at 64 layers, this density breakthrough greatly improves storage efficiency. The MTS952T is built with DRAM cache for fast access, and is fully tested in-house to guarantee reliability in mission-critical applications, boasting an endurance rating of 3K Program/Erase cycles.
80.0 mm x 22.0 mm x 3.58 mm (3.15" x 0.87" x 0.14")
Weight
9 g (0.32 oz)
Form Factor
M.2
M.2 Type
2280-D2-B-M
Interface
Bus Interface
SATA III 6Gb/s
Storage
Flash Type
3D TLC NAND flash
Capacity
64 GB/
128 GB/
256 GB/
512 GB/
1 TB/
2 TB
Operating Environment
Operating Voltage
3.3V±5%
Operating Temperature
Standard
0°C (32°F) ~ 70°C (158°F)
Wide Temp.
-40°C (-40°F) ~ 85°C (185°F)
Storage Temperature
-40°C (-40°F) ~ 85°C (185°F)
Humidity
5% ~ 95%
Shock
1500 G, 0.5 ms, 3 axis
Vibration (Operating)
2.17 G (peak-to-peak), 10 Hz ~ 700 Hz (frequency)
Power
Power Consumption (Operation)
2.1 watt(s)
Power Consumption (Sleep)
0.3 watt(s)
Performance
Sequential Read/Write (CrystalDiskMark, max.)
Read: 560 MB/s Write: 520 MB/s
4K Random Read/Write (IOmeter, max.)
Read: 95,000 IOPS Write: 85,000 IOPS
Mean Time Between Failures (MTBF)
3,000,000 hour(s)
Terabytes Written (Max.)
3,520 TB
Drive Writes Per Day (DWPD)
1.61 (3 yrs)
Note
Speed may vary due to host hardware, software, usage, and storage capacity.
The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity.
Description
Transcend's MTS952T M.2 SSD features the SATA III 6Gb/s interface and state-of-the-art 3D NAND technology, which allows 96 layers of 3D NAND flash chips to be vertically stacked. Compared to BiCS3 NAND at 64 layers, this density breakthrough greatly improves storage efficiency. The MTS952T is built with DRAM cache for fast access, and is fully tested in-house to guarantee reliability in mission-critical applications, boasting an endurance rating of 3K Program/Erase cycles.
