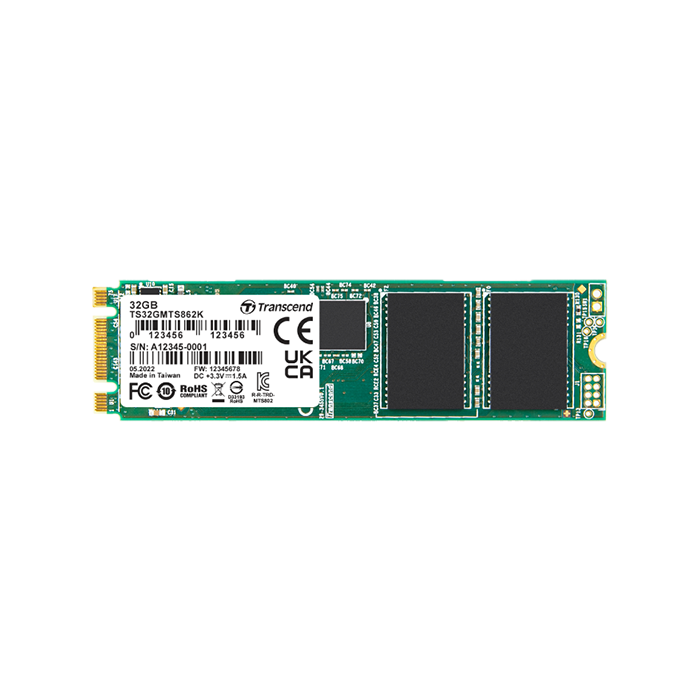

Transcend's MTS862K M.2 SSD, which features the SATA III 6Gb/s interface and Transcend's SLC Mode flash optimisation technology, delivers incredible cost performance and SLC-grade reliability in a compact M.2 form factor. It is ideal for high-performance computing and embedded verticals where space is limited, and it fully meets the requirements of small form factor systems. The MTS862K M.2 SSD features DRAM cache for consistent speeds and cache performance, as well as firmware optimisation for even more flexibility.
80.0 mm x 22.0 mm x 3.58 mm (3.15" x 0.87" x 0.14")
Weight
9 g (0.32 oz)
M.2 Type
2280-D2-B-M (Double-sided)
Form Factor
M.2 2280
Interface
Bus Interface
SATA III 6Gb/s
Storage
Capacity
16 GB/
32 GB
Flash Type
MLC NAND flash (SLC mode)
Operating Environment
Operating Voltage
3.3V±5%
Operating Temperature
Standard Temp.
0°C (32°F) ~ 70°C (158°F)
Storage Temperature
-40°C (-40°F) ~ 85°C (185°F)
Humidity
5% ~ 95%
Shock
1500 G, 0.5 ms, 3 axis
Vibration (Operating)
20 G (peak-to-peak), 7 Hz ~ 2,000 Hz (frequency)
Power
Power Consumption (Operation)
1.91 watt(s)
Power Consumption (Sleep)
0.33 watt(s)
Performance
Sequential Read/Write (CrystalDiskMark)
Read: up to 530 MB/s Write: up to 150 MB/s
4K Random Read/Write (IOmeter)
Read: up to 65,000 IOPS Write: up to 35,000 IOPS
Mean Time Between Failures (MTBF)
3,000,000 hour(s)
Terabytes Written (TBW)
up to 580 TBW
Drive Writes Per Day (DWPD)
14.8 (3 yrs)
Note
Speed may vary due to host hardware, software, usage, and storage capacity.
The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity.
Terabytes Written (TBW) expresses the endurance under the highest capacity.
Description
Transcend's MTS862K M.2 SSD, which features the SATA III 6Gb/s interface and Transcend's SLC Mode flash optimisation technology, delivers incredible cost performance and SLC-grade reliability in a compact M.2 form factor. It is ideal for high-performance computing and embedded verticals where space is limited, and it fully meets the requirements of small form factor systems. The MTS862K M.2 SSD features DRAM cache for consistent speeds and cache performance, as well as firmware optimisation for even more flexibility.
