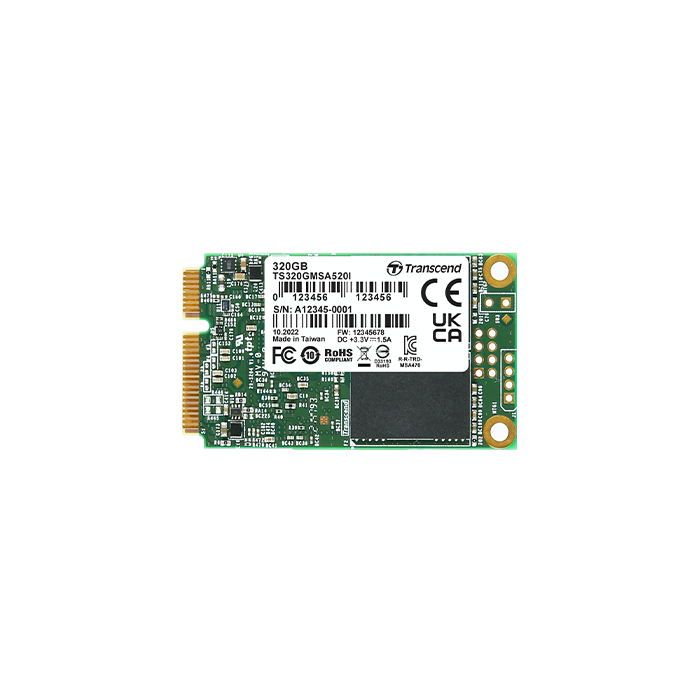

The MSA520I features the SATA III 6Gb/s interface and 112-layer 3D NAND flash, delivering density breakthrough that greatly improves storage efficiency. Its built-in DRAM cache allows faster random speeds while the 30µ" gold finger PCB, Corner Bond technology, and anti-sulfur resistor guarantee its reliability in harsh conditions. Transcend also adopts the SLC Mode technology to enable the drive to reach competitive speeds and endurance that are equal to the SLC flash. The MSA520I is fully tested in-house, operating stably in a wide operating temperature range (-40℃~85℃).
50.8 mm x 29.85 mm x 4.85 mm (2.0" x 1.18" x 0.19")
Weight
8 g (0.28 oz)
Pin Count
52 pin
Form Factor
mSATA (MO-300A)
Interface
Bus Interface
SATA III 6Gb/s
Storage
Capacity
40 GB/
80 GB/
160 GB/
320 GB
Flash Type
112-layer 3D NAND flash (SLC mode)
Operating Environment
Operating Voltage
3.3V±5%
Operating Temperature
Wide Temp.
-40°C (-40°F) ~ 85°C (185°F)
Storage Temperature
-55°C (-67°F) ~ 85°C (185°F)
Humidity
5% ~ 95%
Shock
1500 G, 0.5 ms, 3 axis
Vibration (Operating)
20 G (peak-to-peak), 7 Hz ~ 2,000 Hz (frequency)
Power
Power Consumption (Operation)
3.5 watt(s)
Power Consumption (Sleep)
1.0 watt(s)
Performance
Sequential Read/Write (CrystalDiskMark)
Read: up to 560 MB/s Write: up to 500 MB/s
4K Random Read/Write (IOmeter)
Read: up to 38,000 IOPS Write: up to 75,000 IOPS
Mean Time Between Failures (MTBF)
3,000,000 hour(s)
Terabytes Written (TBW)
up to 2,289 TBW
Drive Writes Per Day (DWPD)
52.3 (3 yrs)
Note
Speed may vary due to host hardware, software, usage, and storage capacity.
The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity.
Terabytes Written (TBW) expresses the endurance under the highest capacity.
Description
The MSA520I features the SATA III 6Gb/s interface and 112-layer 3D NAND flash, delivering density breakthrough that greatly improves storage efficiency. Its built-in DRAM cache allows faster random speeds while the 30µ" gold finger PCB, Corner Bond technology, and anti-sulfur resistor guarantee its reliability in harsh conditions. Transcend also adopts the SLC Mode technology to enable the drive to reach competitive speeds and endurance that are equal to the SLC flash. The MSA520I is fully tested in-house, operating stably in a wide operating temperature range (-40℃~85℃).
