MPC102-845

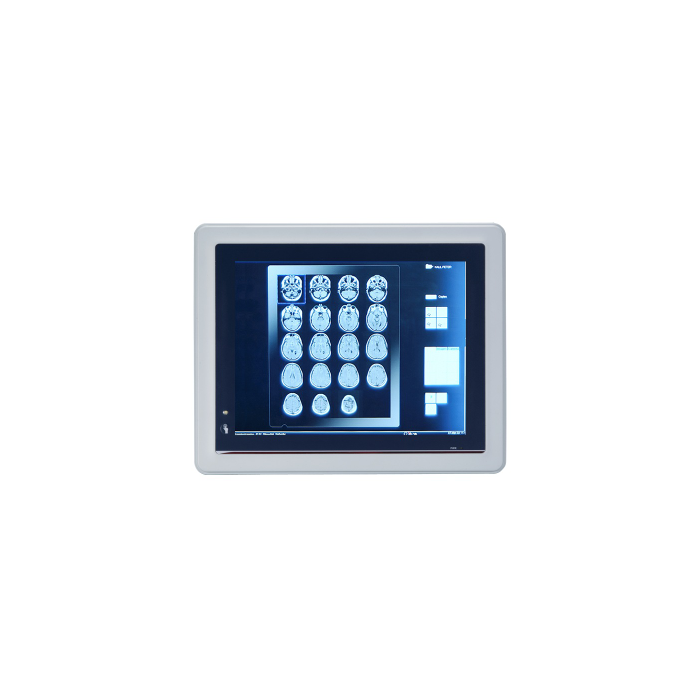

10.4" XGA TFT Fanless Medical Grade Touch Panel Computer with Intel® Celeron® Processor N3060
10.4" XGA TFT Fanless Medical Grade Touch Panel Computer with Intel® Celeron® Processor N3060
· 10.4" XGA TFT LCD display with LED backlight
· Fanless design with Intel® Celeron® processor N3060
· 2 GbE LANs, 4 USB and 2 COM
· Plastic and IP65-rated front bezel
· Supports RFID (optional)
· External AT/ATX mode selection switch
· Easy access storage design
· Supports panel mount, wall mount, VESA arm and desktop stand
· 4th EN 60601-1 (ESD contact 8KV, air 15KV), CE and FCC certified
More Information
| Specifications |
| LCD Panel |
- 10.4" XGA TFT
- 350 nits
- 1024 x 768 pixels
|
| CPU |
- Intel® Celeron® processor N3060 up to 2.48 GHz
|
| Chipset |
|
| System Memory |
- 1 x 204-pin SO-DIMM DDR3L-1600, up to 8GB
|
| BIOS |
|
| COM |
- 1 x RS-232
- 1 x RS-232/422/485 (default RS-232)
|
| USB |
|
| Ethernet |
- 2 x 10/100/1000 Mbps (Intel® i211-AT)
|
| Display |
|
| Audio |
|
| Camera |
|
| Optical Drive |
|
| Storage |
- 1 x 2.5" SATA HDD (9.5 mm height)
- 1 x mSATA
|
| Expansion |
- 1 x Full-size PCI Express Mini Card slot with mSATA
- 1 x Full-size PCI Express Mini Card slot with SIM
|
| Others |
- 1 x Switch for power on/off
- 1 x AT/ATX mode selection switch
|
| Touchscreen |
|
| Front Bezel |
- IP65, NEMA 4 rugged protection, plastic front bezel
|
| Power Consumption |
|
| Power Supply |
- AC version: 100 to 240 V AC-DC, 65W power adapter
- DC version: 9 to 36 VDC with over current protection fuse
|
| Watchdog Timer |
- 255 levels, 0 to 255 sec.
|
| Operating Temperature |
- 0°C to +40°C (+32°F to +122°F)
|
| Relative Humidity |
- 20% to 90% @ +40°C; non-condensing
|
| Vibration |
- 2G, 5 - 500Hz, random for SSD
|
Dimensions
(W x D x H) |
- 292.5 x 45.8 x 235.8 mm (11.52" x 1.80" x 9.28")
|
| Weight (net/gross) |
- 1.8 kg (3.96 lb)/3 kg (6.61 lb)
|
| Certifications |
- 4th EN 60601-1 (ESD contact 8KV, air 15KV), CE and FCC
|
| EOS |
- Windows® 10, Windows® 8.1, WE8S, Windows® 7, WES7
|
| Mounting |
- VESA arm
- Panel mount
- Desktop stand
- Wall mount
|
|
| Description |
10.4" XGA TFT Fanless Medical Grade Touch Panel Computer with Intel® Celeron® Processor N3060
· 10.4" XGA TFT LCD display with LED backlight
· Fanless design with Intel® Celeron® processor N3060
· 2 GbE LANs, 4 USB and 2 COM
· Plastic and IP65-rated front bezel
· Supports RFID (optional)
· External AT/ATX mode selection switch
· Easy access storage design
· Supports panel mount, wall mount, VESA arm and desktop stand
· 4th EN 60601-1 (ESD contact 8KV, air 15KV), CE and FCC certified
|
