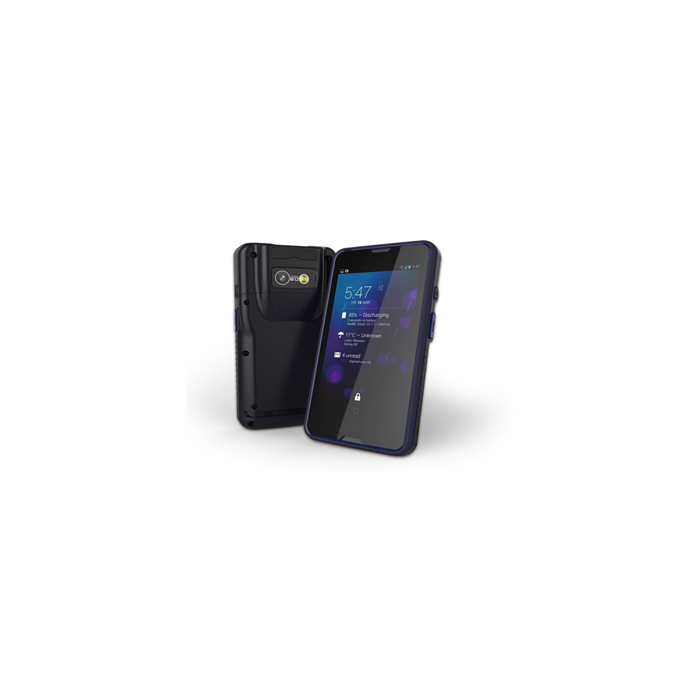

Mobile Data Collector
● Stylish rugged design and ultra-light industrial Android mobile device
● Octa-Core Cortex A53 64bit 1.7 GHz Processor
● 5.3” display PDA
● Optional:
· GSM 850/900/1800/1900
· WCDMA 2100/1900/850/900
· 4G LTE
· FDD (Band 1,2,3,7,8,20)
· TDD (Band 38,39,40,41)
● Micro USB port and microSD card slot (max. 32 GB) for maximum connectivity
● Android 5.0 OS
● 1D/2D imager scan engine
● NFC (device to device communication, card reader)
More Information
| Specifications |
| Spec Item |
Description |
| Communication |
| Bluetooth |
4.0 LE |
| GPS |
GPS / Glonass |
| modem |
GSM ( 800, 900, 1800, 1900)
WCDMA (2100, 1900, 850, 900)
4G FDD(Band1,2,3,7,8,20), TDD(38,39,40,41) |
| Wi-Fi |
802.11a/b/g/n |
| Display |
| Brightness(cd/m2) |
350 |
| LCD Size |
5.3” |
| Max Resolution |
540(H) x 960(V) |
| Touch Screen |
5-point capacitive |
| Viewing Angle |
80/80/80/80 Deg. |
| Environment |
| Humidity |
10% ~ 95%, non condensing |
| Operating Temperature |
-10°C ~ 50°C |
| I/O Interface |
| I/O Interface |
1 x WIFI(802.11a/b/g/n) |
| 1 x USB 2.0(Micro USB) |
| 1 x Mic |
| 1 x Speaker(0.5W) |
| Physical Characteristics |
| Dimensions (LxWxH) (mm) |
160.9 mm x 85.4 mm x 28.85 mm |
| Power |
| Battery |
3900 mAh |
| Power adapter |
5V/3A |
| System |
| CPU |
Octa-Core Cortex A53 64bit 1.7 GHz |
| On-board Memory |
16GB eMMC
2G LPDDR2 |
| Weight |
| Weight |
386 g |
|
| Description |
Mobile Data Collector
● Stylish rugged design and ultra-light industrial Android mobile device
● Octa-Core Cortex A53 64bit 1.7 GHz Processor
● 5.3” display PDA
● Optional:
· GSM 850/900/1800/1900
· WCDMA 2100/1900/850/900
· 4G LTE
· FDD (Band 1,2,3,7,8,20)
· TDD (Band 38,39,40,41)
● Micro USB port and microSD card slot (max. 32 GB) for maximum connectivity
● Android 5.0 OS
● 1D/2D imager scan engine
● NFC (device to device communication, card reader)
|
