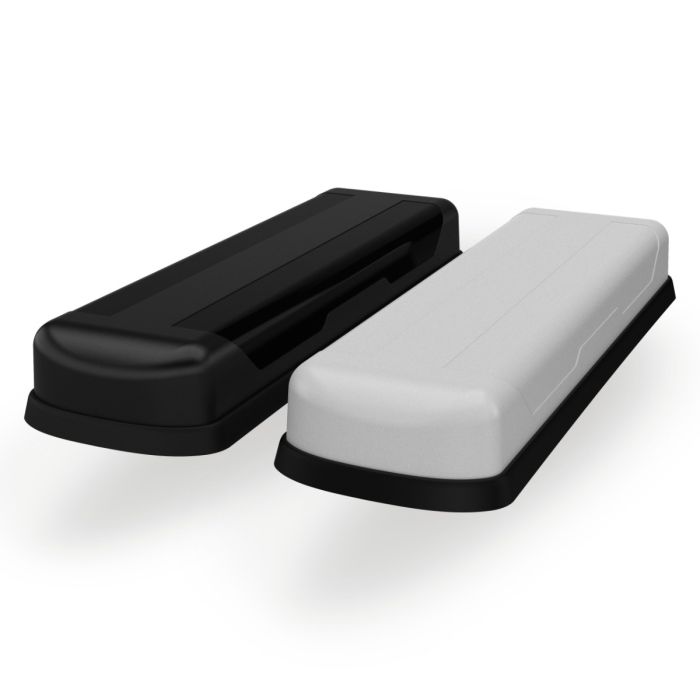

Shop Megalodon 8 x 4G/5G Low Profile Antenna

Details

The industry-leading Megalodon range has been developed to provide 2x 4×4 MiMo 4G/5G antenna systems covering 617-960/1427-6000MHz within a robust low-profile package. Covering global cellular bands for future-proof performance, the antenna provides effective functionality for 2x 4G Cat 18/20 and/or 5G modems. This can be combined with several other functions including single/dual band GPS/GNSS and up to 8×8 MiMo WiFi elements covering 2.4-7.2GHz (WiFi 6e/7).

The antenna is designed to be panel mounted and can be fitted on a conductive or non-conductive panel. Supplied with integrated flame-retardant low-loss CS30 cables (Compliant with UN ECE R118) and a halogen-free, flame-retardant radome, the antenna is suitable for many environments and applications, including public safety and transportation.

The LGM variants have an integrated GPS/GNSS module supporting either L1 only or L1/L5 frequencies. This GPS module features advanced filtering for LTE B13/14 designed to minimise potential in-band interference.

The antenna is available with a black or white radome which meets IK10 for vandal resistance and IP69K for Ingress protection.

More Information

brand

Panorama Antennas

Specifications

ELECTRICAL DATA
Pattern	Omnidirectional
Max Input Power(W)	50
Typical VSWR	<3:1
Frequency Range \| Gain	Check the part number table
Cellular LTE Elements	8×8 – 2x 4×4 MiMo
WIFI Elements	No; 2 x 2 MIMO; 4 x 4 MIMO; 6 x 6 MIMO; 8×8 MiMo
UHF Elements	No
GPS DATA
GPS Frequency Range	1559-1612MHz; 1164-1189MHz/1559-1612MHZ
LNA GAIN (dB)	26dB; 30dB / 26dB; 30 / 26dB
Number of GPS Elements	No; 1 Module; 2 Modules
MECHANICAL DATA
Colour	White; Black
Length	437 (mm) \| 17.20 (in)
Width	133 (mm) \| 5.24 (in)
Height	max: 56 (mm) \| 2.2 (in)
Operating Temperature	-40°/ +80°C (-40.0°/ +176.0°F)
CABLE DATA
Cable Length – LTE	min: 0.3 (m) \| 0.98 (ft); max: 5 (m) \| 16.4 (ft)
Cable length – GPS	min: 0.3 (m) \| 0.98 (ft); max: 5 (m) \| 16.4 (ft)
Cable Length – WIFI	min: 0.3 (m) \| 0.98 (ft); max: 5 (m) \| 16.4 (ft)
Cable Type (LTE)	CS30; FR CS32
Cable Type (GPS)	FR RG174; FR CS29
Cable Type (WIFI)	CS30; FR CS32
Quantity of Cell Cable	8
Quantity of GPS/GNSS Extension	max: 2
Quantity of WIFI Extension	max: 6
TERMINATION DATA
Connector (WIFI)	SMA (f); Reverse Polarity SMA
Connector (GPS)	SMA (m)
Connector (LTE)	SMA (m)
MOUNTING DATA
Mounting Type Fixed	Panel
Mounting Methods	Panel
APPROVALS DATA
IP Rating	IK10; IP69K
Cable Flammability	UN ECE R118
TECHNOLOGY DATA
Technology	4G/5G; 5G; 169MHz; 2G/3G/4G; Band 71 600MHz ready; CBRS; FirstNet; GPS; GNSS; WIFI MIMO; WIFI; WIFI 6E

SKU	Colour	Frequency Range \| Gain	Cellular	GPS	WIFI
LPMM8-6-60	White	617 – 960MHz \| 3dBi; 1427 – 4200MHz \| 7dBi; 4400 – 6000MHz \| 8dBi	8×8 – 2x 4×4 MiMo	No	No
			0.3m
			SMA (m)
LPMM8B-6-60	Black	617 – 960MHz \| 3dBi; 1427 – 4200MHz \| 7dBi; 4400 – 6000MHz \| 8dBi	8×8 – 2x 4×4 MiMo	No	No
			0.3m
			SMA (m)
LGMM8B-6-60	Black	617 – 960MHz \| 3dBi; 1427 – 4200MHz \| 7dBi; 4400 – 6000MHz \| 8dBi	8×8 – 2x 4×4 MiMo	1 Module	No
			0.3m	0.3m
			SMA (m)	SMA (m)
LGMM8-6-60	White	617 – 960MHz \| 3dBi; 1427 – 4200MHz \| 7dBi; 4400 – 6000MHz \| 8dBi	8×8 – 2x 4×4 MiMo	1 Module	No
			0.3m	0.3m
			SMA (m)	SMA (m)
LG5MM8-6-60	White	617 – 960MHz \| 3dBi; 1427 – 4200MHz \| 7dBi; 4400 – 6000MHz \| 8dBi	8×8 – 2x 4×4 MiMo	1 Module	No
			0.3m	0.3m
			SMA (m)	SMA (m)
LG5MM8B-6-60	Black	617 – 960MHz \| 3dBi; 1427 – 4200MHz \| 7dBi; 4400 – 6000MHz \| 8dBi	8×8 – 2x 4×4 MiMo	1 Module	No
			0.3m	0.3m
			SMA (m)	SMA (m)
LGMDM8B-6-60	Black	617 – 960MHz \| 3dBi; 1427 – 4200MHz \| 7dBi; 2400 – 2485MHz \| 6dBi; 4400 – 6000MHz \| 8dBi; 5150 – 7125MHz \| 7dBi	8×8 – 2x 4×4 MiMo	1 Module	2 x 2 MIMO
			0.3m	0.3m	0.3m
			SMA (m)	SMA (m)	SMA (f)
LG5MQM8-6-60	White	617 – 960MHz \| 3dBi; 1427 – 4200MHz \| 7dBi; 2400 – 2485MHz \| 6dBi; 4400 – 6000MHz \| 8dBi; 5150 – 7125MHz \| 7dBi	8×8 – 2x 4×4 MiMo	1 Module	4 x 4 MIMO
			0.3m	0.3m	0.3m
			SMA (m)	SMA (m)	SMA (f)
LG5MDM8-6-60	White	617 – 960MHz \| 3dBi; 1427 – 4200MHz \| 7dBi; 2400 – 2485MHz \| 6dBi; 4400 – 6000MHz \| 8dBi; 5150 – 7125MHz \| 7dBi	8×8 – 2x 4×4 MiMo	1 Module	2 x 2 MIMO
			0.3m	0.3m	0.3m
			SMA (m)	SMA (m)	SMA (f)
LG5MDM8B-6-60	Black	617 – 960MHz \| 3dBi; 1427 – 4200MHz \| 7dBi; 2400 – 2485MHz \| 6dBi; 4400 – 6000MHz \| 8dBi; 5150 – 7125MHz \| 7dBi	8×8 – 2x 4×4 MiMo	1 Module	2 x 2 MIMO
			0.3m	0.3m	0.3m
			SMA (m)	SMA (m)	SMA (f)
LGMHM8B-6-60	Black	617 – 960MHz \| 3dBi; 1427 – 4200MHz \| 7dBi; 2400 – 2485MHz \| 6dBi; 4400 – 6000MHz \| 8dBi; 5150 – 7125MHz \| 7dBi	8×8 – 2x 4×4 MiMo	1 Module	6 x 6 MIMO
			0.3m	0.3m	0.3m
			SMA (m)	SMA (m)	SMA (f)
LGMHM8-6-60	White	617 – 960MHz \| 3dBi; 1427 – 4200MHz \| 7dBi; 2400 – 2485MHz \| 6dBi; 4400 – 6000MHz \| 8dBi; 5150 – 7125MHz \| 7dBi	8×8 – 2x 4×4 MiMo	1 Module	6 x 6 MIMO
			0.3m	0.3m	0.3m
			SMA (m)	SMA (m)	SMA (f)
LG5MHM8-6-60	White	617 – 960MHz \| 3dBi; 1427 – 4200MHz \| 7dBi; 2400 – 2485MHz \| 6dBi; 4400 – 6000MHz \| 8dBi; 5150 – 7125MHz \| 7dBi	8×8 – 2x 4×4 MiMo	1 Module	6 x 6 MIMO
			0.3m	0.3m	0.3m
			SMA (m)	SMA (m)	SMA (f)
LG5MHM8B-6-60	Black	617 – 960MHz \| 3dBi; 1427 – 4200MHz \| 7dBi; 2400 – 2485MHz \| 6dBi; 4400 – 6000MHz \| 8dBi; 5150 – 7125MHz \| 7dBi	8×8 – 2x 4×4 MiMo	1 Module	6 x 6 MIMO
			0.3m	0.3m	0.3m
			SMA (m)	SMA (m)	SMA (f)
LGMQM8-6-60	White	617 – 960MHz \| 3dBi; 1427 – 4200MHz \| 7dBi; 2400 – 2485MHz \| 6dBi; 4400 – 6000MHz \| 8dBi; 5150 – 7125MHz \| 7dBi	8×8 – 2x 4×4 MiMo	1 Module	4 x 4 MIMO
			0.3m	0.3m	0.3m
			SMA (m)	SMA (m)	SMA (f)
LGMQM8B-6-60	Black	617 – 960MHz \| 3dBi; 1427 – 4200MHz \| 7dBi; 2400 – 2485MHz \| 6dBi; 4400 – 6000MHz \| 8dBi; 5150 – 7125MHz \| 7dBi	8×8 – 2x 4×4 MiMo	1 Module	4 x 4 MIMO
			0.3m	0.3m	0.3m
			SMA (m)	SMA (m)	SMA (f)
LG5MQM8B-6-60	Black	617 – 960MHz \| 3dBi; 1427 – 4200MHz \| 7dBi; 2400 – 2485MHz \| 6dBi; 4400 – 6000MHz \| 8dBi; 5150 – 7125MHz \| 7dBi	8×8 – 2x 4×4 MiMo	1 Module	4 x 4 MIMO
			0.3m	0.3m	0.3m
			SMA (m)	SMA (m)	SMA (f)
LGMOM8-6-60	White	617 – 960MHz \| 3dBi; 1427 – 4200MHz \| 7dBi; 2400 – 2485MHz \| 6dBi; 4400 – 6000MHz \| 8dBi; 5150 – 7125MHz \| 7dBi	8×8 – 2x 4×4 MiMo	1 Module	8×8 MiMo
			0.3m	0.3m	0.3m
			SMA (m)	SMA (m)	SMA (f)
LGMOM8B-6-60	Black	617 – 960MHz \| 3dBi; 1427 – 4200MHz \| 7dBi; 2400 – 2485MHz \| 6dBi; 4400 – 6000MHz \| 8dBi; 5150 – 7125MHz \| 7dBi	8×8 – 2x 4×4 MiMo	1 Module	8×8 MiMo
			0.3m	0.3m	0.3m
			SMA (m)	SMA (m)	SMA (f)
LG5MOM8B-6-60	Black	617 – 960MHz \| 3dBi; 1427 – 4200MHz \| 7dBi; 2400 – 2485MHz \| 6dBi; 4400 – 6000MHz \| 8dBi; 5150 – 7125MHz \| 7dBi	8×8 – 2x 4×4 MiMo	1 Module	8×8 MiMo
			0.3m	0.3m	0.3m
			SMA (m)	SMA (m)	SMA (f)
LG5MOM8-6-60	White	617 – 960MHz \| 3dBi; 1427 – 4200MHz \| 7dBi; 2400 – 2485MHz \| 6dBi; 4400 – 6000MHz \| 8dBi; 5150 – 7125MHz \| 7dBi	8×8 – 2x 4×4 MiMo	1 Module	8×8 MiMo
			0.3m	0.3m	0.3m
			SMA (m)	SMA (m)	SMA (f)
LG-IN2902	Black	617 – 960MHz \| 3dBi; 1427 – 4200MHz \| 7dBi; 2400 – 2485MHz \| 6dBi; 4400 – 6000MHz \| 8dBi; 5150 – 7125MHz \| 7dBi	8×8 – 2x 4×4 MiMo	1 Module	2 x 2 MIMO
			5m	5m	5m
			SMA (m)	SMA (m)	Reverse Polarity SMA
			Cables Fitted	Cables Fitted	Cables Fitted
LG-IN2902-W	White	617 – 960MHz \| 3dBi; 1427 – 4200MHz \| 7dBi; 2400 – 2485MHz \| 6dBi; 4400 – 6000MHz \| 8dBi; 5150 – 7125MHz \| 7dBi	8×8 – 2x 4×4 MiMo	1 Module	2 x 2 MIMO
			5m	5m	5m
			SMA (m)	SMA (m)	Reverse Polarity SMA
			Cables Fitted	Cables Fitted	Cables Fitted
LG-IN2904	Black	617 – 960MHz \| 3dBi; 1427 – 4200MHz \| 7dBi; 2400 – 2485MHz \| 6dBi; 4400 – 6000MHz \| 8dBi; 5150 – 7125MHz \| 7dBi	8×8 – 2x 4×4 MiMo	2 Modules	6 x 6 MIMO
			5m	5m	5m
			SMA (m)	SMA (m)	Reverse Polarity SMA
			Cables Fitted	Cables Fitted	Cables Fitted

Description

The industry-leading Megalodon range has been developed to provide 2x 4×4 MiMo 4G/5G antenna systems covering 617-960/1427-6000MHz within a robust low-profile package. Covering global cellular bands for future-proof performance, the antenna provides effective functionality for 2x 4G Cat 18/20 and/or 5G modems. This can be combined with several other functions including single/dual band GPS/GNSS and up to 8×8 MiMo WiFi elements covering 2.4-7.2GHz (WiFi 6e/7).

The antenna is designed to be panel mounted and can be fitted on a conductive or non-conductive panel. Supplied with integrated flame-retardant low-loss CS30 cables (Compliant with UN ECE R118) and a halogen-free, flame-retardant radome, the antenna is suitable for many environments and applications, including public safety and transportation.

The LGM variants have an integrated GPS/GNSS module supporting either L1 only or L1/L5 frequencies. This GPS module features advanced filtering for LTE B13/14 designed to minimise potential in-band interference.

The antenna is available with a black or white radome which meets IK10 for vandal resistance and IP69K for Ingress protection.

Reviews

Write Your Own Review

Downloads

Datasheet

The 'Megalodon' 8 x 4G/5G Low Profile Antenna
