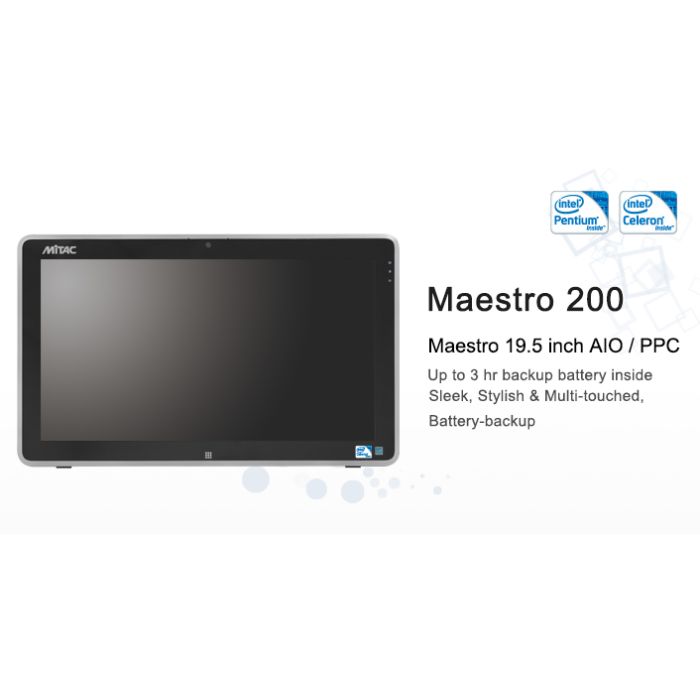

Maestro 200 19.5" Panel PC
Maestro 19.5 inch AIO / PPC Up to 3 hr backup battery inside
Maestro 19.5 inch AIO / PPC Up to 3 hr backup battery inside
For POS (Point of Sales) Scenario:
Retail POS Terminal
Self Service Terminal
Hospitality Terminal
For POC (Point of Care) Scenario:
Clinical Monitor
Nursing Cart
Bedside Terminal
More Information
| Specifications |
|
Chassis
Panel
Touch Panel
Battery
Wall Mount
Stand Type
Security Lock
Speaker
Webcam
Function Buttons
Main board function
External I/O
OS
Wireless LAN
Power Adapter
|
White / Black
19.5 ", 1600 x 900 resolution, IPS panel
Projective capacitive touch support 10 fingers touch
59.2Wh, 4-Cell Battery, Up to 3 hr Battery Life
VESA Mount (10cm x 10cm)
Flat L-stand
Kensington Lock
2W + 2W L/R speakers
1.0M HD (720p) 16:9 Lens with two digital microphone
Home button
Power button
HD-in button
Volumn up/down
Rotation lock
CPU/Chipset: Intel Bay Trail-M SOC, N2930
DDR3L So-Dimm Slot x 1 (up to 8GB)
Full-length Mini PCIe slot x 1
Half-length MiniPCIe slot x 1
DC Inlet x 1
USB 2.0
RS232 x 2
GLAN x 1
USB3.0 x 1
HD-in x 1
Audio combo jack x 1
SD card reader x 1
Windows 7/8.1/10
Mini. Card, 802.11 b/g/n, with BT
19V, 65W
|
|
| Description |
Maestro 19.5 inch AIO / PPC Up to 3 hr backup battery inside
For POS (Point of Sales) Scenario:
Retail POS Terminal
Self Service Terminal
Hospitality Terminal
For POC (Point of Care) Scenario:
Clinical Monitor
Nursing Cart
Bedside Terminal
|
