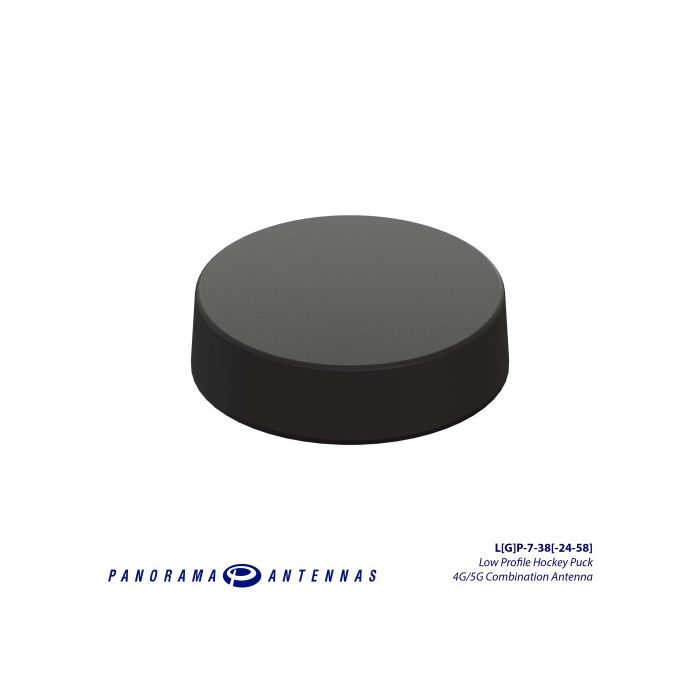

L[G]P-7-38[-24-58] Low Profile Multifunction Puck Antenna 4G WiFi GPS/GNSS
Panorama L[G]P-7-38[-24-58] Low Profile Puck Antenna Wi-Fi GNSS 4G/5G
Key Features:
Low Profile ‘Hockey Puck’ Design 3G/4G+ Optional WiFi & GPS/GNSS Functionality Suitable for M2M and IOT Installations
The Panorama L[G]P-7-38[-24-58] range is specifically designed to minimize the overall cost over time in M2M and IoT applications by providing a durable low-profile antenna in a compact size. It offers an excellent solution when a sturdy yet inconspicuous option is needed. The antenna operates within the frequency range of 698-960/1710-3800MHz and includes the possibility of adding optional 2.4/5.0GHz WiFi and GPS/GNSS functionality, which comes with a 26dB LNA (low noise amplifier). It can be easily installed on non-conductive panels using the 19mm (3/4") mounting bush and comes equipped with 3 RG174 cables and a choice of FAKRA or SMA connectors.
Key Features:
Low Profile ‘Hockey Puck’ Design 3G/4G+ Optional WiFi & GPS/GNSS Functionality Suitable for M2M and IOT Installations
More Information
brand
Panorama Antennas
Specifications
Part No.
LGP-7-38-24-58-3SP LGP-7-38-24-58-3FK LGP-7-38-24-58-1FK LGP-7-38-24-58-1SP
Electrical Data
Frequency Range (MHz) Element 1 698-960/1710-3800
Element 2 2400-2485/4900-6000
Element 3 1562-1612
Peak Gain† Element 1: 698-960MHz 0dBi
Element 1: 1710-3800MHz 2dBi
Element 2: 2.4GHz 2dBi
Element 2: 5.0GHz 4dBi
Typical VSWR
<2.5:1
Polarisation
Vertical
Pattern
Omni-directional
Impedance
50Ω
Max Input Power (W)
20
GPS/GNSS Data
Frequency Range (MHz)
1562-1612Mhz
LNA Gain (dB)
26dB
Typical Current (mA)
15
Typical Voltage
3-5 VDC
Mechanical Data
Dimensions (mm) Height 22.5 (0.88”)
Diameter 80 (3.14”)
Operating Temp (°C)
-40° / +85°C (-40° / 185°F)
Material
ASA
Colour
Black
Mounting Data
Fixing
Panel Mount 19mm (3/4")
Cable Data
Cable 1: Cellular Cable Type RG174 (meets UN ECE 118)
Diameter (mm) 2.8 (0.11”)
Length (m) 3 (10’)
1 (3’ 3”)
Termination SMA(m)
FAKRA D
FAKRA D
SMA(m)
Cable 2: WiFi Cable Type RG174 (meets UN ECE 118)
Diameter (mm) 2.8 (0.11”)
Length (m) 3 (10’)
1 (3’ 3”)
Termination SMA Rev Pol
FAKRA I (Beige) Jack
FAKRA I (Beige) Jack
SMA Rev Pol
Cable 3: GPS/GNSS Cable Type RG174 (meets UN ECE 118)
Diameter (mm) 2.8 (0.11”)
Length (m) 3 (10’)
1 (3’ 3”)
Termination SMA(m)
FAKRA C (Blue) Jack
FAKRA C (Blue) Jack
SMA(m)
Part No.
LGP-7-38-3SP LGP-7-38-3FK LGP-7-38-1FK LGP-7-38-1SP
Electrical Data
Frequency Range (MHz) Element 1 698-960/1710-3800
Element 2 1562-1612
Peak Gain† Element 1: 698-960MHz 0dBi
Element 1: 1710-3800MHz 2dBi
Typical VSWR
<2.5:1
Polarisation
Vertical
Pattern
Omni-directional
Impedance
50Ω
Max Input Power (W)
20
GPS/GNSS Data
Frequency Range (MHz)
1562-1612Mhz
LNA Gain (dB)
26dB
Typical Current (mA)
15
Typical Voltage
3-5 VDC
Mechanical Data
Dimensions (mm) Height 22.5 (0.88”)
Diameter 80 (3.14”)
Operating Temp (°C)
-40° / +85°C (-40° / 185°F)
Material
ASA
Colour
Black
Mounting Data
Fixing
Panel Mount 19mm (3/4")
Cable Data
Cable 1: Cellular Cable Type RG174 (meets UN ECE 118)
Diameter (mm) 2.8 (0.11”)
Length (m) 3 (10’)
1 (3’ 3”)
Termination SMA(m)
FAKRA D(Burgundy) Jack
FAKRA D(Burgundy) Jack
SMA(m)
Cable 2: GPS/GNSS Cable Type RG174 (meets UN ECE 118)
Diameter (mm) 2.8 (0.11”)
Length (m) 3 (10’)
1 (3’ 3”)
Termination SMA(m)
FAKRA C (Blue) Jack
FAKRA C (Blue) Jack
SMA(m)
Part No.
LPP-7-38-24-58-3SP LPP-7-38-24-58-3FK LPP-7-38-24-58-1FK LPP-7-38-24-58-1SP
Electrical Data
Frequency Range (MHz) Element 1 698-960/1710-3800
Element 2 2400-2485/4900-6000
Peak Gain† Element 1: 698-960MHz 0dBi
Element 1: 1710-3800MHz 2dBi
Element 2: 2.4GHz 2dBi
Element 2: 5.0GHz 4dBi
Typical VSWR
<2.5:1
Polarisation
Vertical
Pattern
Omni-directional
Impedance
50Ω
Max Input Power (W)
20
GPS/GNSS Data
Frequency Range (MHz)
1562-1612Mhz
LNA Gain (dB)
26dB
Typical Current (mA)
15
Typical Voltage
3-5 VDC
Mechanical Data
Dimensions (mm) Height 22.5 (0.88”)
Diameter 80 (3.14”)
Operating Temp (°C)
-40° / +85°C (-40° / 185°F)
Material
ASA
Colour
Black
Mounting Data
Fixing
Panel Mount 19mm (3/4")
Cable Data
Cable 1: Cellular Cable Type RG174 (meets UN ECE 118)
Diameter (mm) 2.8 (0.11”)
Length (m) 3 (10’)
1 (3’ 3”)
Termination SMA(m)
FAKRA D(Burgundy) Jack
FAKRA D(Burgundy) Jack
SMA(m)
Cable 2: WiFi Cable Type RG174 (meets UN ECE 118)
Diameter (mm) 2.8 (0.11”)
Length (m) 3 (10’)
1 (3’ 3”)
Termination SMA Rev Pol
FAKRA I (Blue) Jack
FAKRA I (Blue) Jack
SMA Rev Pol
Part No.
LPP-7-38-3SP LPP-7-38-3FK LPP-7-38-1FK LPP-7-38-1SP
Electrical Data
Frequency Range (MHz) Element 1 698-960/1710-3800
Peak Gain† Element 1: 698-960MHz 0dBi
Element 1: 1710-3800MHz 2dBi
Typical VSWR
<2.5:1
Polarisation
Vertical
Pattern
Omni-directional
Impedance
50Ω
Max Input Power (W)
20
GPS/GNSS Data
Frequency Range (MHz)
1562-1612Mhz
LNA Gain (dB)
26dB
Typical Current (mA)
15
Typical Voltage
3-5 VDC
Mechanical Data
Dimensions (mm) Height 22.5 (0.88”)
Diameter 80 (3.14”)
Operating Temp (°C)
-40° / +85°C (-40° / 185°F)
Material
ASA
Colour
Black
Mounting Data
Fixing
Panel Mount 19mm (3/4")
Cable Data
Cable 1: Cellular Cable Type RG174 (meets UN ECE 118)
Diameter (mm) 2.8 (0.11”)
Length (m) 3 (10’)
1 (3’ 3”)
Termination SMA(m)
FAKRA D(Burgundy) Jack
FAKRA D(Burgundy) Jack
SMA(m)
Description
The Panorama L[G]P-7-38[-24-58] range is specifically designed to minimize the overall cost over time in M2M and IoT applications by providing a durable low-profile antenna in a compact size. It offers an excellent solution when a sturdy yet inconspicuous option is needed. The antenna operates within the frequency range of 698-960/1710-3800MHz and includes the possibility of adding optional 2.4/5.0GHz WiFi and GPS/GNSS functionality, which comes with a 26dB LNA (low noise amplifier). It can be easily installed on non-conductive panels using the 19mm (3/4") mounting bush and comes equipped with 3 RG174 cables and a choice of FAKRA or SMA connectors.
Key Features:
Low Profile ‘Hockey Puck’ Design 3G/4G+ Optional WiFi & GPS/GNSS Functionality Suitable for M2M and IOT Installations
