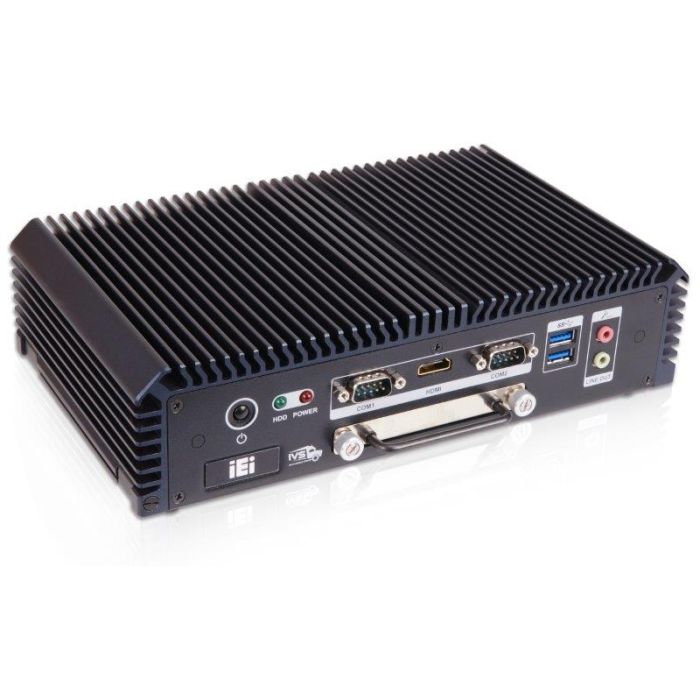

IVS-200-ULT2 Vehicle Surveillance System

A$0.00

In stock

SKU

IVS-200-ULT2

Fanless System with Intel® Celeron® 3765U 1.7GHz or Intel® Core™ i5-5350U up to 2.9GHz

Fanless System with Intel® Celeron® 3765U 1.7GHz or Intel® Core™ i5-5350U up to 2.9GHz

● Intel® i5-5350U dual-core 1.8 GHz CPU or Intel® Celeron® 3755U dual-core 1.7 GHz CPU

● Four Intel® GbE LAN ports

● 9 V~36 V DC input

● Two RS-232/422/485

● E-Mark certification

Brand

IEI Integration Corp.

Specifications

Spec Item	Description
Form factor
SBC Form Factor	CPU: Intel® Core i5-5350U (dual-core, 1.8 GHz, 15W TDP) or Intel® Celeron® 3765U (dual-core, 1.9 GHz, 15W TDP) Chipset: SoC System Memory:2 x 204-pin DDR3L SO-DIMM. 1 x 4GB pre-installed
I/O Interface
I/O Ports	2 x USB3.0 2 x USB2.0 4 x RJ-45 GbE Lan 2 x DB-9 RS-232/422/485 3 x DB-9 RS-232 (optional) 1 x VGA 1 x HDMI 8 bit digital I/O (4-bit input, 4-bit output) (optional) 1 x SIM slot 1 x Line out, 1 x Mic in
Expansion Slots
Expansion Slots	1 x Full size (co-lay mSATA) 1 x Half size
System
Cooling method / System Fan	Fanless
Drive Bays	1 x 2.5"" SATA 3Gb/s HDD/SSD drive bay
Indicator&Buttons
Indicators	HDD/Power
Color
Color	Blue C
Dimensions
Dimensions	255 x 63 x 150
Weight
Weight	2.2 kg/3 kg
Environment
Operating Temperature	-20°C ~ 60°C with air flow
Humidity	5% ~ 95%, non-condensing

Description

Fanless System with Intel® Celeron® 3765U 1.7GHz or Intel® Core™ i5-5350U up to 2.9GHz

● Intel® i5-5350U dual-core 1.8 GHz CPU or Intel® Celeron® 3755U dual-core 1.7 GHz CPU

● Four Intel® GbE LAN ports

● 9 V~36 V DC input

● Two RS-232/422/485

● E-Mark certification
