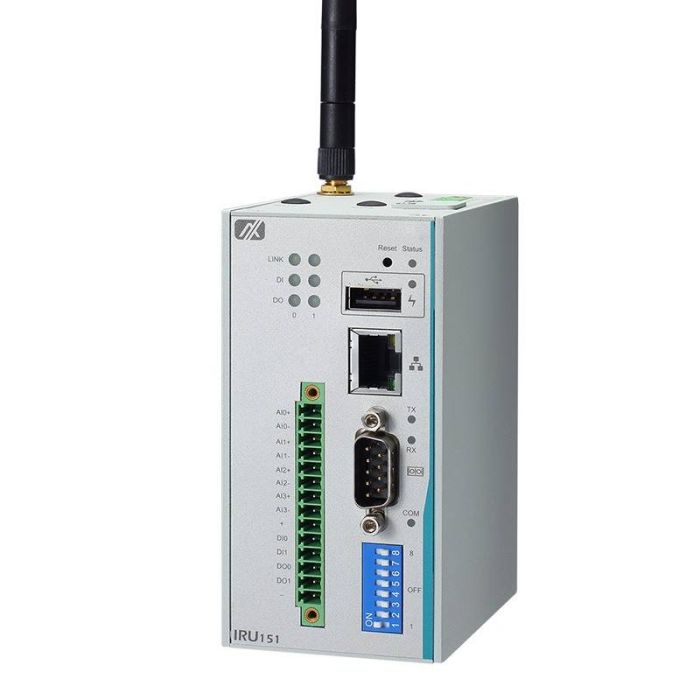

IRU151-I - i.MX 6UL, Embedded Linux O/S
Robust RISC-based DIN-rail Fanless Embedded System with i.MX 6UL Processor, DIO (2-in/2-out), 4 AI Channels (16-bit, 100 S/s, ±20mA) and 2 PCIe Mini Card Slots
Robust RISC-based DIN-rail Fanless Embedded System with i.MX 6UL Processor, DIO (2-in/2-out), 4 AI Channels (16-bit, 100 S/s, ±20mA) and 2 PCIe Mini Card Slots. Designed for extended operating temperature range of -40°C to +70°C
● RISC-based (i.MX 6UltraLite) processor 528 MHz
● 512MB DDR3 SDRAM onboard
● 8GB eMMC flash onboard
● 2 PCI Express Mini Card slots (Wi-Fi, 3G/4G or LoRa)
● 4 isolated analog input channels (16-bit, 100 S/s, ±20mA )
● 1 isolated COM port ● 1 isolated DIO (2-in/2-out)
● Embedded Linux operating system (Yocto)
● Wide operating temperature range from -40°C to +70°C
● Supports LabVIEW versions later than 2016
● Supports OPC UA
| Brand | Axiomtek | ||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
||||||||||||||||||||||||||||||||||||||||||||||||||
| Description |
Robust RISC-based DIN-rail Fanless Embedded System with i.MX 6UL Processor, DIO (2-in/2-out), 4 AI Channels (16-bit, 100 S/s, ±20mA) and 2 PCIe Mini Card Slots. Designed for extended operating temperature range of -40°C to +70°C
● RISC-based (i.MX 6UltraLite) processor 528 MHz ● 512MB DDR3 SDRAM onboard ● 8GB eMMC flash onboard ● 2 PCI Express Mini Card slots (Wi-Fi, 3G/4G or LoRa) ● 4 isolated analog input channels (16-bit, 100 S/s, ±20mA ) ● 1 isolated COM port ● 1 isolated DIO (2-in/2-out) ● Embedded Linux operating system (Yocto) ● Wide operating temperature range from -40°C to +70°C ● Supports LabVIEW versions later than 2016 ● Supports OPC UA |
