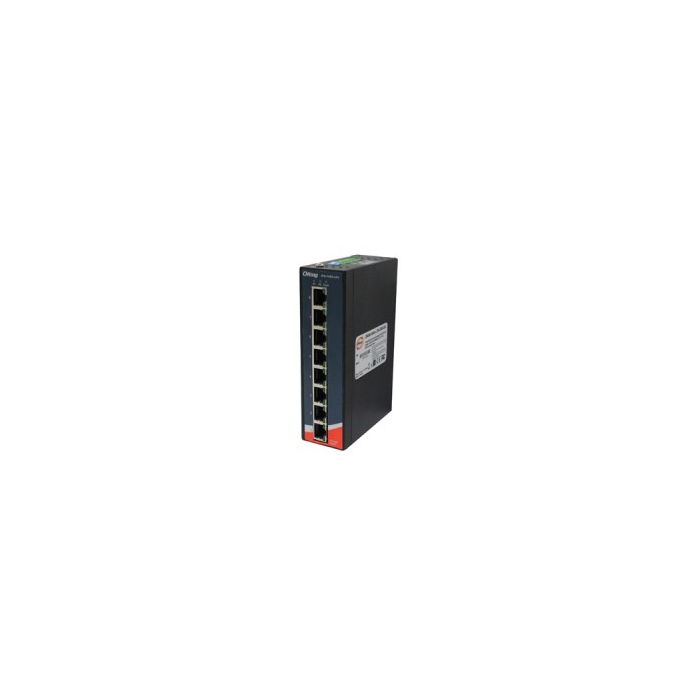

IPS-1080 8-port unmanaged PoE Ethernet switch

A$0.00

In stock

SKU

IPS-1080-xx

Industrial 8-port unmanaged PoE Ethernet switch with 8x10/100Base-T(X) P.S.E., 24VDC power input

Provide 8x10/100Base-T(X) PoE (P.S.E.) ports
Supports IEEE 802.3at compliant PoE and total power budget is 120Watts with maximum 30Watts per port
Advanced PoE power boost technology to support dual 24VDC power inputs
Support auto-negotiation and auto-MDI/MDI-X
Support store and forward transmission
Support flow control
Warning system by relay output
Rigid IP-30 housing design
DIN-Rail and wall mounting enabled

Specifications

Physical Ports
10/100Base-T(X) Ports in RJ45 Auto MDI/MDIX with P.S.E.	8
Technology
Ethernet Standards	IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX IEEE 802.3x for Flow control IEEE 802.3at PoE specification (total power budget is 120Watts with maximum 30Watts per port)
MAC Table	2048 MAC addresses
Processing	Store-and-Forward
LED Indicators
Power Indicator	Green : Power LED x 2
Fault Indicator	Amber : Indicate PWR1 or PWR2 failure
10/100Base-T(X) RJ45 Port Indicator and PoE indicator	Green for port Link/Act. Green for PoE power injected.
Fault Contact
Relay	Relay output to carry capacity of 1A at 24VDC
Power
Redundant Input Power	Dual DC inputs. 24~36VDC on 6-pin terminal block.
Power Consumption (Typ.)	4.32 Watts (PoE output not included)
Overload Current Protection	Present
Reverse Polarity Protection	NOT Present
Physical Characteristics
Enclosure	IP-30
Dimensions (W x D x H)	41 (W) x 94.9 (D) x 144.3(H) mm (1.61 x 3.74 x 5.68inch)
Weight (g)	555 g
Environmental
Storage Temperature	-40 to 85°C (-40 to 185°F)
Operating Temperature	-40 to 70°C (-40 to 158°F)
Operating Humidity	5% to 95% Non-condensing
Regulatory Approvals
EMI	FCC Part 15, CISPR (EN55022) class A
EMS	IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8, IEC61000-4-11
Shock	IEC60068-2-27
Free Fall	IEC60068-2-32
Vibration	IEC60068-2-6
Safety	EN60950-1
Warranty	5 years

Description

Provide 8x10/100Base-T(X) PoE (P.S.E.) ports
Supports IEEE 802.3at compliant PoE and total power budget is 120Watts with maximum 30Watts per port
Advanced PoE power boost technology to support dual 24VDC power inputs
Support auto-negotiation and auto-MDI/MDI-X
Support store and forward transmission
Support flow control
Warning system by relay output
Rigid IP-30 housing design
DIN-Rail and wall mounting enabled
