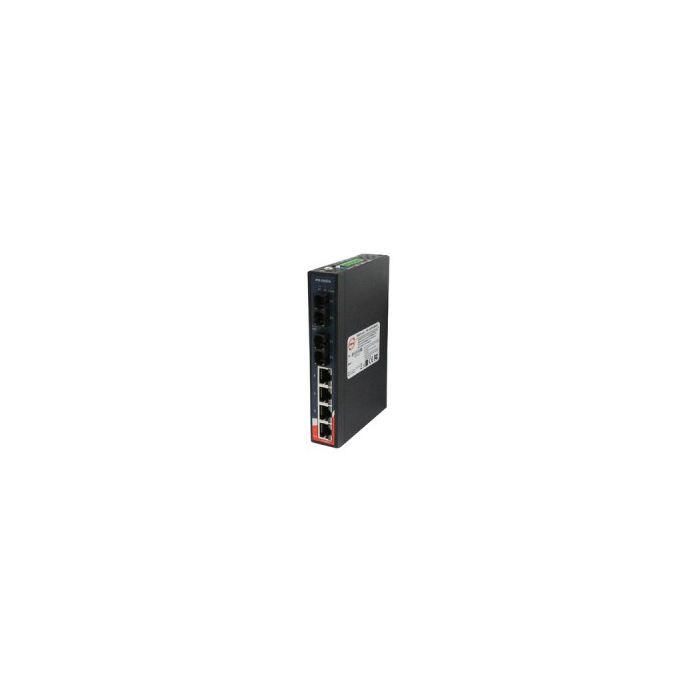

IPS-1042F 6-port unmanaged PoE Ethernet switch
Industrial 6-port slim type unmanaged PoE Ethernet switch with 4x10/100Base-T(X) P.S.E. and 2x100Base-FX, multi-mode, 2Km/1310nm, SC connector
- IPS-1042FA series provide 4x10/100Base-T(X) PoE(P.S.E.) and 2x100Base-FX single/multi-mode fiber ports
- Supports IEEE 802.3at compliant 30Watts PoE per port
- Support auto-negotiation and auto-MDI/MDI-X
- Support store and forward transmission
- Support flow control
- Support surge protection technology
- Warning system by relay output
- Slim type rigid IP-30 housing design
- DIN-Rail and wall mounting enabled
More Information
| Specifications |
| Physical Ports |
|
|
10/100 Base-T(X) Ports in RJ45 Auto MDI/MDIX with P.S.E.
|
4 |
| Fiber Ports Number |
2 |
2 |
| Fiber Ports standard |
100Base-FX |
100Base-FX |
| Fiber Mode |
Multi-mode |
Single-mode |
| Fiber Diameter (μm) |
62.5/125 μm & 50/125 μm |
9/125 μm |
| Fiber Optical Connector |
SC |
SC |
| Typical Distance (km) |
2 km |
30 km |
| Wavelength (nm) |
1310 nm |
1310 nm |
| Max. Output Optical Power(dBm) |
-14 dBm |
-8 dBm |
| Min. Output Optical Power(dBm) |
-23.5 dBm |
-15 dBm |
|
Max. Input Optical Power(Saturation)
|
0 dBm |
0 dBm |
| Min. Input Optical Power(Sensitivity) |
-31 dBm |
-34 dBm |
| Link Budget (dB) |
7.5 dB |
19 dB |
| Technology |
|
| Ethernet Standards |
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-T(X) and 100Base-FX
IEEE 802.3x for Flow control
IEEE 802.3at PoE specification
|
| MAC Table |
2048 MAC addresses |
| Processing |
Store-and-Forward |
| LED Indicators |
|
| Power Indicator |
Green : Power LED x 2 |
| Fault Indicator |
Amber : Indicate PWR1 or PWR2 failure |
| 10/100Base-T(X) RJ45 Port Indicator |
Green for port Link/Act.
Green for PoE power injected.
|
| 100Base-FX Fiber Port Indicator |
Green for port Link/Act. |
| Fault Contact |
|
| Relay |
Relay output to carry capacity of 1A at 24VDC |
| Power |
|
| Redundant Input Power |
Dual DC inputs. 50~57VDC on 6-pin terminal block. |
| Power Consumption (Typ.) |
6.78 Watts
(power consumption of P.S.E. is not included)
|
5.6 Watts
(power consumption of P.S.E. is not included)
|
| Overload Current Protection |
Present |
| Reverse Polarity Protection |
NOT Present |
| Physical Characteristics |
|
| Enclosure |
IP-30 |
| Dimensions (W x D x H) |
26.1(W) x 94.9(D) x 144.3(H) mm (1.03 x 3.74 x 5.68 inch.) |
| Weight (g) |
395 g |
| Environmental |
|
| Storage Temperature |
-40 to 85°C (-40 to 185°F) |
| Operating Temperature |
-40 to 70°C (-40 to 158°F) |
| Operating Humidity |
5% to 95% Non-condensing |
| Regulatory Approvals |
|
| EMI |
FCC Part 15, CISPR (EN55022) class A |
| EMS |
IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8, IEC61000-4-11 |
| Shock |
IEC60068-2-27 |
| Free Fall |
IEC60068-2-32 |
| Vibration |
IEC60068-2-6 |
| Safety |
EN60950-1 |
| Warranty |
5 years |
|
| Description |
- IPS-1042FA series provide 4x10/100Base-T(X) PoE(P.S.E.) and 2x100Base-FX single/multi-mode fiber ports
- Supports IEEE 802.3at compliant 30Watts PoE per port
- Support auto-negotiation and auto-MDI/MDI-X
- Support store and forward transmission
- Support flow control
- Support surge protection technology
- Warning system by relay output
- Slim type rigid IP-30 housing design
- DIN-Rail and wall mounting enabled
|
