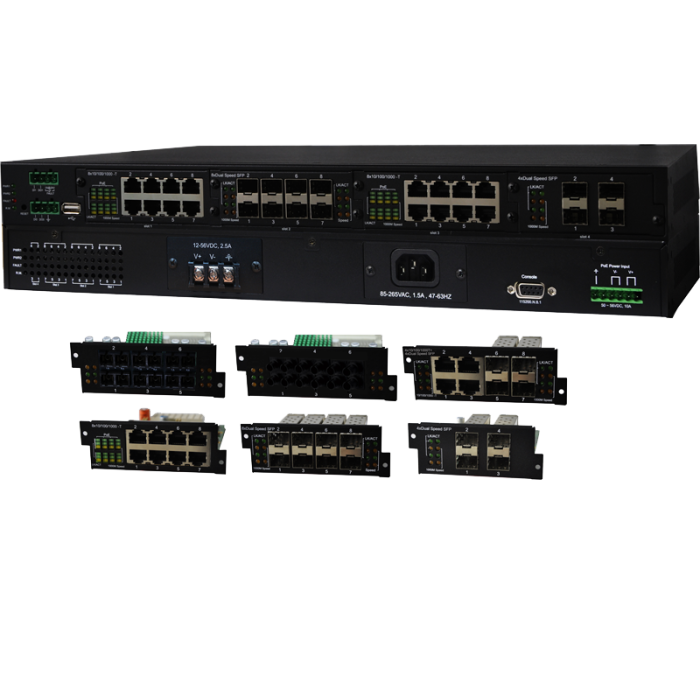

IPGS-5400-2P - 28 port managed switch

_{IEEE Standards}

_{IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Ethernet
IEEE 802.3ab 1000Base-TX Ethernet
IEEE 802.3z 1000Base-X Ethernet
IEEE 802.3x Flow Control Capability
ANSI/IEEE 802.3 Auto-negotiation
IEEE 802.1Q VLAN
IEEE 802.1p Class of Service
IEEE 802.1X Access Control
IEEE 802.1D Spanning Tree
IEEE 802.1w Rapid Spanning Tree
IEEE 802.1s Multiple Spanning Tree
IEEE 802.3ad Link Aggregation Control Protocol (LACP)
IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
IEEE 802.1x User Authentication (Radius)
IEEE 1588 Precision Time Protocol v2
IEEE 802.3at/af PoE}

_{Switch Architecture}

_{Back-plane (Switching Fabric): 56Gbps
Packet throughput ability (Full-Duplex): 71.43Mpps @64bytes}

_{Transfer Rate}

_{14,880pps for Ethernet port
148,800pps for Fast Ethernet port
1,488,000pps for Gigabit Ethernet port}

_CPU

_{Marvell 800Mhz}

_RAM

_{256M Byte}

_Flash

_{128M Byte}

_{Mac Address}

_{16K MAC address table}

_{Jumbo frame*}

_{9KB on all ports}

_Connectors

_{Max. 28 10/100/1000T RJ-45 with auto MDI/MDI-X function
Max 28 100M Mini-GBIC : SFP sockets
Max 28 1000M Mini-GBIC : SFP sockets
RS-232 console: Female DB-9
USB for automatic backup and edited restoration configuration}

_Protocol

_CSMA/CD

_LED

_{Per unit: Power 1 (Green), Power 2 (Green), Alarm (Red) ,R.M (Green)
Link/Activity (Green), Full duplex/collision(Yellow)), MINI GBIC (Link/Activity )(Green)}

_{Power Supply}

_{IGS-5400-2P: 1 built-in power + 1 optional power
IPGS-5400-2P: 1 built-in power + 1 optional power + 1 PoE power}

1. _{VAC/VDC isolated 4000V 85V~265VAC/100~370VDC}

2. _{VDC isolated 1600V 36~75VDC}

3. _12V~56VDC

4. _{PoE power input 45~56VDC (55V input is recommended for 802.3at 30W applications)(IPGS-5400-2P)}

_{Power Consumption}

_{Full load: 30W/ Unload: 13W}

_{PoE Budget}

_{Max. 720W with dual 48VDC input}

_{Relay Alarm}

_{Provides one relay output for port breakdown, power fail and alarm.
Alarm Relay current carry ability: 1A @ DC24V}

_DI/DO

_{2 Digital Input (DI) :
Level 0: -30~2V / Level 1: 10~30V
Max. input current:8mA
2 Digital Output(DO): Open collector to 40 VDC, 200mA}

_{Case Dimension}

_{19” Metal case,IP-30; 440mm(W)x325mm(D)x44mm(H)}

_{Operating Humidity}

_{5%~95% (Non-condensing)}

_{Operating Temperature}

_{Standard: -20°C ~60°C
Extended temperature : -40°C ~75°C
PoE module : -20°C ~60°C}

_{Storage Temperature}

_{-40°C ~85°C}

_EMI

_{FCC Class A, CE EN61000-4-2 (ESD),
CE EN61000-4-3 (RS), CE EN-61000-4-4 (EFT),
CE EN61000-4-5 (Surge), CE EN61000-4-6 (CS),
CE EN61000-4-8, CE EN61000-4-11,
CE EN61000-4-12, CE EN61000-6-2,
CE EN61000-6-4}

_MTBF

_245,432hrs

_{Stability Testing}

_{IEC60068-2-32 (Free fall), IEC60068-2-27 (Shock), IEC60068-2-6 (Vibration), IEC60870-2-2, IEC60068-2-30}

_Warranty

_{5 years}
