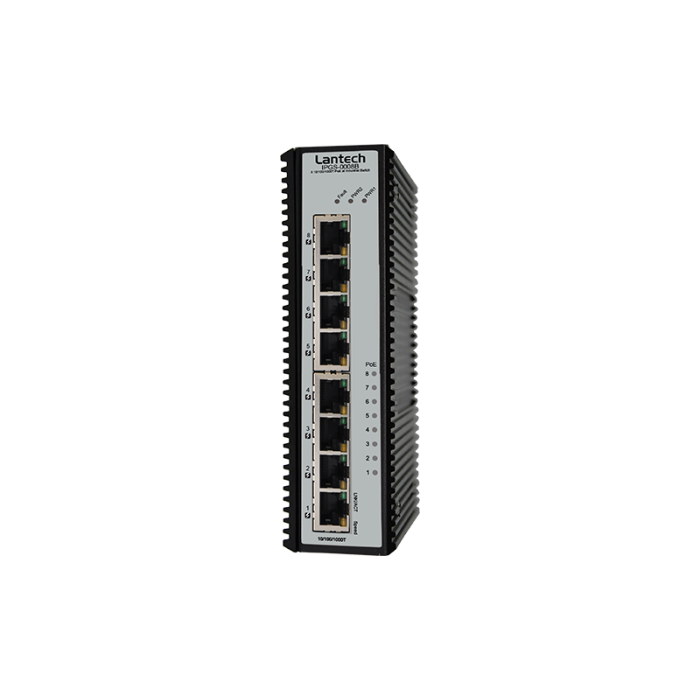

IPGS-0008B - 8 port unmanaged switch

Standards

IEEE802.3 10Base-T Ethernet
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T Ethernet
IEEE802.3x Flow Control and Back Pressure
IEEE802.3at/af Power over Ethernet

Switch Architecture

Back-plane (Switching Fabric): 16Gbps

Transfer Rate

14,880pps for Ethernet port
148,800pps for Fast Ethernet port
1,488,000pps for Gigabit Ethernet port

Mac Address

16K MAC address table

Jumbo frame

10KB

Connectors

10/100/1000T: 8 x ports RJ-45 with Auto MDI/MDI-X function
Power & P-Fail connector: 1 x 6-pole terminal block

Network Cable

10Base-T: 2-pair UTP/STP Cat. 3, 4, 5/ 5E/ 6 cable
EIA/TIA-568 100-ohm (100m)
100Base-TX: 2-pair UTP/STP Cat. 5/ 5E/ 6 cable
EIA/TIA-568 100-ohm (100m)
1000Base-TX: 2-pair UTP/STP Cat. 5/ 5E/ 6 cable
EIA/TIA-568 100-ohm (100m)

LED

Per unit: Power 1 (Green), Power 2 (Green), P-Fail (Red);
Ethernet port: Link/Activity (Green), Speed (Amber);
PoE : Active (Green)

Operating Humidity

5% ~ 95% (Non-condensing)

Operating Temperature

-20°C~60°C / -4°F~140°F (Standard model)
-40°C~75°C / -40°F~167°F(-E model)

Storage Temperature

-40°C~85°C / -40°F~185°F

Power Supply

45~56VDC(48V model); 9V~56VDC(12V model)

PoE Budget

240W for 45~56V input(48V model)
80W at 12V input; 120W at 24V input(12V model)

PoE pin assignment

RJ-45 port # 1~#8 support IEEE 802.3at/af End-point, Alternative A mode. Per port provides up to 30W.
Positive (VCC+): RJ-45 pin 1,2
Negative (VCC-): RJ-45 pin 3,6

Power Consumption

5W

Galvanic Isolation

Between power input and case ground
Between Ethernet port and case ground

Case Dimension

Metal case. IP-30,
43 (W) x 105 (D) x 152 (H) mm

Weight

900 g

Installation

DIN Rail and Wall Mount** Design

Relay Alarm

Provides one relay output for power fail and alarm.
Alarm Relay current carry ability: 1A @ DC24V

EMI & EMS

FCC Class A,
CE EN55032 Class A, CE EN55024, EN61000-6-2 (CE EN61000-4-2, CE EN61000-4-3, CE EN61000-4-4, CE EN61000-4-5, CE EN61000-4-6, CE EN61000-4-8), CE EN61000-6-2

Stability Testing

IEC60068-2-32 (Free fall), IEC60068-2-27 (Shock),
IEC60068-2-6 (Vibration)

Vehicle certificate

E13 marking (-12V model)

MTBF

NA

Warranty

5 years
