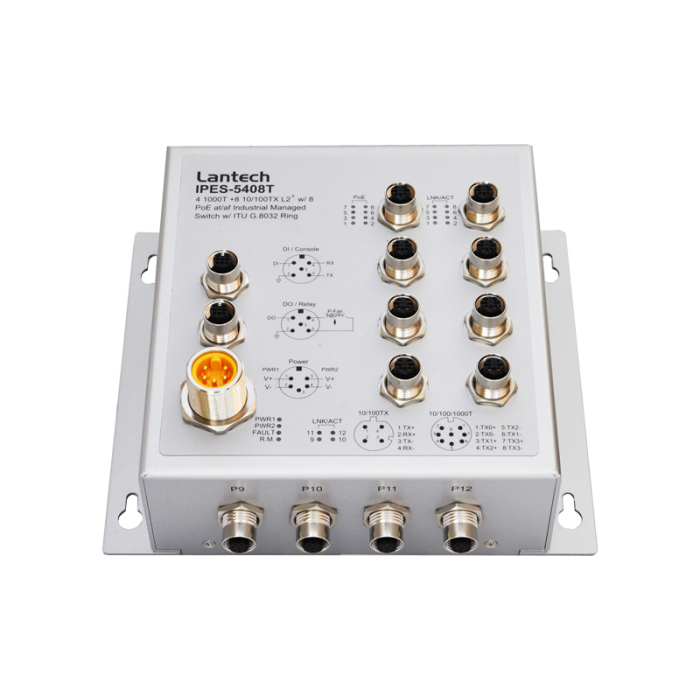

IPES-5408T

_Standards

_{IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX
IEEE802.3z Gigabit fiber
IEEE802.3x Flow Control and Back Pressure
IEEE802.3ad Port trunk with LACP
IEEE802.1d Spanning Tree
IEEE802.1w Rapid Spanning Tree
IEEE802.1s Multiple Spanning Tree
IEEE 802.3ad Link Aggregation Control Protocol (LACP)
IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
IEEE 802.1X User Authentication (Radius)
IEEE802.1p Class of Service
IEEE802.1Q VLAN Tag
IEEE802.3at/af Power over Ethernet}

_{Switch Architecture}

_{Back-plane (Switching Fabric): 9.6Gbps
Packet throughput ability (Full-Duplex): 23.8Mpps @64bytes}

_{Transfer Rate}

_{14,880pps for Ethernet port
148,800pps for Fast Ethernet port
1,488,000pps for Gigabit Fiber Ethernet port}

_CPU

_{Marvell 800Mhz}

_RAM

_{256M Byte}

_Flash

_{128M Byte}

_{Mac Address}

_{16K MAC address table}

_{Jumbo frame}

_{9KB on all ports}

_Connectors

_{10/100TX: 8 x ports M12 4-pole D-coded with Auto MDI/MDI-X function
10/100/1000T: 4 x ports M12 8-pole A-coded with Auto MDI/MDI-X function
RS-232 connector: 1 x M12 5-pole A-coded
Power Input connector : 1 x M23 5-pole A-coded
Relay contact : 1 x M12 5-pole A-coded}

_{Network Cable}

_{10Base-T: 2-pair UTP/STP Cat. 3, 4, 5/ 5E/ 6 cable
EIA/TIA-568 100-ohm (100m)
100Base-TX: 2-pair UTP/STP Cat. 5/ 5E/ 6 cable
EIA/TIA-568 100-ohm (100m)
1000Base-TX: 2-pair UTP/STP Cat. 5/ 5E/ 6 cable
EIA/TIA-568 100-ohm (100m)}

_{Bypass Protection**}

_{High-speed optical switching (<4ms)
Minimal insertion loss (Max 1.6dB as Bypass Mode)}

_Protocol

_CSMA/CD

_LED

_{Per unit: Power 1 (Green), Power 2 (Green), P-Fail (Red)
Ethernet port: Link/Activity (Green), Speed (Green);}

_DI/DO

_{1 Digital Input (DI) :
Level 0: -30~2V / Level 1: 10~30V
Max. input current:8mA
1 Digital Output(DO): Open collector to 40 VDC, 200mA}

_{Operating Humidity}

_{5% ~ 95% (Non-condensing)}

_{Operating Temperature}

_{-40°C~75°C / -40°F~167°F
(72V model: -40°C~60°C / -40°F~140°F)}

_{Storage Temperature}

_{-40°C~85°C / -40°F~185°F}

_{Power Supply}

_{45~56VDC on standard model
9.5~56VDC on 12V model
50.4~90VDC on 72V model
43~160VDC on 110V model with input isolation}

_{PoE Budget}

_{240W for 45~56V input
(55V input is recommended for 802.3at 30W applications)
80W for 12V input
120W for 24V input
80W for 72V Input
80W for 110V Input}

_{PoE pin assignment}

_{M12 port # 1~#8 support IEEE 802.3at/af End-point, Alternative A mode. Per port provides 30W PoE at/ 15W PoE af.}

_{Power Consumption}

_{Max. 13W 12V~48VDC input
Max. 16W 72/110VDC input}

_{Case Dimension}

_{IP67 model: Aluminum case
215mm(W)x200mm(H)x84.4mm(D)}

_{IP43 model: Aluminum case
203mm(W)x187mm(H)x84.4mm(D)}

_Weight

_{1.4kgs (IP67); 1.2kgs(IP43)}

_Installation

_{DIN Rail** and Wall Mount Design}

_{EMI & EMS}

_{FCC Class A,
CE EN61000-6-2, CE EN61000-6-4, CE EN61000-4-2, CE EN61000-4-3, CE EN61000-4-4, CE EN61000-4-5, CE EN61000-4-6, CE N61000-4-8, EN61000-4-11}

_{Stability Testing}

_{IEC60068-2-32 (Free fall), EN61373 (Shock and Vibration)}

_MTBF

_{229,174 hrs}

_{Certifications& report}

_{EN50155/EN50121-3-2/EN50121-4 Certificate
ISO 7637** report
EN45545-2 R24/R25 (EN ISO 4589-2, EN ISO 5659-2, NF X70-100-1 & 2) Fire & Smoke Certificate}

_Warranty

_{5 years}
