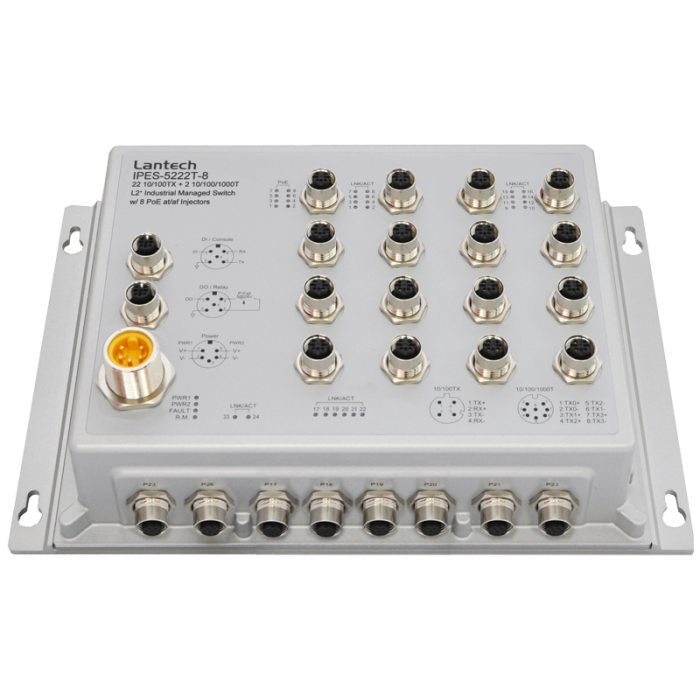

IPES-5222T-8

A$0.00

In stock

SKU

IPES-5222T-8

Model Code: IPES-5222T-8

- EN50155/61373/45545-2 certified; Optional 12V / 72V input voltage
- Up to 8x PoE 10/100TX at/af ports w/PoE management
- Enhanced G.8032 ring protection < 20ms with easy configuration; Train ring for dynamic coupling ring; Aggregation ring*

Details

_Standards	_{IEEE 802.3 10Base-T Ethernet} _{IEEE 802.3u 100Base-TX} _{IEEE 802.3ab 1000BaseT} _{IEEE802.3x Flow Control and Back Pressure} _{IEEE802.3ad Port trunk with LACP} _{IEEE802.1d Spanning Tree} _{IEEE802.1w Rapid Spanning Tree} _{IEEE802.1s Multiple Spanning Tree} _{IEEE 802.3ad Link Aggregation Control Protocol (LACP)} _{IEEE 802.1AB Link Layer Discovery Protocol (LLDP)} _{IEEE 802.1X User Authentication (Radius)} _{IEEE802.1p Class of Service} _{IEEE802.1Q VLAN Tag} _{IEEE802.3at/af PoE}
_{Switch Architecture}	_{Back-plane (Switching Fabric):8.4Gbps} _{Packet throughput ability (Full-Duplex): 23.8Mpps @64bytes}
_{Transfer Rate}	_{14,880pps for Ethernet port} _{148,800pps for Fast Ethernet port} _{1,488,000pps for Gigabit Fiber Ethernet port}
_CPU	_{Marvell 800Mhz}
_RAM	_{256M Byte}
_Flash	_{128M Byte}
_{Mac Address}	_{16K MAC address table}
_{Jumbo frame}	_{9KB on all ports}
_Connector	_{10/100TX: 22 x M12 4-pole D-coded with auto MDI/MDI-X function} _{10/100/1000T: 2 x M12 8-pole A-coded with auto} _{MDI/MDI-X function} _{RS-232 connector: 1 x M12 5-pole A-coded} _{Power Input connector : 1 x M23 5-pole A-coded} _{Relay contact : 1 x M12 5-pole A-coded}
_{Network Cable}	_{10Base-T: 2-pair UTP/STP Cat. 3, 4, 5 cable} _{EIA/TIA-568 100-ohm (100m)} _{100Base-TX: 2-pair UTP/STP Cat. 5/ 5E cable} _{EIA/TIA-568 100-ohm (100m)}
_Protocol	_CSMA/CD
_{PoE Budget}	_{240W for 45~56V input} _{(55V input is recommended for 802.3at 30W applications)} _{120W for 12V input} _{120W for 72V Input}
_{PoE pin assignment}	_{M12 port # 1~#8 support IEEE 802.3at/af End-point, Alternative A mode. Per port provides 30W PoE at/ 15W PoE af.}
_{Bypass Protection**}	_{High-speed optical switching (<4ms)} _{Minimal insertion loss (Max 1.6dB as Bypass Mode)}
_LED	_{Per unit: Power 1 (Green), Power 2 (Green), P-Fail (Red)} _{Ethernet port: Link/Activity (Green), Speed (Green); GigaT: Link/Activity (Green)}
_{DI / DO}	_{1 Digital Input (DI) :} _{Level 0: -30~2V / Level 1: 10~30V} _{Max. input current:8mA} _{1 Digital Output(DO): Open collector to 40 VDC, 200mA}
_{Operating Humidity}	_{5% ~ 95% (Non-condensing)}
_{Operating Temperature}	_{-40°C~75°C / -40°F~167°F}
_{Storage Temperature}	_{-40°C~85°C / -40°F~185°F}
_{Power Supply}	_{Standard model:33.6~60VDC dual input} _{12V model: 9.5~60VDC dual input} _{72V model: 50.4~90VDC dual input}
_{Power Consumption}	_{Max. 13W 12V~48VDC input} _{Max. 16W 72VDC}
_{Case Dimension}	_{IP67 model: Aluminum case} _{285mm(W)x201.4mm(H)x77.6mm(D)}
_Weight	_2.1kgs(IP67)
_Installation	_{DIN Rail** and Wall Mount Design}
_{EMI & EMS}	_{FCC Class A,} _{CE EN61000-6-2, CE EN61000-6-4, CE EN61000-4-2, CE EN61000-4-3, CE EN61000-4-4, CE EN61000-4-5, CE EN61000-4-6, CE N61000-4-8, EN61000-4-11}
_{Stability Testing}	_{IEC60068-2-32 (Free fall), EN61373 (Shock and Vibration)}
_MTBF	_n/a
_{Certifications& report}	_{EN50155/EN50121-3-2/EN50121-4 Certificate} _{EN45545-2 R24/R25 (EN ISO 4589-2, EN ISO 5659-2, NF X70-100-1 & 2) Fire & Smoke Certificate}
_Warranty	_{5 years}

More Information

Description

_Standards	_{IEEE 802.3 10Base-T Ethernet} _{IEEE 802.3u 100Base-TX} _{IEEE 802.3ab 1000BaseT} _{IEEE802.3x Flow Control and Back Pressure} _{IEEE802.3ad Port trunk with LACP} _{IEEE802.1d Spanning Tree} _{IEEE802.1w Rapid Spanning Tree} _{IEEE802.1s Multiple Spanning Tree} _{IEEE 802.3ad Link Aggregation Control Protocol (LACP)} _{IEEE 802.1AB Link Layer Discovery Protocol (LLDP)} _{IEEE 802.1X User Authentication (Radius)} _{IEEE802.1p Class of Service} _{IEEE802.1Q VLAN Tag} _{IEEE802.3at/af PoE}
_{Switch Architecture}	_{Back-plane (Switching Fabric):8.4Gbps} _{Packet throughput ability (Full-Duplex): 23.8Mpps @64bytes}
_{Transfer Rate}	_{14,880pps for Ethernet port} _{148,800pps for Fast Ethernet port} _{1,488,000pps for Gigabit Fiber Ethernet port}
_CPU	_{Marvell 800Mhz}
_RAM	_{256M Byte}
_Flash	_{128M Byte}
_{Mac Address}	_{16K MAC address table}
_{Jumbo frame}	_{9KB on all ports}
_Connector	_{10/100TX: 22 x M12 4-pole D-coded with auto MDI/MDI-X function} _{10/100/1000T: 2 x M12 8-pole A-coded with auto} _{MDI/MDI-X function} _{RS-232 connector: 1 x M12 5-pole A-coded} _{Power Input connector : 1 x M23 5-pole A-coded} _{Relay contact : 1 x M12 5-pole A-coded}
_{Network Cable}	_{10Base-T: 2-pair UTP/STP Cat. 3, 4, 5 cable} _{EIA/TIA-568 100-ohm (100m)} _{100Base-TX: 2-pair UTP/STP Cat. 5/ 5E cable} _{EIA/TIA-568 100-ohm (100m)}
_Protocol	_CSMA/CD
_{PoE Budget}	_{240W for 45~56V input} _{(55V input is recommended for 802.3at 30W applications)} _{120W for 12V input} _{120W for 72V Input}
_{PoE pin assignment}	_{M12 port # 1~#8 support IEEE 802.3at/af End-point, Alternative A mode. Per port provides 30W PoE at/ 15W PoE af.}
_{Bypass Protection**}	_{High-speed optical switching (<4ms)} _{Minimal insertion loss (Max 1.6dB as Bypass Mode)}
_LED	_{Per unit: Power 1 (Green), Power 2 (Green), P-Fail (Red)} _{Ethernet port: Link/Activity (Green), Speed (Green); GigaT: Link/Activity (Green)}
_{DI / DO}	_{1 Digital Input (DI) :} _{Level 0: -30~2V / Level 1: 10~30V} _{Max. input current:8mA} _{1 Digital Output(DO): Open collector to 40 VDC, 200mA}
_{Operating Humidity}	_{5% ~ 95% (Non-condensing)}
_{Operating Temperature}	_{-40°C~75°C / -40°F~167°F}
_{Storage Temperature}	_{-40°C~85°C / -40°F~185°F}
_{Power Supply}	_{Standard model:33.6~60VDC dual input} _{12V model: 9.5~60VDC dual input} _{72V model: 50.4~90VDC dual input}
_{Power Consumption}	_{Max. 13W 12V~48VDC input} _{Max. 16W 72VDC}
_{Case Dimension}	_{IP67 model: Aluminum case} _{285mm(W)x201.4mm(H)x77.6mm(D)}
_Weight	_2.1kgs(IP67)
_Installation	_{DIN Rail** and Wall Mount Design}
_{EMI & EMS}	_{FCC Class A,} _{CE EN61000-6-2, CE EN61000-6-4, CE EN61000-4-2, CE EN61000-4-3, CE EN61000-4-4, CE EN61000-4-5, CE EN61000-4-6, CE N61000-4-8, EN61000-4-11}
_{Stability Testing}	_{IEC60068-2-32 (Free fall), EN61373 (Shock and Vibration)}
_MTBF	_n/a
_{Certifications& report}	_{EN50155/EN50121-3-2/EN50121-4 Certificate} _{EN45545-2 R24/R25 (EN ISO 4589-2, EN ISO 5659-2, NF X70-100-1 & 2) Fire & Smoke Certificate}
_Warranty	_{5 years}

Reviews

Write Your Own Review

Downloads

Product Data Sheet

IPES-5222T-8

Standards

Switch Architecture

Back-plane (Switching Fabric):8.4Gbps Packet throughput ability (Full-Duplex): 23.8Mpps @64bytes

Transfer Rate

14,880pps for Ethernet port 148,800pps for Fast Ethernet port 1,488,000pps for Gigabit Fiber Ethernet port

CPU

Marvell 800Mhz

RAM

256M Byte

Flash

128M Byte

Mac Address

16K MAC address table

Jumbo frame

9KB on all ports

Connector

10/100TX: 22 x M12 4-pole D-coded with auto MDI/MDI-X function 10/100/1000T: 2 x M12 8-pole A-coded with auto MDI/MDI-X function RS-232 connector: 1 x M12 5-pole A-coded Power Input connector : 1 x M23 5-pole A-coded Relay contact : 1 x M12 5-pole A-coded

Network Cable

10Base-T: 2-pair UTP/STP Cat. 3, 4, 5 cable EIA/TIA-568 100-ohm (100m) 100Base-TX: 2-pair UTP/STP Cat. 5/ 5E cable EIA/TIA-568 100-ohm (100m)

Protocol

CSMA/CD

PoE Budget

240W for 45~56V input (55V input is recommended for 802.3at 30W applications) 120W for 12V input 120W for 72V Input

PoE pin assignment

M12 port # 1~#8 support IEEE 802.3at/af End-point, Alternative A mode. Per port provides 30W PoE at/ 15W PoE af.

Bypass Protection**

High-speed optical switching (<4ms) Minimal insertion loss (Max 1.6dB as Bypass Mode)

LED

Per unit: Power 1 (Green), Power 2 (Green), P-Fail (Red) Ethernet port: Link/Activity (Green), Speed (Green); GigaT: Link/Activity (Green)

DI / DO

1 Digital Input (DI) : Level 0: -30~2V / Level 1: 10~30V Max. input current:8mA 1 Digital Output(DO): Open collector to 40 VDC, 200mA

Operating Humidity

5% ~ 95% (Non-condensing)

Operating Temperature

-40°C~75°C / -40°F~167°F

Storage Temperature

-40°C~85°C / -40°F~185°F

Power Supply

Standard model:33.6~60VDC dual input 12V model: 9.5~60VDC dual input 72V model: 50.4~90VDC dual input

Power Consumption

Max. 13W 12V~48VDC input Max. 16W 72VDC

Case Dimension

IP67 model: Aluminum case 285mm(W)x201.4mm(H)x77.6mm(D)

Weight

2.1kgs(IP67)

Installation

DIN Rail** and Wall Mount Design

EMI & EMS

FCC Class A, CE EN61000-6-2, CE EN61000-6-4, CE EN61000-4-2, CE EN61000-4-3, CE EN61000-4-4, CE EN61000-4-5, CE EN61000-4-6, CE N61000-4-8, EN61000-4-11

Stability Testing

IEC60068-2-32 (Free fall), EN61373 (Shock and Vibration)

MTBF

n/a

Certifications& report

EN50155/EN50121-3-2/EN50121-4 Certificate EN45545-2 R24/R25 (EN ISO 4589-2, EN ISO 5659-2, NF X70-100-1 & 2) Fire & Smoke Certificate

Warranty

5 years
