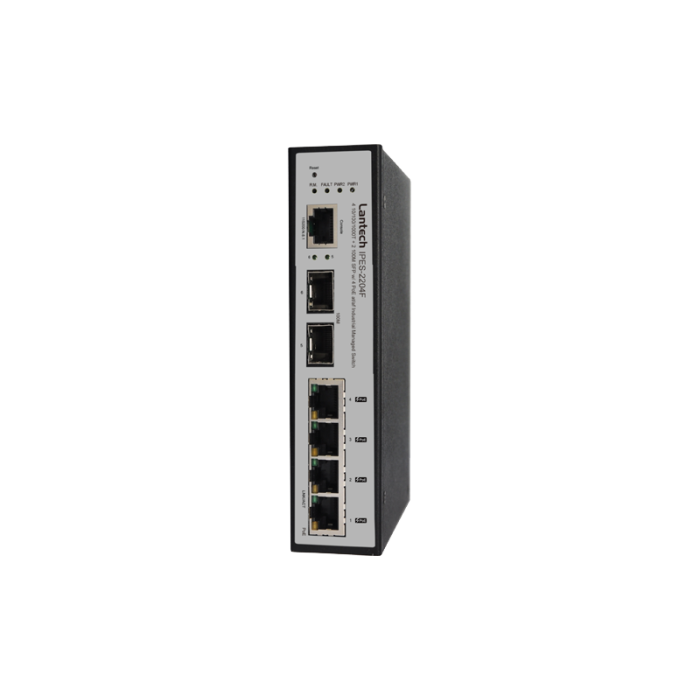

IPES-2204F - 6 port smart switch

_Standards

_{IEEE 802.3 for 10Base-T,
IEEE 802.3u for 100Base-T(X) and 100Base-FX,
IEEE 802.3x for Flow control
IEEE 802.1D for STP
IEEE 802.1w for RSTP
IEEE 802.1AB for LLDP}

_Connectors

_{10/100TX: 4 x RJ-45 with auto MDI/MDI-X function
2 x 100Base-FX SFP Port}

_{Mac Address}

_{2048 MAC addresses}

_{Switch Properties}

_{Switching bandwidth: 1.2Gbps}

_Processing

_{Store-and-Forward}

_Management

_{SNMP v1 v2c, v3/ Web}

_{Security Features}

_{Enable/disable port VLAN to segregate and secure network traffic}

_{Spanning Tree}

_{Supports STP/RSTP (IEEE 802.1D/w)}

_SMTP

_{SMTP Server and 6 e-mail accounts for receiving event alert}

_SNTP

_{SNTP to synchronize system clock in Internet}

_{SNMP trap}

_Available

_{System Event Log}

_{Log Server/ SMTP / SNMP trap}

_Pro-Ring

_{Pro-Ring2se covers Single Ring Topology. Pro-Ring provides a recovery time of less than 10ms for up to 50 switches}

_{Firmware upgrade}

_{TFTP/HTTP firmware upgradable}

_{Port Control & Security}

_{Port configuration, status, statistics, monitoring, security}

_{Able to set the state, speed/duplex, flow control, and security of the port}

_DHCP

_{DHCP Client}

_VLAN

_{Port Based}

_DNS

_{Provide DNS client feature support Primary and Secondary DNS server}

_{Input Power}

_{46~56VDC; 54V for PoE at
9.6~60VDC for 12V model}

_{PoE Budget}

_{80W for 12V input; 120W for 24V/48V/54V input}

_{Power Consumption (Typ.)}

_{3 Watts Max.}

_{Overload Current Protection}

_Present

_LED

_{Power Indicator
Green LED x 2
10/100Base-T(X) RJ45 port indicator
Green for port Link/Act. Amber for Duplex/Collision
100Base-FX SFP port indicator
Green for port Link/Act
R.M. indicator
Green : Indicate system operated in Pro-Ring Master mode
Pro-Ring indicator
Green : Indicate port operated in Pro-Ring mode
Fault indicator
Amber : Indicate unexpected event occurred}

_Enclosure

_IP-30

_{Case Dimension}

_{IP-30,
12V model: 43(W) x 105(D) x 152(H) mm
48V model: 35(W) x 105(D) x 152(H) mm}

_{Operating Humidity}

_{5% to 95% Non-condensing}

_{Operating Temperature}

_{-20°C~60°C / -4°F~140°F (Standard model)
-40°C~70°C / -40°F~158°F (-E model)}

_{Storage Temperature}

_{-40°C~85°C / -40°F~185°F}

_EMI

_{FCC Part 15, CISPR (EN55022) class A}

_EMS

_{EN61000-4-2 (ESD),
EN61000-4-3 (RS),
EN61000-4-4 (EFT),
EN61000-4-5 (Surge),
EN61000-4-6 (CS),
EN61000-4-8,
EN61000-4-11}

_{Stability Testing}

_{IEC60068-2-32 (Free fall)
IEC60068-2-27 (Shock)
IEC60068-2-6 (Vibration)}

_Warranty

_{5 years}
