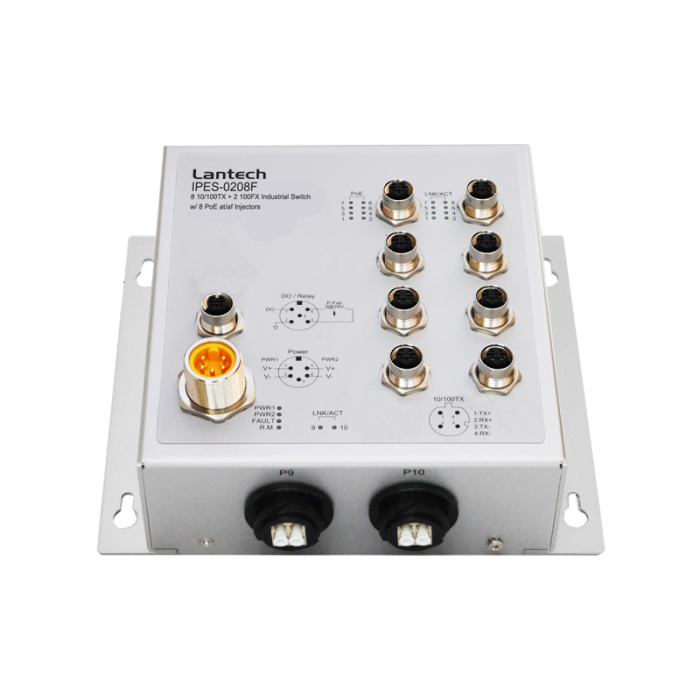

IPES-0208F

A$0.00

In stock

SKU

IPES-0208F

Model Code: IPES-0208F

- EN50155/ E-Mark certificate
- Provides M12 connector with IP67 / 43 rated protection
- IEEE802.3at/af up to 30W PoE output

Details

_{IEEE Standard}	_{IEEE802.3 10BASE-T Ethernet} _{IEEE802.3u 100BASE-T Ethernet} _{IEEE802.3x Flow Control and Back Pressure} _{IEEE802.3at/af Power over Ethernet}
_{Transfer Rate}	_{14,880pps for Ethernet port} _{148,800pps for Fast Ethernet port}
_{Mac Address}	_{8K MAC address table}
_Connector	_{10/100T: 8 x M12, 4-pole D-coded, Female with auto MDI/MDI-X function} _{100M-FX : 2 x LC connector for single mode or multi mode type fiber cable} _{Power connector: 1 x M12, 5-pole A-coded, Male}
_{100M Optical Cable}	_{Multi-mode: 50/125um~62.5/125um} _{Single mode: 9/125um} _{Available distance: 2km (Multi-mode)/10km (Single-mode)} _{Wavelength: 850nm (Multi-mode)/850nm (Single-mode)}
_Protocol	_CSMA/CD
_LED	_{Per unit: Power 1 (Green), Power 2 (Green),} _{Ethernet: Link/Activity (Green)} _{100M FX: Link/Activity (Green)}
_{PoE pin assignment}	_{M12 port # 1~#8 support IEEE 802.3at/af End-point, Alternative A mode. Per port provides 30W PoE at/ 15W PoE af.}
_{Power Supply}	_{9.5~56VDC on standard model} _{50.4~90VDC on 72V model} _{43~160VDC on 110V model with input isolation}
_{Power Consumption}	_{10W for 12/24/48VDC} _{13.5W for 72V/110V}
_{Power Budget}	_{240W for 45~56V input} _{(55V input is recommended for 802.3at 30W applications)} _{80W for 12V input} _{120W for 24V input} _{80W for 72V Input} _{80W for 110V Input}
_{Operating Humidity}	_{5% to 95% (Non-condensing)}
_{Operating Temperature}	_{-40°C ~ 75°C (-40°F ~ 167°F)} _{(72V/110V model: -40°C~60°C / -40°F~140°F)}
_{Storage Temperature}	_{-40°C ~ 85°C (-40°F ~ 185°F)}
_{Case Dimension}	_{Aluminum case. IP-67,} _{215mm(W)x185mm(H)x71mm(D)} _{Aluminum case, IP-43} _{202mm(W)x172mm(H)x62.5mm(D)}
_Weight	_{1.4kgs (IP67); 1.2kgs(IP43)}
_Installation	_{Din Rail**, Wall Mount Design}
_EMC	_{FCC Class A,} _{CE EN61000-4-2 (ESD),} _{CE EN61000-4-3 (RS),} _{CE EN-61000-4-4 (EFT),} _{CE EN61000-4-5 (Surge),} _{CE EN61000-4-6 (CS),} _{CE EN61000-4-8 (Magnetic Field),} _{CE EN61000-6-2,} _{CE EN61000-6-4}
_{Stability Testing}	_{IEC61373 (Shock), EN61373 (Shock and Vibration)}
_{Certificates & report}	_{EN50155/EN50121-3-2/EN50121-4 Certificate} _{EN45545-2 R24/R25 (EN ISO 4589-2, EN ISO 5659-2, NF X70-100-1 & 2) Fire & Smoke Certificate} _{E-Mark E4 Certificate}
_Warranty	_{5 years}
