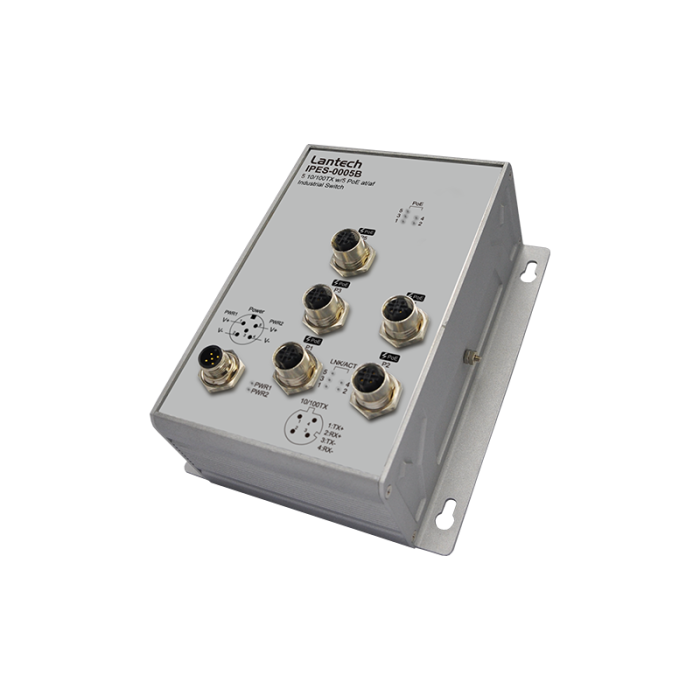

IEEE802.3 10BASE-T Ethernet IEEE802.3u 100BASE-T Ethernet IEEE802.3x Flow Control and Back Pressure IEEE802.3at/af Power over Ethernet
Transfer Rate
14,880pps for Ethernet port 148,800pps for Fast Ethernet port
Mac Address
8K MAC address table
Connector
10/100T: 5 x M12, 4-pole D-coded, Female with auto MDI/MDI-X function Power connector: 1 x M12, 5-pole A-coded, Male
Protocol
CSMA/CD
LED
Per unit: Power 1 (Green), Power 2 (Green), Ethernet: Link/Activity (Green)
PoE Pin Assignment
RJ-45 port # 1~#5 support IEEE 802.3af/at End-point, Alternative A mode. Per port provides 15.4W/30W ability. Positive (VCC+): RJ-45 pin 1,2. Negative (VCC-): RJ-45 pin 3,6.
Power Supply
Dual input 9.5~56VDC for PoE feeding (12V model) 50.4~90VDC for PoE feeding (72V model)
Power Consumption
10W for 12/24/48VDC 13.5W for 72V
Power Budget
80W for 12V input 120W for 24V input 80W for 72V Input
Operating Humidity
5% to 95% (Non-condensing)
Operating Temperature
-40°C ~ 75°C (-40°F ~ 167°F)
Storage Temperature
-40°C ~ 85°C (-40°F ~ 185°F)
Case Dimension
Aluminum case, IP-41 135mm(W)x165mm(H)x62mm(D)
Weight
700g
Installation
Din Rail**, Wall Mount Design
EMC
FCC Class A, CE EN61000-4-2 (ESD), CE EN61000-4-3 (RS), CE EN-61000-4-4 (EFT), CE EN61000-4-5 (Surge), CE EN61000-4-6 (CS), CE EN61000-4-8 (Magnetic Field), CE EN61000-6-2, CE EN61000-6-4
Stability Testing
IEC61373 (Shock), EN61373 (Shock and Vibration)
Certificates & Report
EN50155/EN50121-3-2/EN50121-4 Certificate EN45545-2 R24/R25 (EN ISO 4589-2, EN ISO 5659-2, NF X70-100-1 & 2) Fire & Smoke Certificate E-mark certificate
