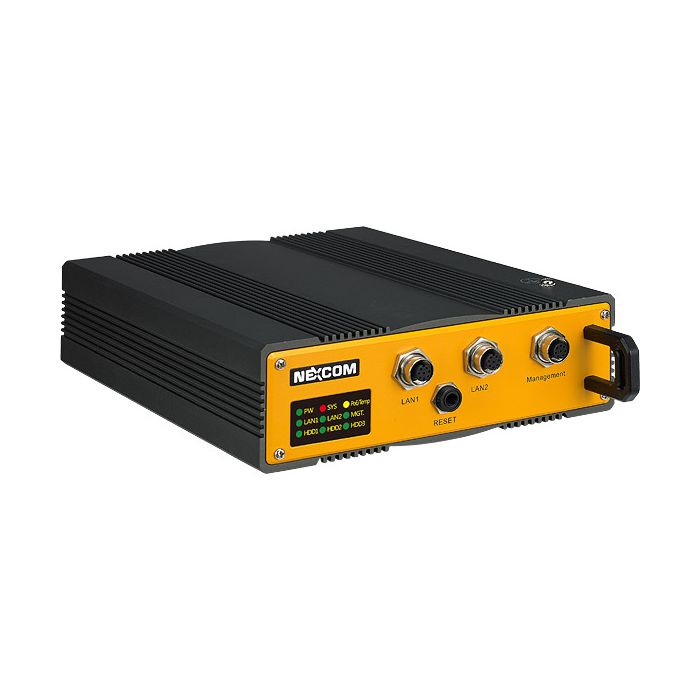

The iNAS330 is a network-attached storage (NAS) with a highly rugged design that was developed to deliver high performance and reliability storage in difficult settings. It can capture data correctly in severe conditions such as oil exploration, transportation, and industrial automation because it is equipped with SSD storage technology.
It also has a number of data backup options. It supports the FTP service as well as the SMB/CIFS protocol for cross-platform file sharing. Atlas OS delivers real-time information, a toolkit, widgets, and a simple manner of operation; in the future, the software centre will give more programme extensions based on application needs. With a high-resolution camera, the iNAS330 may also be used as a networking surveillance storage device. The file system can be utilised for video recording, and it supports RAID 5, which provides improved data safety.
The iNAS330 supports Power over Ethernet (PoE/PoE+) and adheres to IEEE 802.3af/ IEEE 802.3at regulations. It features a dual PoE+ interface for power redundancy. The iNAS330 is a fanless, thermolysis-efficient IP 54-rated chassis with dust and water protection.
Features
2 Gigabit Ethernet ports for data/power redundancy with PoE+
Data protection in harsh environments
Fully compliant with EN50155 (railway applications), EN61373 (vibrations & shocks)
Wall-mount-kit: 2 extra brackets and screwsM12 cables: waterproof 8pin male M12 to RJ45 gigabit Ethernet cable, rated IP67
System Dimensions
246mm (w) x 194mm (D) x 60mm (H) (9.69" x 7.64" x 2.36")
Software Features
OS: Atlas OS ™ - Web-based GUI (based on HTML5 and CSS3) - Centralized navigation panel and Dual-desktop system: Navigation Panel: For system configurations, with some toolkits on the toolbar - Home: for applications operations - Dashboard: For widgets exhibitionAPPs - Storage Manager - RAID management (JBOD, RAID1, RAID 5)/Auto RAID rebuilding - Data Vault - Log Book - Software CenterWidgets - System Guardian - Network SurveillanceConfigurations - Files and permissions - Network and connectivity - System and devicesToolkit - Profile: account management - Real-time notification - System information - Network status
Client O.S. support
Windows 7+, Windows Server 2003 R2, 2008, 2008 R2 & 2012 or laterLinux & UNIXMac OS X 10.7 or later
