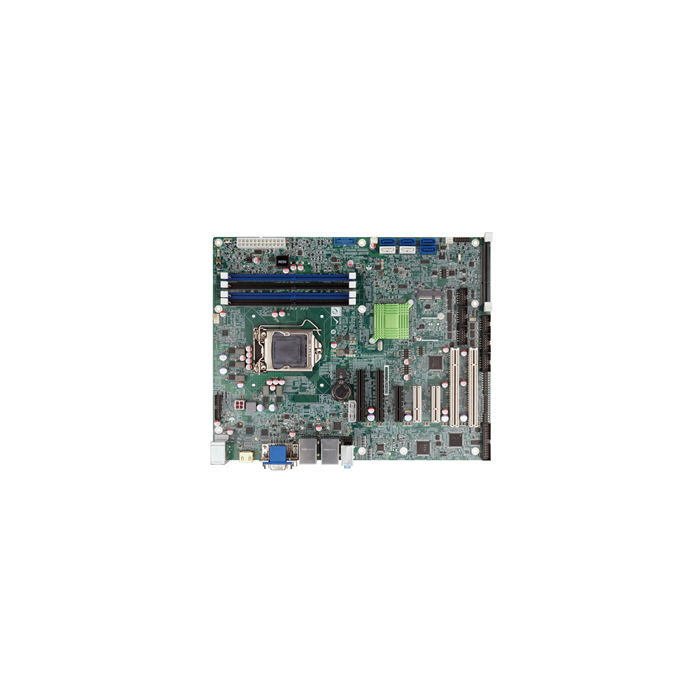

IMBA-Q170-i2 ATX Motherboard

A$0.00

In stock

SKU

IMBA-Q170-i2

ATX motherboard supports 14nm LGA1151 Intel CPU Intel Q170

ATX motherboard supports 14nm LGA1151 Intel CPU Intel Q170

· LGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor supported

· Dual-channel DDR4 2133 MHz

· Support triple display with HDMI, DVI and VGA

· Support USB 3.0, SATA 6Gb/s and PCI Express Gen3

· Support IPMI 2.0 via iRIS-2400 module

· IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Brand

IEI Integration Corp.

Specifications

Spec Item	Description
Dimensions
Dimensions	244mm x 305mm
Display
Display Output	Triple independent display 1 x VGA (up to 1920x1200@60 Hz) 1 x DVI-D (up to 2560x1600@60Hz) 1 x HDMI 2.0 (up to 4096x2160@60Hz) 1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 4096x2304@60Hz)
Environment
Humidity	5% ~ 95%, non-condensing
Operating Temperature	-20°C ~ 60°C
Expansion Slots
Expansion Slots	1 x Full-size PCIe Mini card slot (support mSATA) 2 x PCI slot 2 x PCIe x 8 slot (Gen3) 3 x PCIe x 4 slot (Gen3)
I/O Interface
Audio	Realtek ALC662 HD codec supports 5.1-channel 3 x Audio jacks (line-out, line-in, mic-in) on rear IO 1 x Front audio (2x5 pin)
Digital I/O	8-bit digital I/O (2x5 pin)
Ethernet	LAN1: Intel® I219LM with Intel® AMT 11.0 support LAN2: Intel® I210AT PCIe controller
I/O Interface
I/O Interface	2 x Internal RS-232/422/485
	1 x KB/MS
	1 x Internal USB 3.0
	1 x LPT
	4 x Internal RS-232
	5 x Internal USB 2.0
Option
iRIS	1 x iRIS-2400 slot
Power
Power consumption	3.3V@1.65A, 5V@3.4A, 12V@8.58A, 5VSB@3.4A (Intel® Core™ i7 6700K 4.0GHz CPU with 32 GB (four 4 GB) 2133 MHz DDR4 memory)
System
Chipset	Intel® Q170
CPU	LGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor
Memory Max.	Four 288-pin 2133 MHz dual-channel DDR4 SDRAM unbuffered DIMMs support up to 64 GB
