CPU LGA 775 Intel® Core 2 Duo, Pentium® 4/D/Celeron® D with 533/800/1066 MHz FSB System Chipset Intel® 945G + ICH7 BIOS AMI BIOS System Memory 4 x 240-pin Dual channel DDRII 533/667MHz up to 4GB Ethernet Dual PCIe Broadcom BCM5787 GbE chipsets with ASF2.0 support. I/O Interface 8 x USB 2.0 4 x SATA II 1 x LPT 1 x FDD 5 x RS-232, 1 x RS-232/422/485 1 x 20-pin LPC for TPM modules support 2 x PS/2 for KB/MS 1 x IDE Expansions 1 x PCIe x 16 (Support PCIe x1/16 PCIe add on cards) 1 x PCIe x 1 2 x PCI Digital I/O 8-bit digital I/O, 4-bit input/ 4-bit output IrDA 1x IrDA by pin header Super I/O ITE8712 Audio Realtek ALC655 with AC'97 codec Display VGA integrated in Intel® 945G Watchdog Timer Software programable 1-255 sec. by super I/O Power Supply ATX power supply Power Consumption 5V@2.09A,12V@8.9A,3.3V@3.6A,5VSB@0.67A (Pentium® 4 3.2GHZ,DDRII 533 512MB*4) Temperature Operation: 0°C ~ 60°C (32 ~ 140° F) Humidity Operation: 5% ~ 95% non-condensing Dimensions 244 mm x 244 mm Weight GW: 1200 g; NW: 680 g
Description

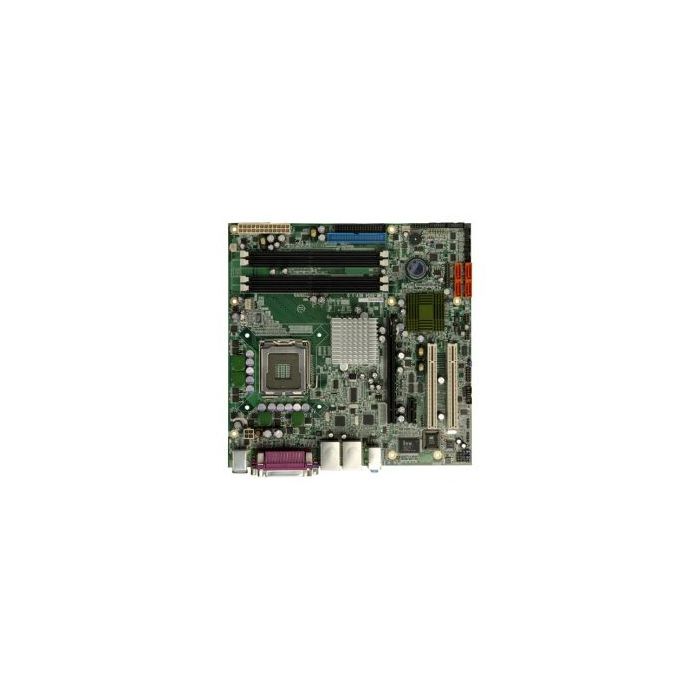

micro-ATX Motherboard with Intel Core 2 Duo, Pentium® 4/ Pentium® D/ Celeron® D FSB 533/800/1066MHz CPU, VGA, Dual PCIe GbE, SATA II, USB 2.0, 6 COM, & Audio
·Intel® Core 2 Duo, Pentium® 4/ Pentium® D/ Celeron® D CPU support up to FSB 533/800/1066MHz
