1 x USB3.0 1 x USB2.0 1 x GbE LAN 2 x DB-9 RS-232 8-bit digital I/O (4-bit input, 4-bit output) 1 x DB-9 CAN-bus/OBD-II 1 x HDMI 1 x Line out, 1 x Mic in 2 x SIM slot
Expansion Slots
Expansion Slots
1 x Full-size PCIe Mini (reserved for 3G module), 1 x Full-size PCIe Mini (reserved for Wi-Fi module)
System
Cooling method / System Fan
Fanless
Drive Bays
1 x 2.5"" SATA 3Gb/s HDD/SSD drive bay
Indicator&Buttons
Indicators
Power/Wi-Fi/HDD/3.5G
Color
Color
Blue C + Black C
Dimensions
Dimensions
277 x 186 x 27
Weight
Weight
1.3 kg/2.8 kg
Environment
Operating Temperature
-20°C ~ 60°C with air flow
Description

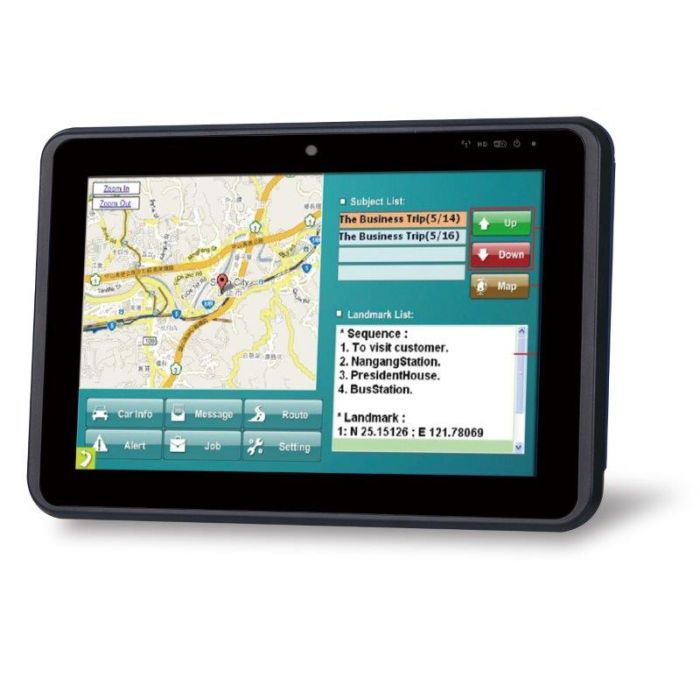

10.1" 350 cd/m2 1280 x 800, In Vehicle Panel PC with Intel® Atom E3826 1.46GHz
·10.1"" TFT LCD with projected capacitive touchscreen
