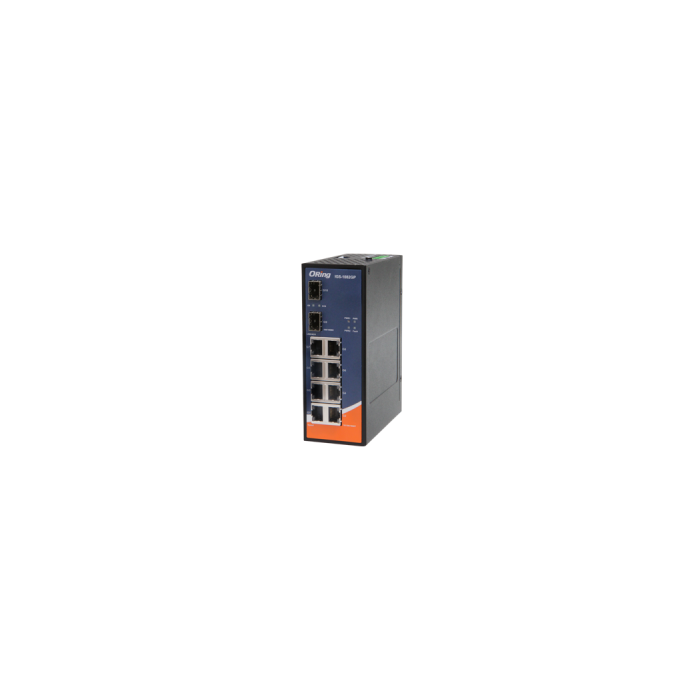

IGS-1082GP 10 port Unmanaged GbE Switch
Industrial 10-port unmanaged Gigabit Ethernet switch with 8x10/100/1000Base-T(X) and 2x100/1000Base-X, SFP socket
Key Features:
- 8 ports IEEE 802.3at compliant PoE
- Total power budget is 180Watts
- Up to 9.6K Bytes Jumbo Frame
- Support up to 4Mbit Packet buffer
- Support store and forward transmission
- Support flow control
- Provided relay output for power failed warning system
- Provide DIP switch for setting SFP speed
- Rigid IP-30 housing design
- DIN-Rail and wall mounting enabled
- Support 9.6K Bytes Jumbo Frame
- Support auto-negotiation and auto-MDI/MDI-X
- Support store and forward transmission
- Support flow control
- Support up to 9.6K Bytes Jumbo Frame
- Support up to 4Mbit Packet buffer
- Support wide range power input 12~48VDC
- Provide DIP-switch to setting SFP speed
- Provided relay output for power failed warning system
- Rigid IP-30 housing design
- DIN-Rail and wall mounting enabled
More Information
| brand |
Oring |
| Specifications |
| Physical Ports | | | 10/100/1000Base-T(X) Ports in RJ45 Auto MDI/MDIX | 8 | | 100/1000Base-X with SFP port | 2 | | Technology | | | Ethernet Standards | IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX and 100Base-FX
IEEE 802.3ab for 1000Base-T
IEEE 802.3z for 1000Base-X
IEEE 802.3x for Flow control | | MAC Table | 8k | | Processing | Store-and-Forward | | Switch Properties | Switching latency: 7 us
Switching bandwidth: 20Gbps | | Jumbo frame | Up to 9.6K Bytes | | Packet buffer | 4Mbit | | LED Indicators | | | Power Indicator (PWR) | Green : Power LED x 3 | | Fault Indicator | Amber : Indicate power failed even warning | | 10/100/1000Base-T(X) RJ45 Port Indicato | Green for port Link/Act.
Dual color LED for speed indicator ~ Green for 1000Mbps / Amber for 100Mbps / off-light for 10Mbps | | 100/1000Base-X SFP Port Indicator | Green for port Link/Act. | | DIP Switch | | | DIP-Switch 1 | Power-1 failed warning : (ON) enable, (OFF) disable | | DIP-Switch 2 | Power-2 failed warning : (ON) enable, (OFF) disable | | DIP-Switch 3 | DIP switch 3 and 4 (ON) : SFP speed setting to 100Mbps | | DIP-Switch 4 | DIP switch 3 and 4 (OFF) : SFP speed setting to 1000Mbps(default) | | Fault Contact | | | Relay | Relay output to carry capacity of 1A at 24VDC | | Power | | | Redundant Input Power | Dual DC inputs. 12~48 VDC on 6-pin terminal block | | Power Consumption (Typ.) | 10 Watts | | Overload Current Protection | Present | | Reverse Polarity Protection | Present | | Physical Characteristics | | | Enclosure | IP-30 | | Dimensions (W x D x H) | 54.3(W) x 108.3(D) x 145.1(H) mm (2.13x4.26x5.71 inches.) | | Weight (g) | 837g | | Environmental | | | Storage Temperature | -40 to 85°C (-40 to 185°F) | | Operating Temperature | -40 to 75°C (-40 to 167°F) | | Operating Humidity | 5% to 95% Non-condensing | | Regulatory Approvals | | | EMC | EN55032, EN55024(CE EMC), FCC Part 15B, EN61000-3-2, EN61000-3-3 | | EMI | CISPR 32, EN55032, FCC Part 15B class A | | EMS | IEC 61000-4-2 (ESD), IEC 61000-4-3 (RS), IEC 61000-4-4 (EFT), IEC 61000-4-5 (Surge), IEC 61000-4-6 (CS), IEC 61000-4-8 (PFMF), IEC 61000-4-11 (DIP) | | Shock | IEC60068-2-27 | | Free Fall | IEC60068-2-32 | | Vibration | IEC60068-2-6 | | Safety | EN60950-1 compliant | | MTBF | TBD | | Warranty | 5 years | |
| Description |
- Support 9.6K Bytes Jumbo Frame
- Support auto-negotiation and auto-MDI/MDI-X
- Support store and forward transmission
- Support flow control
- Support up to 9.6K Bytes Jumbo Frame
- Support up to 4Mbit Packet buffer
- Support wide range power input 12~48VDC
- Provide DIP-switch to setting SFP speed
- Provided relay output for power failed warning system
- Rigid IP-30 housing design
- DIN-Rail and wall mounting enabled
|
