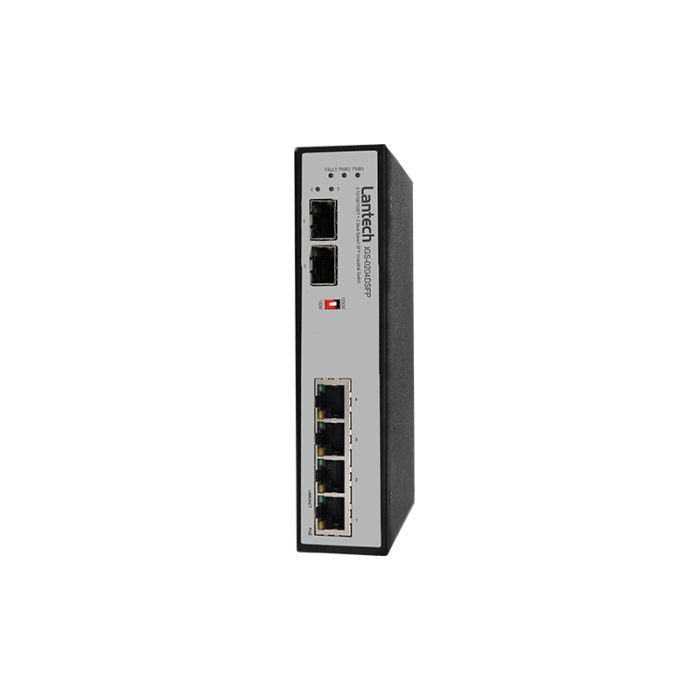

IGS-0204DSFP - 6 port SFP industrial switch

Be the first to review this product

A$0.00

In stock

SKU

IGS-0204DSFP

- 12V to 48V dual input
- Relay contact to connect with alarm system
- Wide operating temperature range from -40°C to 75°C

_{Switch Architecture}	_{Back-plane (Switching Fabric): 12Gbps} _{Packet throughput ability (Full-Duplex): 17.85 Mpps @64bytes}
_{Transfer Rate}	_{14,880pps for Ethernet port} _{148,800pps for Fast Ethernet port} _{1,488,000pps for Gigabit Ethernet port}
_{Packet Buffer}	_1Mbits
_{Mac Address}	_{8K MAC address table}
_Connector	_{10/100/1000T: 4 x RJ-45} _{Mini-GBIC: 2 x 100/1000 Dual Speed SFP Sockets}
_{DIP Switch}	_{SFP Speed 1000M or 100M}
_Protocol	_CSMA/CD
_LED	_{Per unit: Power 1 (Green), Power 2 (Green), Fault (Red)} _{4 port 10/100/1000T: Link/Activity (Green), Full duplex/Collision (Yellow)} _{SFP port: LNK/ACT(Green)}
_{Power Supply}	_{Dual DC 9.5V~56V}
_{Operating Humidity}	_{5% to 95% (Non-condensing)}
_{Operating Temperature}	_{-40°C ~ 75°C}
_{Storage Temperature}	_{-40°C ~ 85°C}
_{Case Dimension}	_{IP30, 35mm (W) x 152mm (H) x 105mm (D)}
_Installation	_{DIN rail or Wall mounting design}
_EMC/EMI	_{FCC Class A, CE EN61000-4-2 (ESD), CE EN61000-4-3 (RS), CE EN-61000-4-4 (EFT),} _{CE EN61000-4-5 (Surge), CE EN61000-4-6 (CS), CE EN61000-4-8, CE EN61000-6-2,} _{CE EN61000-6-4}
_{Stability Testing}	_{IEC60068-2-32 (Free fall), IEC60068-2-27 (Shock), IEC60068-2-6 (Vibration)}
_MTBF	_NA
_Warranty	_{5 years}

More Information

More Information

Description

_{Switch Architecture}	_{Back-plane (Switching Fabric): 12Gbps} _{Packet throughput ability (Full-Duplex): 17.85 Mpps @64bytes}
_{Transfer Rate}	_{14,880pps for Ethernet port} _{148,800pps for Fast Ethernet port} _{1,488,000pps for Gigabit Ethernet port}
_{Packet Buffer}	_1Mbits
_{Mac Address}	_{8K MAC address table}
_Connector	_{10/100/1000T: 4 x RJ-45} _{Mini-GBIC: 2 x 100/1000 Dual Speed SFP Sockets}
_{DIP Switch}	_{SFP Speed 1000M or 100M}
_Protocol	_CSMA/CD
_LED	_{Per unit: Power 1 (Green), Power 2 (Green), Fault (Red)} _{4 port 10/100/1000T: Link/Activity (Green), Full duplex/Collision (Yellow)} _{SFP port: LNK/ACT(Green)}
_{Power Supply}	_{Dual DC 9.5V~56V}
_{Operating Humidity}	_{5% to 95% (Non-condensing)}
_{Operating Temperature}	_{-40°C ~ 75°C}
_{Storage Temperature}	_{-40°C ~ 85°C}
_{Case Dimension}	_{IP30, 35mm (W) x 152mm (H) x 105mm (D)}
_Installation	_{DIN rail or Wall mounting design}
_EMC/EMI	_{FCC Class A, CE EN61000-4-2 (ESD), CE EN61000-4-3 (RS), CE EN-61000-4-4 (EFT),} _{CE EN61000-4-5 (Surge), CE EN61000-4-6 (CS), CE EN61000-4-8, CE EN61000-6-2,} _{CE EN61000-6-4}
_{Stability Testing}	_{IEC60068-2-32 (Free fall), IEC60068-2-27 (Shock), IEC60068-2-6 (Vibration)}
_MTBF	_NA
_Warranty	_{5 years}
