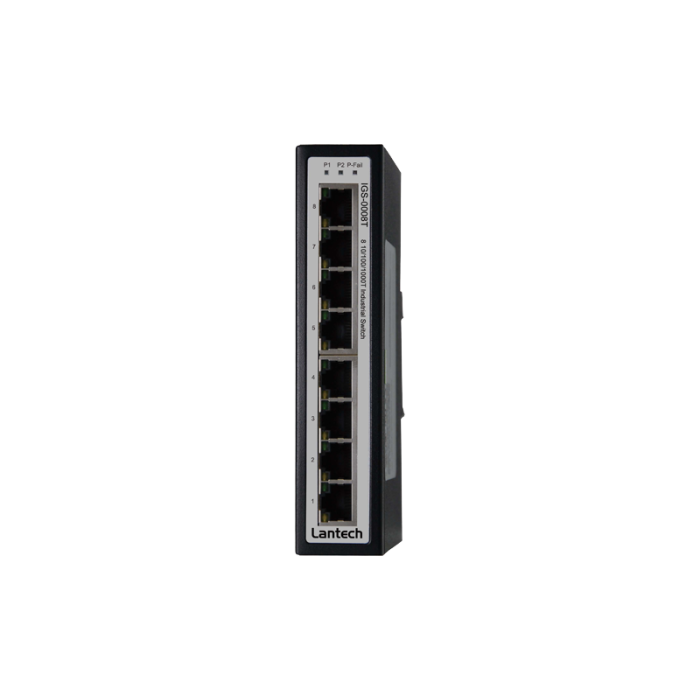

IGS-0008 - 8 x GbE Industrial Unmanaged Switch
- Supports 9720bytes jumbo frame
8 10/100/1000T industrial Ethernet switch (Total 8 Ports Switch) Dual 9V~60VDC power input for 12V model with ISO7637-2 compliance Back-plane (Switching Fabric): 16Gbps Provides EFT protection ± 2000 VDC for power line. Supports ±4000 VDC (Contact) and ±8000 VDC (Air) Ethernet ESD protection Galvanic isolation between power input and case ground; between Ethernet port and case ground; between power input and Ethernet port E-marking certificate for vehicle application (-12V model) Relay alarm output for power fail and alarm IP30 metal housing with DIN rail and Wall-mount** design
More Information
Specifications
Standards IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3ab 1000Base-T IEEE802.3x Flow Control and Back Pressure Switch Architecture Back-plane (Switching Fabric): 16Gbps Packet throughput ability (Full-Duplex): 23.8Mpps @64bytes Transfer Rate 14,880pps for Ethernet port 148,800pps for Fast Ethernet port 1,488,000pps for Gigabit Fiber Ethernet port Memory Buffer 192Kbytes Mac Address 8K MAC address table Jumbo Frame 9720bytes Connectors 10/100/1000T: 8 x RJ-45 Network Cable 10Base-T: 2-pair UTP/STP Cat. 3, 4, 5, 6 cable EIA/TIA-568 100-ohm (100m) 100Base-TX: 2-pair UTP/STP Cat. 5, 6 cable EIA/TIA-568 100-ohm (100m) Protocol CSMA/CD LED Per unit: Power 1 (Green), Power 2 (Green), Fault(Red) Per port: Link/Activity (Green), Speed (1000Mbps Green) Reserve polarity protection Present Overload current protection Resettable Fuse, 1.6A Power Supply 9~56 VDC/ 12~36VAC*, Redundant power with polarity reverse protect function and removable terminal block Power Consumption 5.28 Watts Operating Humidity 5% ~ 95% (Non-condensing) Operating Temperature -20°C~60°C / -4°F~140°F (Standard model) -40°C~75°C / -40°F~167°F (-E model) Storage Temperature -40°C~85°C / -40°F~185°F Case Dimension Metal case. IP30, 30mm (W) x 95mm (D) x 140mm (H) Installation DIN Rail and Wall Mount Design EMI & EMS FCC Class A, CE EN61000-4-2 (ESD), CE EN61000-4-3 (RS), CE EN-61000-4-4 (EFT), CE EN61000-4-5 (Surge), CE EN61000-4-6 (CS), CE EN61000-4-8, CE EN61000-4-11, CE EN61000-4-12, CE EN61000-6-2, CE EN61000-6-4 Safty UL, cUL UL Class I Division II for Group A,B,C and D hazardous location Stability Testing IEC60068-2-32 (Free fall) IEC60068-2-27 (Shock) IEC60068-2-6 (Vibration) MTBF 589,289 hrs Warranty 5 years
Description
8 10/100/1000T industrial Ethernet switch (Total 8 Ports Switch) Dual 9V~60VDC power input for 12V model with ISO7637-2 compliance Back-plane (Switching Fabric): 16Gbps Provides EFT protection ± 2000 VDC for power line. Supports ±4000 VDC (Contact) and ±8000 VDC (Air) Ethernet ESD protection Galvanic isolation between power input and case ground; between Ethernet port and case ground; between power input and Ethernet port E-marking certificate for vehicle application (-12V model) Relay alarm output for power fail and alarm IP30 metal housing with DIN rail and Wall-mount** design
