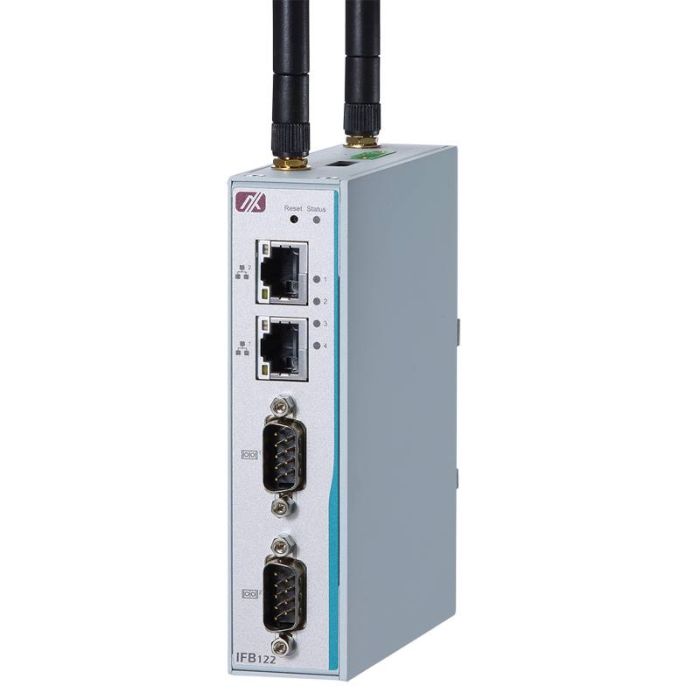

IFB122 Robust RISC-based DIN-rail Fanless Embedded System
Robust RISC-based DIN-rail Fanless Embedded System with i.MX 6UL Processor, 2 COM, 2 LANs and DIO (2-In/1-Out)
Key Features:
-
RISC-based (i.MX 6UltraLite) processor 528 MHz
-
256MB DDR3 SDRAM onboard
-
8GB eMMC flash onboard
-
1 PCI Express Mini Card slot (Wi-Fi or 3G/4G)
-
2 digital inputs and 1 digital output
-
Power input range of 9V to 48V DC with terminal block
-
Embedded Linux operating system (Yocto)
-
Fanless and compact design
-
Wide operating temperature range from -40°C to +70°C
The IFB122 is an extremely compact RISC-based DIN-rail industrial IoT gateway powered by the low-power Freescale i.MX 6UL-2 processor in the ARM® Cortex™-A7 microarchitecture. Designed to meet the challenges in critical environments, it supports extended operating temperature ranging from -40°C to 70°C, a flexible wide voltage range of 9V - 48V DC power input, and can withstand vibration up to 5G. One PCI Express Mini Card slot, one SIM card slot, and two internal antennas are available for Wi-Fi and 3G/4G connections. With the ability to transmit data and manage various devices, the IP40-rated ready-to-run IFB122 is a cost-effective solution for remote control/monitoring management applications such as unmanned control rooms, industrial machines, automatic parking lots, traffic cabinets, etc.
| brand | Axiomtek | ||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
||||||||||||||||||||||||||||||||||||||||||||||||||
| Description | The IFB122 is an extremely compact RISC-based DIN-rail industrial IoT gateway powered by the low-power Freescale i.MX 6UL-2 processor in the ARM® Cortex™-A7 microarchitecture. Designed to meet the challenges in critical environments, it supports extended operating temperature ranging from -40°C to 70°C, a flexible wide voltage range of 9V - 48V DC power input, and can withstand vibration up to 5G. One PCI Express Mini Card slot, one SIM card slot, and two internal antennas are available for Wi-Fi and 3G/4G connections. With the ability to transmit data and manage various devices, the IP40-rated ready-to-run IFB122 is a cost-effective solution for remote control/monitoring management applications such as unmanned control rooms, industrial machines, automatic parking lots, traffic cabinets, etc.
|
