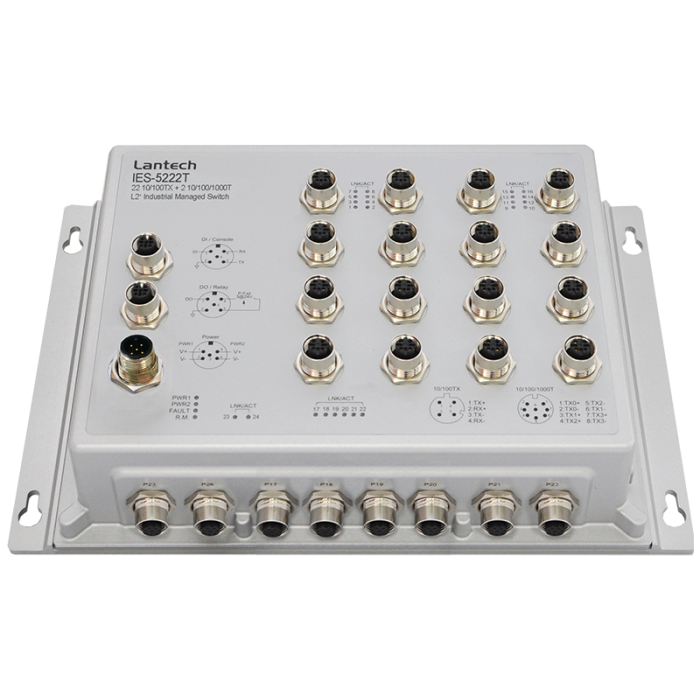

- EN50155/61373/45545-2 certified; Optional 72V input voltage - Enhanced G.8032 ring protection < 20ms with easy configuration; Train ring for dynamic coupling ring; Aggregation ring* - IP67 housing; User friendly UI, including auto topology drawing; Complete CLI
IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX IEEE 802.3ab 1000BaseT IEEE802.3x Flow Control and Back Pressure IEEE802.3ad Port trunk with LACP IEEE802.1d Spanning Tree IEEE802.1w Rapid Spanning Tree IEEE802.1s Multiple Spanning Tree IEEE 802.3ad Link Aggregation Control Protocol (LACP) IEEE 802.1AB Link Layer Discovery Protocol (LLDP) IEEE 802.1X User Authentication (Radius) IEEE802.1p Class of Service IEEE802.1Q VLAN Tag
14,880pps for Ethernet port 148,800pps for Fast Ethernet port 1,488,000pps for Gigabit Fiber Ethernet port
CPU
Marvell 800Mhz
RAM
256M Byte
Flash
128M Byte
Mac Address
16K MAC address table
Jumbo frame
9KB on all ports
Connector
10/100TX: 22 x M12 4-pole D-coded with auto MDI/MDI-X function 10/100/1000T: 2 x M12 8-pole A-coded with auto MDI/MDI-X function RS-232 connector: 1 x M12 5-pole A-coded Power Input connector : 1 x M23 5-pole A-coded Relay contact : 1 x M12 5-pole A-coded
High-speed optical switching (<4ms) Minimal insertion loss (Max 1.6dB as Bypass Mode)
Protocol
CSMA/CD
LED
Per unit: Power 1 (Green), Power 2 (Green), P-Fail (Red) Ethernet port: Link/Activity (Green), Speed (Green); GigaT: Link/Activity (Green)
DI / DO
1 Digital Input (DI) : Level 0: -30~2V / Level 1: 10~30V Max. input current:8mA 1 Digital Output(DO): Open collector to 40 VDC, 200mA
Operating Humidity
5% ~ 95% (Non-condensing)
Operating Temperature
-40°C~75°C / -40°F~167°F
Storage Temperature
-40°C~85°C / -40°F~185°F
Redundant Power Supply
Standard model:9.5~56VDC dual input 72V model: 50.4~90VDC dual input 110V model : 43~160VDC dual input with input isolation
Power Consumption
Max. 13W 12V~48VDC input Max. 16W 72VDC
Case Dimension
IP67 model: Aluminum case 285mm(W)x201.4mm(H)x77.6mm(D)
Weight
2.1kgs
Installation
DIN Rail** and Wall Mount Design
EMI & EMS
FCC Class A, CE EN61000-6-2, CE EN61000-6-4, CE EN61000-4-2, CE EN61000-4-3, CE EN61000-4-4, CE EN61000-4-5, CE EN61000-4-6, CE N61000-4-8, EN61000-4-11
Stability Testing
IEC60068-2-32 (Free fall), EN61373 (Shock and Vibration)
MTBF
n/a
Certificates & Report
EN50155/EN50121-3-2/EN50121-4 Certificate ISO 7637** report EN45545-2 R24/R25 (EN ISO 4589-2, EN ISO 5659-2, NF X70-100-1 & 2) Fire & Smoke Certificate
