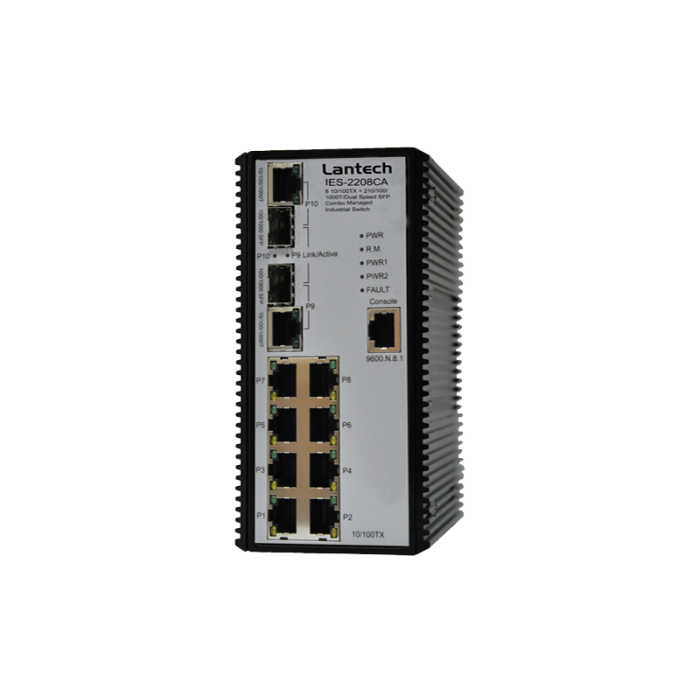

Shop IES-2208CA - 10 port, SFP managed switch at Tekdis LLC

Details

_{IEEE Standards}	_{IEEE802.3 10Base-T Ethernet} _{IEEE802.3u 100Base-TX} _{IEEE802.3ab 1000Base-T} _{IEEE802.3z Gigabit fiber} _{IEEE802.3x Flow Control and Back Pressure} _{IEEE802.3ad Port trunk with LACP} _{IEEE802.3af Power over Ethernet} _{IEEE802.1d Spanning Tree} _{IEEE802.1w Rapid Spanning Tree} _{IEEE802.1p Class of Service} _{IEEE802.1Q VLAN Tag} _{IEEE802.1x User Authentication (Radius)} _{IEEE802.1ab LLDP}
_{Switch Architecture}	_{Back-plane (Switching Fabric): 5.6Gbps}
_{Transfer Rate}	_{14,880pps for Ethernet port} _{148,800pps for Fast Ethernet port} _{1,488,000pps for Gigabit Fiber Ethernet port}
_{Packet Buffer}	_1Mbits
_{MAC Address}	_{8K MAC address table}
_{Flash ROM}	_4Mbytes
_DRAM	_32Mbytes
_Connectors	_{10/100TX: 8 x ports RJ-45 with Auto MDI/MDI-X function} _{10/100/1000T/SFP Combo port: 2 x RJ-45 + 2 x 100/1000 SFP socket with DDM} _{RS-232 connector: RJ-45 type}
_{Network Cable}	_{10Base-T: 2-pair UTP/STP Cat. 3, 4, 5/ 5E/ 6 cable} _{EIA/TIA-568 100-ohm (100m)} _{100Base-TX: 2-pair UTP/STP Cat. 5/ 5E/ 6 cable} _{EIA/TIA-568 100-ohm (100m)} _{1000Base-TX: 2-pair UTP/STP Cat. 5/ 5E/ 6 cable} _{EIA/TIA-568 100-ohm (100m)}
_{Optical Fiber}	_1.25Gbps: _{Multi mode: 0 to 550 m, 850 nm (50/125 μm); 0 to 2 km, 1310 nm (50/125 μm)} _{Single mode: 0 to 10 km/ 30 km/ 40 km, 1310 nm (9/125 μm); 0 to 50 km/ 60 km/ 80km/ 120 km, 1550 nm (9/125 μm)} _125Mbps: _{Multi mode: 0 to 2 km/ 5 km, 1310 nm (62.5/125 μm)} _{Single mode: 0 to 30 km, 1310 nm (62.5/125 μm)} _{WDM 1.25Gbps:} _{Single mode: 0 to 10 km/ 20 km/ 40 km/ 60 km, 1310 nm (9/125 μm); 0 to 80 km, 1490 nm (9/125 μm); 0 to 10 km/ 20 km/ 40 km/ 60 km/ 80 km, 1550 nm (9/125 μm)} _{WDM 125Mbps:} _{Single mode: 0 to 20 km/ 40 km/ 60 km/ 80 km, 1310 nm (9/125 μm); 0 to 20 km/ 40 km/ 60 km/ 80 km, 1550 nm (9/125 μm)}
_Protocol	_CSMA/CD
_LED	_{Per unit: Power (Green), Power 1 (Green), Power 2 (Green), Fault (Yellow), Master (Green)} _{8 port 10/100: Link/Activity (Green), Full duplex/Collision (Yellow)} _{SFP port: LNK/ACT(Green), 1000T: LNK/ACT(Green), 1000M(Green)}
_{Power Supply}	_{12V~48VDC(9V~56VDC);Redundant power connector removable terminal block for master and slave power}
_{Overload current protection}	_Present
_{Operating Humidity}	_{5% ~ 95% (Non-condensing)}
_{Operating Temperature}	_{Standard: -20°C~60°C / -4°F~140°F} _{Wide Operating Temperature for -E model/ -ATEX model/ -DNV model:} _{-40°C~75°C / -40°F~167°F}
_{Storage Temperature}	_{-40°C~85°C / -40°F~185°F}
_{Case Dimension}	_{IP-30, 74(W) x 114 (D) x 152 (H) mm}
_Weight	_{850 g}
_{Fan Number}	₀
_Installation	_{Wall mount or DIN-type cabinet install}
_{EMI & EMS}	_{FCC Class A, CE EN61000-4-2,} _{CE EN61000-4-3, CE EN61000-4-4,} _{CE EN61000-4-5, CE EN61000-4-6,} _{CE EN61000-4-8, CE EN61000-4-11,} _{CE EN61000-4-12,CE EN61000-6-2, CE EN61000-6-4}
_Safety	_UL _{UL Class I Division II for Group A,B,C and D hazardous location} _{ATEX Directive 94/9/EC (-ATEX model)}
_{Stability Testing}	_{IEC60068-2-32 (Free fall), IEC60068-2-27 (Shock), IEC60068-2-6 (Vibration)}
_{Power Consumption}	_{9.86 W at full load}
_MTBF	_{281,224 hrs}
_Warranty	_{5 years}

More Information

Description

_{IEEE Standards}	_{IEEE802.3 10Base-T Ethernet} _{IEEE802.3u 100Base-TX} _{IEEE802.3ab 1000Base-T} _{IEEE802.3z Gigabit fiber} _{IEEE802.3x Flow Control and Back Pressure} _{IEEE802.3ad Port trunk with LACP} _{IEEE802.3af Power over Ethernet} _{IEEE802.1d Spanning Tree} _{IEEE802.1w Rapid Spanning Tree} _{IEEE802.1p Class of Service} _{IEEE802.1Q VLAN Tag} _{IEEE802.1x User Authentication (Radius)} _{IEEE802.1ab LLDP}
_{Switch Architecture}	_{Back-plane (Switching Fabric): 5.6Gbps}
_{Transfer Rate}	_{14,880pps for Ethernet port} _{148,800pps for Fast Ethernet port} _{1,488,000pps for Gigabit Fiber Ethernet port}
_{Packet Buffer}	_1Mbits
_{MAC Address}	_{8K MAC address table}
_{Flash ROM}	_4Mbytes
_DRAM	_32Mbytes
_Connectors	_{10/100TX: 8 x ports RJ-45 with Auto MDI/MDI-X function} _{10/100/1000T/SFP Combo port: 2 x RJ-45 + 2 x 100/1000 SFP socket with DDM} _{RS-232 connector: RJ-45 type}
_{Network Cable}	_{10Base-T: 2-pair UTP/STP Cat. 3, 4, 5/ 5E/ 6 cable} _{EIA/TIA-568 100-ohm (100m)} _{100Base-TX: 2-pair UTP/STP Cat. 5/ 5E/ 6 cable} _{EIA/TIA-568 100-ohm (100m)} _{1000Base-TX: 2-pair UTP/STP Cat. 5/ 5E/ 6 cable} _{EIA/TIA-568 100-ohm (100m)}
_{Optical Fiber}	_1.25Gbps: _{Multi mode: 0 to 550 m, 850 nm (50/125 μm); 0 to 2 km, 1310 nm (50/125 μm)} _{Single mode: 0 to 10 km/ 30 km/ 40 km, 1310 nm (9/125 μm); 0 to 50 km/ 60 km/ 80km/ 120 km, 1550 nm (9/125 μm)} _125Mbps: _{Multi mode: 0 to 2 km/ 5 km, 1310 nm (62.5/125 μm)} _{Single mode: 0 to 30 km, 1310 nm (62.5/125 μm)} _{WDM 1.25Gbps:} _{Single mode: 0 to 10 km/ 20 km/ 40 km/ 60 km, 1310 nm (9/125 μm); 0 to 80 km, 1490 nm (9/125 μm); 0 to 10 km/ 20 km/ 40 km/ 60 km/ 80 km, 1550 nm (9/125 μm)} _{WDM 125Mbps:} _{Single mode: 0 to 20 km/ 40 km/ 60 km/ 80 km, 1310 nm (9/125 μm); 0 to 20 km/ 40 km/ 60 km/ 80 km, 1550 nm (9/125 μm)}
_Protocol	_CSMA/CD
_LED	_{Per unit: Power (Green), Power 1 (Green), Power 2 (Green), Fault (Yellow), Master (Green)} _{8 port 10/100: Link/Activity (Green), Full duplex/Collision (Yellow)} _{SFP port: LNK/ACT(Green), 1000T: LNK/ACT(Green), 1000M(Green)}
_{Power Supply}	_{12V~48VDC(9V~56VDC);Redundant power connector removable terminal block for master and slave power}
_{Overload current protection}	_Present
_{Operating Humidity}	_{5% ~ 95% (Non-condensing)}
_{Operating Temperature}	_{Standard: -20°C~60°C / -4°F~140°F} _{Wide Operating Temperature for -E model/ -ATEX model/ -DNV model:} _{-40°C~75°C / -40°F~167°F}
_{Storage Temperature}	_{-40°C~85°C / -40°F~185°F}
_{Case Dimension}	_{IP-30, 74(W) x 114 (D) x 152 (H) mm}
_Weight	_{850 g}
_{Fan Number}	₀
_Installation	_{Wall mount or DIN-type cabinet install}
_{EMI & EMS}	_{FCC Class A, CE EN61000-4-2,} _{CE EN61000-4-3, CE EN61000-4-4,} _{CE EN61000-4-5, CE EN61000-4-6,} _{CE EN61000-4-8, CE EN61000-4-11,} _{CE EN61000-4-12,CE EN61000-6-2, CE EN61000-6-4}
_Safety	_UL _{UL Class I Division II for Group A,B,C and D hazardous location} _{ATEX Directive 94/9/EC (-ATEX model)}
_{Stability Testing}	_{IEC60068-2-32 (Free fall), IEC60068-2-27 (Shock), IEC60068-2-6 (Vibration)}
_{Power Consumption}	_{9.86 W at full load}
_MTBF	_{281,224 hrs}
_Warranty	_{5 years}

Reviews

Write Your Own Review

Downloads

Product Data Sheet

IES-2208CA - 10 port, SFP managed switch

IEEE Standards

Switch Architecture

Back-plane (Switching Fabric): 5.6Gbps

Transfer Rate

14,880pps for Ethernet port 148,800pps for Fast Ethernet port 1,488,000pps for Gigabit Fiber Ethernet port

Packet Buffer

1Mbits

MAC Address

8K MAC address table

Flash ROM

4Mbytes

DRAM

32Mbytes

Connectors

10/100TX: 8 x ports RJ-45 with Auto MDI/MDI-X function 10/100/1000T/SFP Combo port: 2 x RJ-45 + 2 x 100/1000 SFP socket with DDM RS-232 connector: RJ-45 type

Network Cable

10Base-T: 2-pair UTP/STP Cat. 3, 4, 5/ 5E/ 6 cable EIA/TIA-568 100-ohm (100m) 100Base-TX: 2-pair UTP/STP Cat. 5/ 5E/ 6 cable EIA/TIA-568 100-ohm (100m) 1000Base-TX: 2-pair UTP/STP Cat. 5/ 5E/ 6 cable EIA/TIA-568 100-ohm (100m)

Optical Fiber

Protocol

CSMA/CD

LED

Per unit: Power (Green), Power 1 (Green), Power 2 (Green), Fault (Yellow), Master (Green) 8 port 10/100: Link/Activity (Green), Full duplex/Collision (Yellow) SFP port: LNK/ACT(Green), 1000T: LNK/ACT(Green), 1000M(Green)

Power Supply

12V~48VDC(9V~56VDC);Redundant power connector removable terminal block for master and slave power

Overload current protection

Present

Operating Humidity

5% ~ 95% (Non-condensing)

Operating Temperature

Standard: -20°C~60°C / -4°F~140°F Wide Operating Temperature for -E model/ -ATEX model/ -DNV model:-40°C~75°C / -40°F~167°F

Storage Temperature

-40°C~85°C / -40°F~185°F

Case Dimension

IP-30, 74(W) x 114 (D) x 152 (H) mm

Weight

850 g

Fan Number

0

Installation

Wall mount or DIN-type cabinet install

EMI & EMS

FCC Class A, CE EN61000-4-2, CE EN61000-4-3, CE EN61000-4-4, CE EN61000-4-5, CE EN61000-4-6, CE EN61000-4-8, CE EN61000-4-11, CE EN61000-4-12,CE EN61000-6-2, CE EN61000-6-4

Safety

UL UL Class I Division II for Group A,B,C and D hazardous location ATEX Directive 94/9/EC (-ATEX model)

Stability Testing

IEC60068-2-32 (Free fall), IEC60068-2-27 (Shock), IEC60068-2-6 (Vibration)

Power Consumption

9.86 W at full load

MTBF

281,224 hrs

Warranty

5 years
