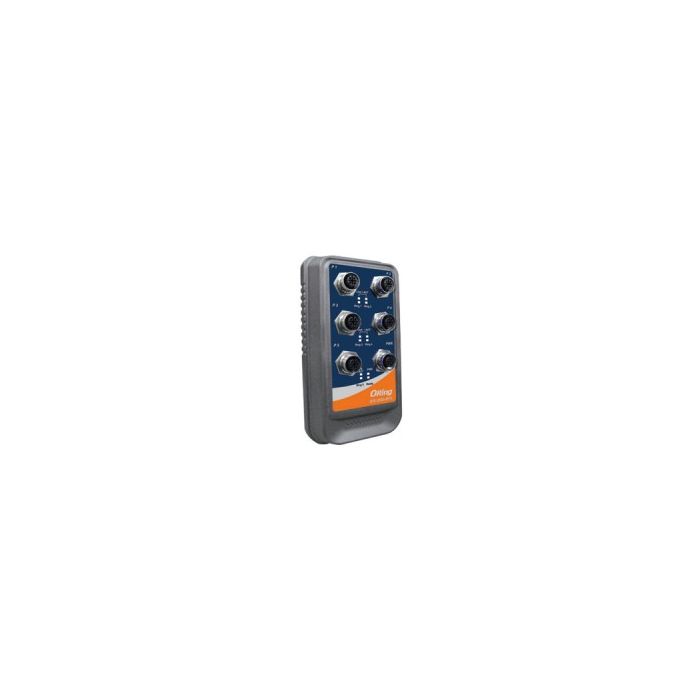

IES-2050-M12 - 5 port lite managed switch

A$0.00

In stock

SKU

IES-2050-M12

IES-2050-M12 is a waterproof lite-managed redundant ring ethernet switch with 5x10/100Base-T(X) ports which is fully compliant with IP-67 standards.

Details

Fastest Redundant Ethernet Ring : O-Ring (recovery time < 10ms over 250 units of connection)
Open-Ring support the other vendor’s ring technology in open architecture
O-Chain support the multiple redundant ring technology
Waterproof M12 connector (A-coding)
Multiple Redundant Ethernet technology RSTP/STP, O-Ring supported to protect your industrial network
SNMP v1/v2c/v3 support for secured network management
Configurable by Web-based and Windows utility (Open-Vision)
Supports 5 ports 10/100Base-T(X)

More Information

Specifications

Physical Ports
10/100 Base-T(X) Ports in RJ45 Auto MDI/MDIX	5
Connector Type	M12 Waterproof (A-coding)
Technology
Ethernet Standards	IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX IEEE 802.3x for Flow control IEEE 802.1D for STP (Spanning Tree Protocol) IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol) IEEE 802.1AB for LLDP (Link Layer Discovery Protocol)
MAC Table	2048 MAC addressessses
Priority Queues	4
Processing	Store-and-Forward
Switch Properties	Switching bandwidth : 1.0Gbps VLAN : Port Based
Security Features	Enable/disable ports VLAN to segregate and secure network traffic SNMPv3 encrypted authentication and access security
Software Features	STP/RSTP (IEEE 802.1D/w) Redundant Ring (O-Ring) with recovery time less than 10ms over 250 units Port configuration, status, statistics, monitoring, security
Network Redundancy	O-Ring Open-Ring O-Chain Fast recovery STP RSTP
LED Indicators
Power	Green : Power LED x 1
Ready / Ring Master Indicator	Amber LED : Light on for system ready Light off for system faile
O-Ring Indicator	Amber : Indicate port operated in O-Ring mode (per port)
10/100Base-T(X) RJ45 Port Indicator	Green for port Link/Act. (per port)
Power
Redundant Input Power	12~48 VDC power input
Connector Type	M12 Waterproof (A-coding)
Power Consumption (Typ.)	3 Watts.
Overload Current Protection	Present
Reverse Polarity Protection	Present
Physical Characteristics
Enclosure	IP-67
Dimensions (W x D x H)	90(W) x 40.5(D) x 155(H) mm (3.54x1.59x6.1 inch.)
Weight (g)	470 g
Environmental
Storage Temperature	-40 to 85°C (-40 to 185°F)
Operating Temperature	-40 to 70°C (-40 to 158°F)
Operating Humidity	5% to 95% Non-condensing
Regulatory Approvals
EMI	FCC Part 15, CISPR (EN55022) class A,
EMS	IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8, IEC61000-4-11
Shock	IEC60068-2-27
Free Fall	IEC60068-2-32
Vibration	IEC60068-2-6
Safety	EN60950-1
MTBF (Hours) (MIL-HDBK-217F2, GB, GC, 25°C )	662,177
Warranty	5 years

Description

Fastest Redundant Ethernet Ring : O-Ring (recovery time < 10ms over 250 units of connection)
Open-Ring support the other vendor’s ring technology in open architecture
O-Chain support the multiple redundant ring technology
Waterproof M12 connector (A-coding)
Multiple Redundant Ethernet technology RSTP/STP, O-Ring supported to protect your industrial network
SNMP v1/v2c/v3 support for secured network management
Configurable by Web-based and Windows utility (Open-Vision)
Supports 5 ports 10/100Base-T(X)
