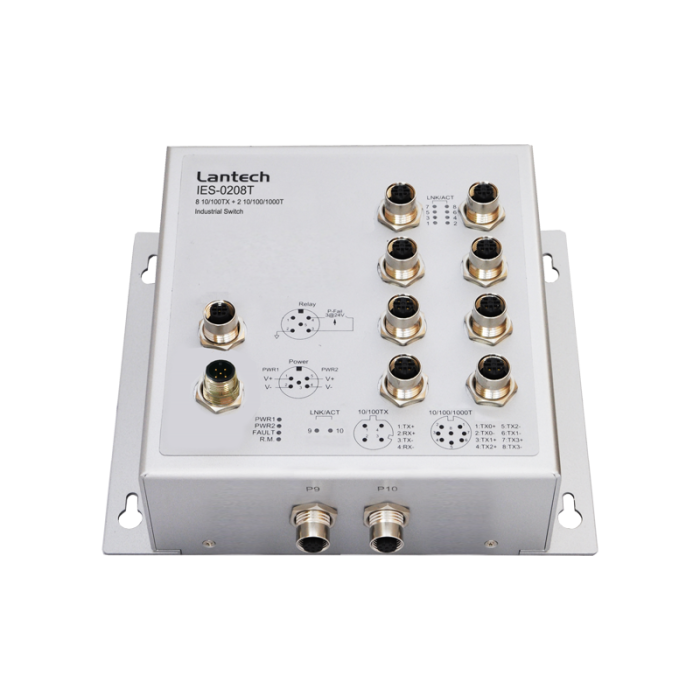

main product photo

Skip to the beginning of the images gallery

IES-0208T

Be the first to review this product

A$0.00

In stock

SKU

IES-0208T

Model Code: IES-0208T

- EN50155/ E-Mark certificate
- Provides M12 connector with IP67 / 43 rated protection
- IEEE802.3at/af up to 30W PoE output

_{IEEE Standard}	_{IEEE802.3 10BASE-T Ethernet} _{IEEE802.3u 100BASE-T Ethernet} _{IEEE802.3ab 1000BASE-T Ethernet} _{IEEE802.3x Flow Control and Back Pressure}
_{Transfer Rate}	_{14,880pps for Ethernet port} _{148,800pps for Fast Ethernet port} _{1,488,000pps for Gigabit Fiber Ethernet port}
_{Mac Address}	_{8K MAC address table}
_Connector	_{10/100T: 8 x M12, 4-pole D-coded, Female with auto MDI/MDI-X function} _{10/100/1000T : 2 x M12 M12 8-pole A-coded with autoMDI/MDI-X function} _{Power connector: 1 x M12, 5-pole A-coded, Male}
_Protocol	_CSMA/CD
_LED	_{Per unit: Power 1 (Green), Power 2 (Green),} _{Ethernet: Link/Activity (Green)} _{GigaT: Link/Activity (Green)}
_{Power Supply}	_{Dual power DC 9.5V ~56V} _{110V model : 43~160VDC dual input with input isolation}
_{Power Consumption}	_{10W at 12/24/48V input} _{13.5W at 110V input}
_{Operating Humidity}	_{5% to 95% (Non-condensing)}
_{Operating Temperature}	_{-40°C ~ 75°C (-40°F ~ 167°F)}
_{Storage Temperature}	_{-40°C ~ 85°C (-40°F ~ 185°F)}
_{Case Dimension}	_{Aluminum case. IP-67,} _{215mm(W)x185mm(H)x71mm(D)} _{Aluminum case, IP-43} _{202mm(W)x172mm(H)x62.5mm(D)}
_Weight	_{1.4kgs (IP67); 1.2kgs(IP43)}
_Installation	_{Din Rail**, Wall Mount Design}
_EMC	_{FCC Class A,} _{CE EN61000-4-2 (ESD),} _{CE EN61000-4-3 (RS),} _{CE EN-61000-4-4 (EFT),} _{CE EN61000-4-5 (Surge),} _{CE EN61000-4-6 (CS),} _{CE EN61000-4-8 (Magnetic Field),} _{CE EN61000-6-2,} _{CE EN61000-6-4}
_{Stability Testing}	_{IEC61373 (Shock), EN61373 (Shock and Vibration)}
_{Certificates & report}	_{EN50155 Compliant} _{EN45545-2 R24/R25 (EN ISO 4589-2, EN ISO 5659-2, NF X70-100-1 & 2)*} _E-Marking
_Warranty	_{5 years}

More Information

More Information

Description

_{IEEE Standard}	_{IEEE802.3 10BASE-T Ethernet} _{IEEE802.3u 100BASE-T Ethernet} _{IEEE802.3ab 1000BASE-T Ethernet} _{IEEE802.3x Flow Control and Back Pressure}
_{Transfer Rate}	_{14,880pps for Ethernet port} _{148,800pps for Fast Ethernet port} _{1,488,000pps for Gigabit Fiber Ethernet port}
_{Mac Address}	_{8K MAC address table}
_Connector	_{10/100T: 8 x M12, 4-pole D-coded, Female with auto MDI/MDI-X function} _{10/100/1000T : 2 x M12 M12 8-pole A-coded with autoMDI/MDI-X function} _{Power connector: 1 x M12, 5-pole A-coded, Male}
_Protocol	_CSMA/CD
_LED	_{Per unit: Power 1 (Green), Power 2 (Green),} _{Ethernet: Link/Activity (Green)} _{GigaT: Link/Activity (Green)}
_{Power Supply}	_{Dual power DC 9.5V ~56V} _{110V model : 43~160VDC dual input with input isolation}
_{Power Consumption}	_{10W at 12/24/48V input} _{13.5W at 110V input}
_{Operating Humidity}	_{5% to 95% (Non-condensing)}
_{Operating Temperature}	_{-40°C ~ 75°C (-40°F ~ 167°F)}
_{Storage Temperature}	_{-40°C ~ 85°C (-40°F ~ 185°F)}
_{Case Dimension}	_{Aluminum case. IP-67,} _{215mm(W)x185mm(H)x71mm(D)} _{Aluminum case, IP-43} _{202mm(W)x172mm(H)x62.5mm(D)}
_Weight	_{1.4kgs (IP67); 1.2kgs(IP43)}
_Installation	_{Din Rail**, Wall Mount Design}
_EMC	_{FCC Class A,} _{CE EN61000-4-2 (ESD),} _{CE EN61000-4-3 (RS),} _{CE EN-61000-4-4 (EFT),} _{CE EN61000-4-5 (Surge),} _{CE EN61000-4-6 (CS),} _{CE EN61000-4-8 (Magnetic Field),} _{CE EN61000-6-2,} _{CE EN61000-6-4}
_{Stability Testing}	_{IEC61373 (Shock), EN61373 (Shock and Vibration)}
_{Certificates & report}	_{EN50155 Compliant} _{EN45545-2 R24/R25 (EN ISO 4589-2, EN ISO 5659-2, NF X70-100-1 & 2)*} _E-Marking
_Warranty	_{5 years}
