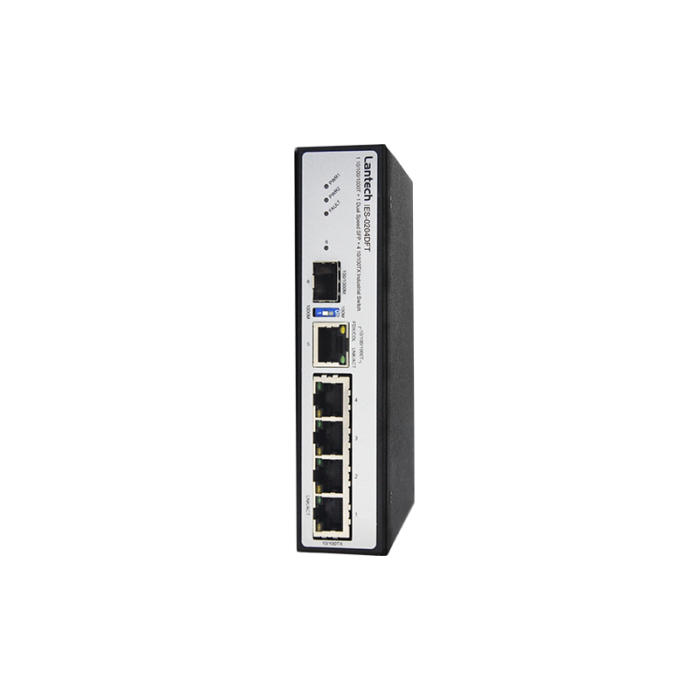

IES-0204DFT- 5 port SFP switch

A$0.00

In stock

SKU

IES-0204DFT

- 12V to 48V dual input
- Relay contact to connect with alarm system
- Wide operating temperature range from -40°C to 75°C

Details

_{IEEE Standards}	_{IEEE 802.3 10Base-T Ethernet} _{IEEE 802.3u 100Base-TX and 100Base-FX Fast Ethernet} _{IEEE802.3x Flow Control and Back Pressure}
_{Switch Architecture}	_{Back-plane (Switching Fabric): 1.0Gbps} _{Packet throughput ability (Full-Duplex): 1.488Mpps @64bytes}
_{Transfer Rate}	_{14,880pps for Ethernet port} _{148,800pps for Fast Ethernet port}
_{Mac Address}	_{8K MAC address table}
_Connectors	_{10/100TX: 4 x RJ-45 with auto MDI/MDI-X function; Support PoE+ injector function} _{10/100/1000T:1x RJ-45 with auto MDI/MDI-X function} _{100M/1000M fiber: 1 x dual speed SFP slot for Single-mode or Multi-mode type fiber cable}
_{Network Cable}	_{10Base-T: 2-pair UTP/STP Cat. 3, 4, 5, 6 cable} _{EIA/TIA-568 100-ohm (100m)} _{100Base-TX: 2-pair UTP/STP Cat. 5, 6 cable} _{EIA/TIA-568 100-ohm (100m)}
_{Optical Cable}	_{Multi-mode: 50/125um~62.5/125um} _{Single-mode: 9/125um} _{Available distance: 2km (Multi-mode)/30km (Single-mode)} _{Wavelength: 1310nm (Multi-mode/Single-mode)}
_Protocol	_CSMA/CD
_LED	_{Per unit: Power 1 (Green), Power 2 (Green), Fault(Amber)} _{Fiber: Link/Active(Green)} _{TX: Link/Active(Green)}
_{Power Supply}	_{Dual power input 9.5~56VDC}
_{Power Consumption}	_{4.1 Watts max.}
_{Overload current protection}	_Present
_{Operating Humidity}	_{5% ~ 95% (Non-condensing)}
_{Operating Temperature}	_{-40°C~75°C / -40°F~167°F}
_{Storage Temperature}	_{-40°C~85°C /-40°F~185°F}
_{Case Dimension}	_{Metal case. IP-30,} _{35mm (W) x 142mm (H) x 105mm (D)}
_Weight	_660g
_Installation	_{DIN Rail and Wall Mount Design}
_{EMI & EMS}	_{FCC Class A,} _{CE EN61000-4-2 (ESD),} _{CE EN61000-4-3 (RS),} _{CE EN61000-4-4 (EFT),} _{CE EN61000-4-5 (Surge),} _{CE EN61000-4-6 (CS),} _{CE EN61000-4-8,} _{CE EN61000-4-11,} _{CE EN61000-6-2,} _{CE EN61000-6-4}
_{Stability Testing}	_{IEC60068-2-32 (Free fall), IEC60068-2-27 (Shock),} _{IEC60068-2-6 (Vibration)}
_MTBF	_N/A
_Warranty	_{5 years}

More Information

Description

_{IEEE Standards}	_{IEEE 802.3 10Base-T Ethernet} _{IEEE 802.3u 100Base-TX and 100Base-FX Fast Ethernet} _{IEEE802.3x Flow Control and Back Pressure}
_{Switch Architecture}	_{Back-plane (Switching Fabric): 1.0Gbps} _{Packet throughput ability (Full-Duplex): 1.488Mpps @64bytes}
_{Transfer Rate}	_{14,880pps for Ethernet port} _{148,800pps for Fast Ethernet port}
_{Mac Address}	_{8K MAC address table}
_Connectors	_{10/100TX: 4 x RJ-45 with auto MDI/MDI-X function; Support PoE+ injector function} _{10/100/1000T:1x RJ-45 with auto MDI/MDI-X function} _{100M/1000M fiber: 1 x dual speed SFP slot for Single-mode or Multi-mode type fiber cable}
_{Network Cable}	_{10Base-T: 2-pair UTP/STP Cat. 3, 4, 5, 6 cable} _{EIA/TIA-568 100-ohm (100m)} _{100Base-TX: 2-pair UTP/STP Cat. 5, 6 cable} _{EIA/TIA-568 100-ohm (100m)}
_{Optical Cable}	_{Multi-mode: 50/125um~62.5/125um} _{Single-mode: 9/125um} _{Available distance: 2km (Multi-mode)/30km (Single-mode)} _{Wavelength: 1310nm (Multi-mode/Single-mode)}
_Protocol	_CSMA/CD
_LED	_{Per unit: Power 1 (Green), Power 2 (Green), Fault(Amber)} _{Fiber: Link/Active(Green)} _{TX: Link/Active(Green)}
_{Power Supply}	_{Dual power input 9.5~56VDC}
_{Power Consumption}	_{4.1 Watts max.}
_{Overload current protection}	_Present
_{Operating Humidity}	_{5% ~ 95% (Non-condensing)}
_{Operating Temperature}	_{-40°C~75°C / -40°F~167°F}
_{Storage Temperature}	_{-40°C~85°C /-40°F~185°F}
_{Case Dimension}	_{Metal case. IP-30,} _{35mm (W) x 142mm (H) x 105mm (D)}
_Weight	_660g
_Installation	_{DIN Rail and Wall Mount Design}
_{EMI & EMS}	_{FCC Class A,} _{CE EN61000-4-2 (ESD),} _{CE EN61000-4-3 (RS),} _{CE EN61000-4-4 (EFT),} _{CE EN61000-4-5 (Surge),} _{CE EN61000-4-6 (CS),} _{CE EN61000-4-8,} _{CE EN61000-4-11,} _{CE EN61000-6-2,} _{CE EN61000-6-4}
_{Stability Testing}	_{IEC60068-2-32 (Free fall), IEC60068-2-27 (Shock),} _{IEC60068-2-6 (Vibration)}
_MTBF	_N/A
_Warranty	_{5 years}
