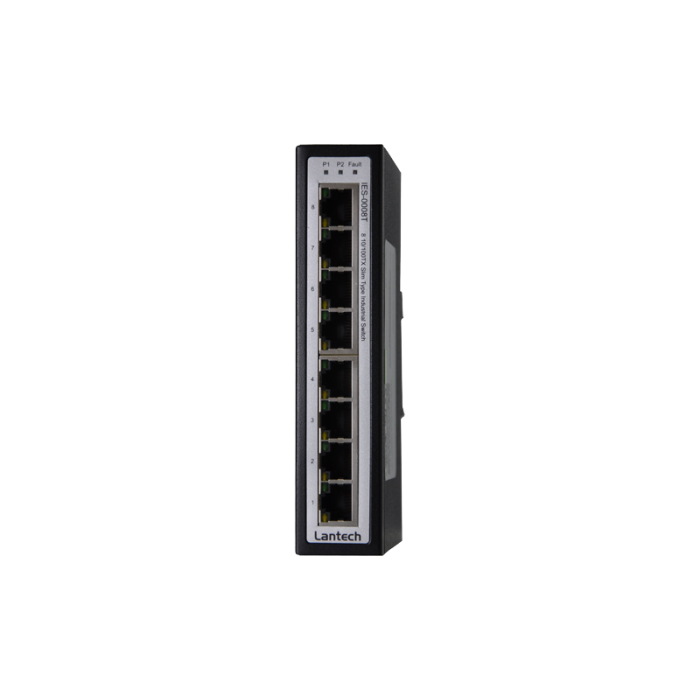

IES-0008T - 8 port slim style switch
- UL Class I Division II for Group A,B,C and D hazardous location - Wide-range redundant power with polarity reverse protection - DNV Type Approved for Ships, Craft and Off-shore Platforms
Standards IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE802.3x Flow Control and Back-pressure Switch Architecture Back-plane (Switching Fabric): 1.6Gbps Transfer Rate 14,880pps for Ethernet port 148,800pps for Fast Ethernet port Memory Buffer 448Kbits Mac Address 2K MAC address table Connectors 10/100TX: 8 x RJ-45 with auto MDI/MDI-X function Network Cable 10Base-T: 2-pair UTP/STP Cat. 3, 4, 5, 6cable EIA/TIA-568 100-ohm (100m) 100Base-TX: 2-pair UTP/STP Cat. 5, 6 cable EIA/TIA-568 100-ohm (100m) Protocol CSMA/CD LED Per unit: Power 1 (Green), Power 2 (Green), Fault (Red) Per port: Link/Active (Green), Full duplex/Collision (Yellow) Reserve polarity protection Present Overload current protection Present Power Supply 24VDC (9~56VDC),12~36VAC*, Redundant power with polarity reverse protect function and removable terminal block Power Consumption 4.71 Watts Operating Humidity 5% ~ 95% (Non-condensing) Operating Temperature -20°C~60°C / -4°F~140°F (Standard model) -40°C~75°C / -40°F~167°F (-E / DNV model) Storage Temperature -40°C~85°C / -40°F~185°F Case Dimension Metal case. IP-30, 30mm (W) x 95mm (D) x 140mm (H) EMI & EMS FCC Class A, CE EN61000-4-2 (ESD), CE EN61000-4-3 (RS), CE EN-61000-4-4 (EFT), CE EN61000-4-5 (Surge), CE EN61000-4-6 (CS), CE EN61000-4-8, CE EN61000-4-11, CE EN61000-4-12, CE EN61000-6-2, CE EN61000-6-4 Safety UL, cUL, CE/EN60950-1 UL Class I Division II for Group A,B,C and D hazardous location Stability Testing IEC60068-2-32 (Free fall) IEC60068-2-27 (Shock) IEC60068-2-6 (Vibration) MTBF 388566 hrs Warranty 5 years
More Information
Description
Standards IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE802.3x Flow Control and Back-pressure Switch Architecture Back-plane (Switching Fabric): 1.6Gbps Transfer Rate 14,880pps for Ethernet port 148,800pps for Fast Ethernet port Memory Buffer 448Kbits Mac Address 2K MAC address table Connectors 10/100TX: 8 x RJ-45 with auto MDI/MDI-X function Network Cable 10Base-T: 2-pair UTP/STP Cat. 3, 4, 5, 6cable EIA/TIA-568 100-ohm (100m) 100Base-TX: 2-pair UTP/STP Cat. 5, 6 cable EIA/TIA-568 100-ohm (100m) Protocol CSMA/CD LED Per unit: Power 1 (Green), Power 2 (Green), Fault (Red) Per port: Link/Active (Green), Full duplex/Collision (Yellow) Reserve polarity protection Present Overload current protection Present Power Supply 24VDC (9~56VDC),12~36VAC*, Redundant power with polarity reverse protect function and removable terminal block Power Consumption 4.71 Watts Operating Humidity 5% ~ 95% (Non-condensing) Operating Temperature -20°C~60°C / -4°F~140°F (Standard model) -40°C~75°C / -40°F~167°F (-E / DNV model) Storage Temperature -40°C~85°C / -40°F~185°F Case Dimension Metal case. IP-30, 30mm (W) x 95mm (D) x 140mm (H) EMI & EMS FCC Class A, CE EN61000-4-2 (ESD), CE EN61000-4-3 (RS), CE EN-61000-4-4 (EFT), CE EN61000-4-5 (Surge), CE EN61000-4-6 (CS), CE EN61000-4-8, CE EN61000-4-11, CE EN61000-4-12, CE EN61000-6-2, CE EN61000-6-4 Safety UL, cUL, CE/EN60950-1 UL Class I Division II for Group A,B,C and D hazardous location Stability Testing IEC60068-2-32 (Free fall) IEC60068-2-27 (Shock) IEC60068-2-6 (Vibration) MTBF 388566 hrs Warranty 5 years
