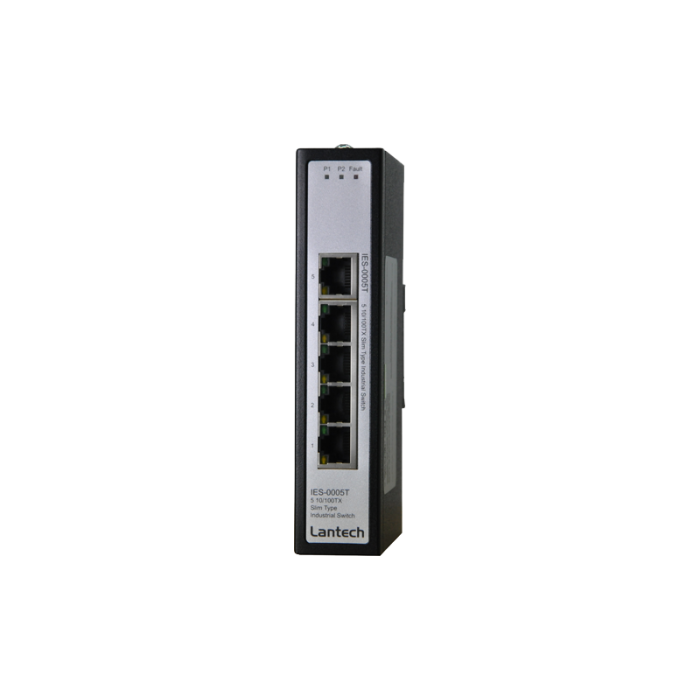

IES-0005T - 5 port slim type switch

A$195.00

In stock

SKU

IES-0005T

- UL Class I Division II for Group A,B,C and D hazardous location
- Wide-range redundant power with polarity reverse protection
- DNV Type Approved for Ships, Craft and Off-shore Platforms

Details

_Standards	_{IEEE 802.3 10Base-T Ethernet} _{IEEE 802.3u 100Base-TX Fast Ethernet} _{IEEE802.3x Flow Control and Back-pressure}
_{Switch Architecture}	_{Back-plane (Switching Fabric): 1.0Gbps} _{Packet throughput ability (Full-Duplex):} _{2.38Mpps @64bytes}
_{Transfer Rate}	_{14,880pps for Ethernet port} _{148,800pps for Fast Ethernet port}
_{Memory Buffer}	_384Kbits
_{Packet Buffer}	_1Mbits
_{Mac Address}	_{2K MAC address table}
_Connectors	_{10/100TX: 5 x RJ-45 with auto MDI/MDI-X function}
_{Network Cable}	_{10Base-T: 2-pair UTP/STP Cat. 3, 4, 5, 6 cable} _{EIA/TIA-568 100-ohm (100m)} _{100Base-TX: 2-pair UTP/STP Cat. 5, 6 cable} _{EIA/TIA-568 100-ohm (100m)}
_Protocol	_CSMA/CD
_LED	_{Per unit:} _{Power 1 (Green),} _{Power 2 (Green),} _{Fault (Red)} _{Per port:} _{Link/Active (Green),} _{Full duplex/Collision (Yellow)}
_{Operating Humidity}	_{5% ~ 95% (Non-condensing)}
_{Operating Temperature}	_{-20°C~60°C / -4°F~140°F (Standard model)} _{-40°C~75°C / -40°F~167°F (-E / DNV model)}
_{Storage Temperature}	_{-40°C~85°C / -40°F~185°F}
_{Reserve polarity protection}	_Present
_{Overload current protection}	_Present
_{Power Supply}	_{24VDC (9~56VDC), 12~36VAC*,Redundant power with polarity reverse protect function and removable terminal block}
_{Power Consumption}	_{2.93 Watts}
_{Case Dimension}	_{Metal case. IP-30, 30 (W) x 95 (D) x 140 (H) mm}
_Weight	_{430 g}
_{EMI & EMS}	_{FCC Class A,} _{CE EN61000-4-2 (ESD),} _{CE EN61000-4-3 (RS),} _{CE EN61000-4-4 (EFT),} _{CE EN61000-4-5 (Surge),} _{CE EN61000-4-6 (CS),} _{CE EN61000-4-8,} _{CE EN61000-4-11,} _{CE EN61000-4-12,} _{CE EN61000-6-2,} _{CE EN61000-6-4}
_Safety	_{UL, cUL, CE/EN60950-1} _{UL Class I Division II for Group A,B,C and D hazardous location}
_{Stability Testing}	_{IEC60068-2-32 (Free fall)} _{IEC60068-2-27 (Shock)} _{IEC60068-2-6 (Vibration)}
_MTBF	_{412590 hrs}
_Installation	_{DIN Rail and Wall Mount Design}
_Warranty	_{5 years}

More Information

Description

_Standards	_{IEEE 802.3 10Base-T Ethernet} _{IEEE 802.3u 100Base-TX Fast Ethernet} _{IEEE802.3x Flow Control and Back-pressure}
_{Switch Architecture}	_{Back-plane (Switching Fabric): 1.0Gbps} _{Packet throughput ability (Full-Duplex):} _{2.38Mpps @64bytes}
_{Transfer Rate}	_{14,880pps for Ethernet port} _{148,800pps for Fast Ethernet port}
_{Memory Buffer}	_384Kbits
_{Packet Buffer}	_1Mbits
_{Mac Address}	_{2K MAC address table}
_Connectors	_{10/100TX: 5 x RJ-45 with auto MDI/MDI-X function}
_{Network Cable}	_{10Base-T: 2-pair UTP/STP Cat. 3, 4, 5, 6 cable} _{EIA/TIA-568 100-ohm (100m)} _{100Base-TX: 2-pair UTP/STP Cat. 5, 6 cable} _{EIA/TIA-568 100-ohm (100m)}
_Protocol	_CSMA/CD
_LED	_{Per unit:} _{Power 1 (Green),} _{Power 2 (Green),} _{Fault (Red)} _{Per port:} _{Link/Active (Green),} _{Full duplex/Collision (Yellow)}
_{Operating Humidity}	_{5% ~ 95% (Non-condensing)}
_{Operating Temperature}	_{-20°C~60°C / -4°F~140°F (Standard model)} _{-40°C~75°C / -40°F~167°F (-E / DNV model)}
_{Storage Temperature}	_{-40°C~85°C / -40°F~185°F}
_{Reserve polarity protection}	_Present
_{Overload current protection}	_Present
_{Power Supply}	_{24VDC (9~56VDC), 12~36VAC*,Redundant power with polarity reverse protect function and removable terminal block}
_{Power Consumption}	_{2.93 Watts}
_{Case Dimension}	_{Metal case. IP-30, 30 (W) x 95 (D) x 140 (H) mm}
_Weight	_{430 g}
_{EMI & EMS}	_{FCC Class A,} _{CE EN61000-4-2 (ESD),} _{CE EN61000-4-3 (RS),} _{CE EN61000-4-4 (EFT),} _{CE EN61000-4-5 (Surge),} _{CE EN61000-4-6 (CS),} _{CE EN61000-4-8,} _{CE EN61000-4-11,} _{CE EN61000-4-12,} _{CE EN61000-6-2,} _{CE EN61000-6-4}
_Safety	_{UL, cUL, CE/EN60950-1} _{UL Class I Division II for Group A,B,C and D hazardous location}
_{Stability Testing}	_{IEC60068-2-32 (Free fall)} _{IEC60068-2-27 (Shock)} _{IEC60068-2-6 (Vibration)}
_MTBF	_{412590 hrs}
_Installation	_{DIN Rail and Wall Mount Design}
_Warranty	_{5 years}
