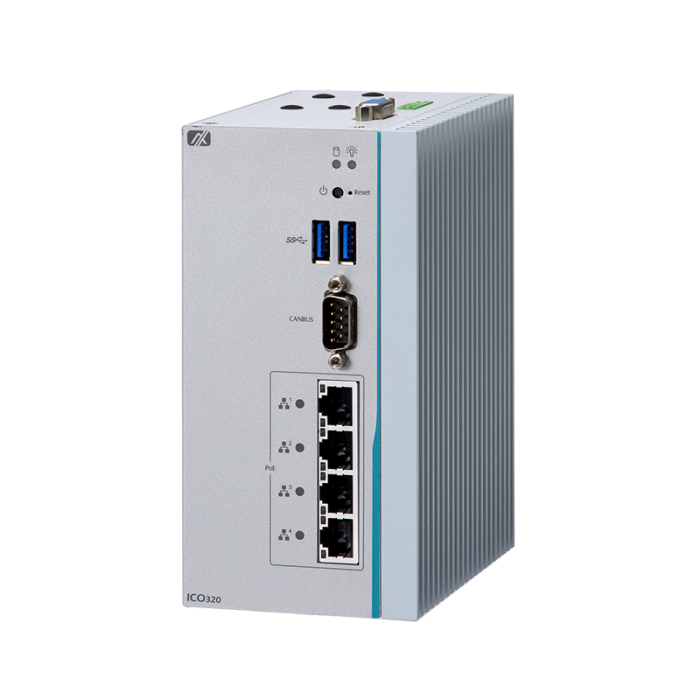

ICO320-83C DIN-Rail Fanless Embedded System

Details

The ICO320-83C is a fanless DIN-rail embedded system with four RJ-45 Gigabit PoE ports that can be used for facility monitoring systems, IP video surveillance, Access Points, and intercoms. For use in harsh environments, this tough industrial IoT gateway has an IP30-rated heavy-duty aluminium extrusion and steel inclosure. It can operate in temperatures ranging from -40°C to 70°C and can withstand up to 2G of vibration. It is powered by a high-performance Intel® Celeron® N3350 or Pentium® N4200 processor and has one DDR3L-1866 SO-DIMM for up to 8 GB of system memory.

Key Features:

Cost-effective with fanless and cableless design
Intel Celeron processor N3350 processor, reliable F1 stepping version CPU
4 RJ-45 Gigabit PoE ports
8-bit programmable DIO for IoT gateway applications
Wide operating temperature range from -40°C to +70°C
12 to 24 VDC wide range power input
Supports SocketCAN
AMS.AXView intelligent remote monitoring software for IIoT

More Information

brand

Axiomtek

Specifications

CPU	Intel® Celeron® processor N3350 (1.1 GHz, Dual Core)
Chipset	SoC integrated
System Memory	1 x SO-DIMM DDR3L slot, up to 8GB
COM	2 x RS-232/422/485
USB	2 x USB 3.0
Ethernet	4 x RJ-45 LAN (Intel® i211-AT for ICO320-83C) (Intel® i210-IT for ICO320-83C-WT)
PoE	4 x RJ-45 gigabit PoE (optional); 802.3at 30W by 4 ports (Intel® i211-AT for ICO320-83C) (Intel® i210-IT for ICO320-83C-WT)
CANbus	1 x CAN 2.0 A/B (DB9 connector) (optional)
Digital I/O	1 x DI/DO (8-bit programmable, DB9 female connector)
Analog Input	N/A
Display	1 x VGA
Wireless	1 x Full-size PCI Express Mini Card slot with SIM slot (for wireless module ) 1 x Half-size PCI Express Mini Card slot with mSATA (for wireless module or half size mSATA)
Storage	2.5" SATA drive (9.5 mm height) Half-size mSATA shared with mPCIe slot
Others	1 x reset button 1 x power button
Power Supply	PoE version: 12 to 24 VDC, 4.89 to 2.45A (58.68W to 58.88W) LAN version: 12 to 24 VDC, 2.40 to 1.21A (28.80W to 29.04W) Protection: OVP (±20%), reverse protection, UVP, OCP, RPP
Watchdog Timer	255 levels, 1 to 255 sec.
Construction	Aluminum extrusion and heavy-duty steel, IP40
Operating Temperature	-20°C to +70°C (-4°F to +158°F) ICO320-83C-WT: -40°C to +70°C (-40°F to +158°F)
Relative Humidity	5% to 95%, non-condensing
Vibration	2 Grms with SSD (5 to 500Hz, random wave) 2 Grms with HDD (10 to 150Hz, sine wave)
Dimensions (W x D x H)	PoE Version: 79 x 110 x 155 mm (3.11" x 4.33" x 6.1") LAN Version: 48 x 110 x 155 mm (1.88" x 4.33" x 6.1")
Weight (net/gross)	PoE Version: 1.2 kg (2.2 lb)/1.70 kg (3.3 lb) LAN Version: 1.0 kg (2.2 lb)/1.50 kg (3.3 lb)
Certifications	CE, FCC
EOS Support	Windows® 10 IoT Linux support package(By Request)
Software Support	AXView 2.0
Mounting	DIN rail Wall Mounting

Description

The ICO320-83C is a fanless DIN-rail embedded system with four RJ-45 Gigabit PoE ports that can be used for facility monitoring systems, IP video surveillance, Access Points, and intercoms. For use in harsh environments, this tough industrial IoT gateway has an IP30-rated heavy-duty aluminium extrusion and steel inclosure. It can operate in temperatures ranging from -40°C to 70°C and can withstand up to 2G of vibration. It is powered by a high-performance Intel® Celeron® N3350 or Pentium® N4200 processor and has one DDR3L-1866 SO-DIMM for up to 8 GB of system memory.

Key Features:

Cost-effective with fanless and cableless design
Intel Celeron processor N3350 processor, reliable F1 stepping version CPU
4 RJ-45 Gigabit PoE ports
8-bit programmable DIO for IoT gateway applications
Wide operating temperature range from -40°C to +70°C
12 to 24 VDC wide range power input
Supports SocketCAN
AMS.AXView intelligent remote monitoring software for IIoT
