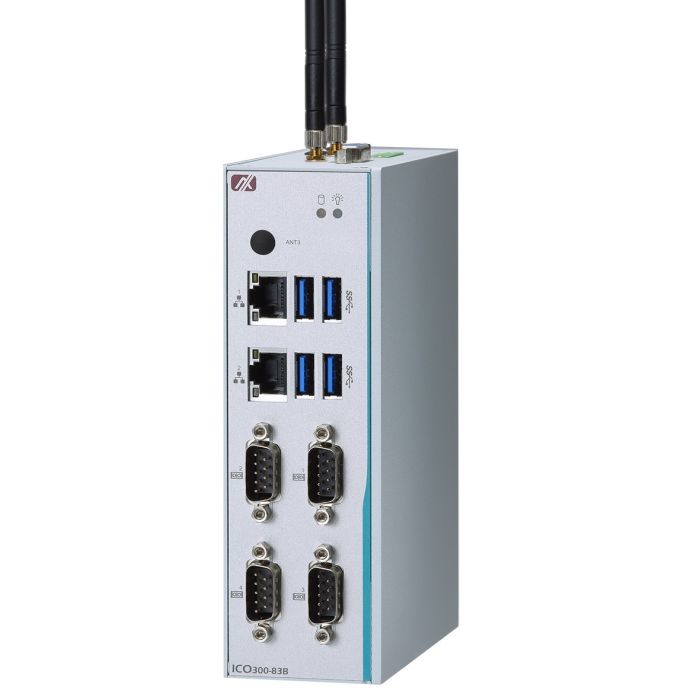

ICO300-83B DIN-Rail Fanless Embedded System
Intel Celeron Processor N3350 or Pentium Processor N4200, Isolated COM, LAN, and DIO
Key Features:
- Cost-effective with fanless and cableless design
- Intel Celeron processor N3350 or Pentium processor N4200, reliable F1 stepping version CPU
- 4 isolated COM, 4 USB, and 2 GbE LAN
- 8-bit programmable DIO for IoT gateway applications
- Wide operating temperature range from -40°C to +70°C
- 12 to 24 VDC wide range power input
- OVP, UVP, OCP, RPP power protection design
- AMS.AXView intelligent remote monitoring software for IIoT
The ICO300-83B is powered by the low-power consumption Intel Celeron processor N3350 (Formerly codename: Apollo Lake). With an extended temperature range of -20°C to 70°C (-40°C to +70°C for option), a wide voltage range of 12V-24V DC power input with overvoltage and reverse protection, and up to 2G vibration endurance, the ICO300-proven 83B's rugged construction ensures harsh operating conditions. It has one DDR3L-1866 SO-DIMM slot that can hold up to 8 GB of system memory. Furthermore, the ICO300-83B has two full-size PCI Express Mini Card slots, one for a mSATA storage card and the other for 3G/GPRS/Wi-Fi, allowing it to provide flexible communication and data transfer options when used as an IIoT gateway.
Key Features:
- Cost-effective with fanless and cableless design
- Intel Celeron processor N3350 or Pentium processor N4200, reliable F1 stepping version CPU
- 4 isolated COM, 4 USB, and 2 GbE LAN
- 8-bit programmable DIO for IoT gateway applications
- Wide operating temperature range from -40°C to +70°C
- 12 to 24 VDC wide range power input
- OVP, UVP, OCP, RPP power protection design
- AMS.AXView intelligent remote monitoring software for IIoT
| brand | Axiomtek | ||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||
| Description |
The ICO300-83B is powered by the low-power consumption Intel Celeron processor N3350 (Formerly codename: Apollo Lake). With an extended temperature range of -20°C to 70°C (-40°C to +70°C for option), a wide voltage range of 12V-24V DC power input with overvoltage and reverse protection, and up to 2G vibration endurance, the ICO300-proven 83B's rugged construction ensures harsh operating conditions. It has one DDR3L-1866 SO-DIMM slot that can hold up to 8 GB of system memory. Furthermore, the ICO300-83B has two full-size PCI Express Mini Card slots, one for a mSATA storage card and the other for 3G/GPRS/Wi-Fi, allowing it to provide flexible communication and data transfer options when used as an IIoT gateway. Key Features:
|
