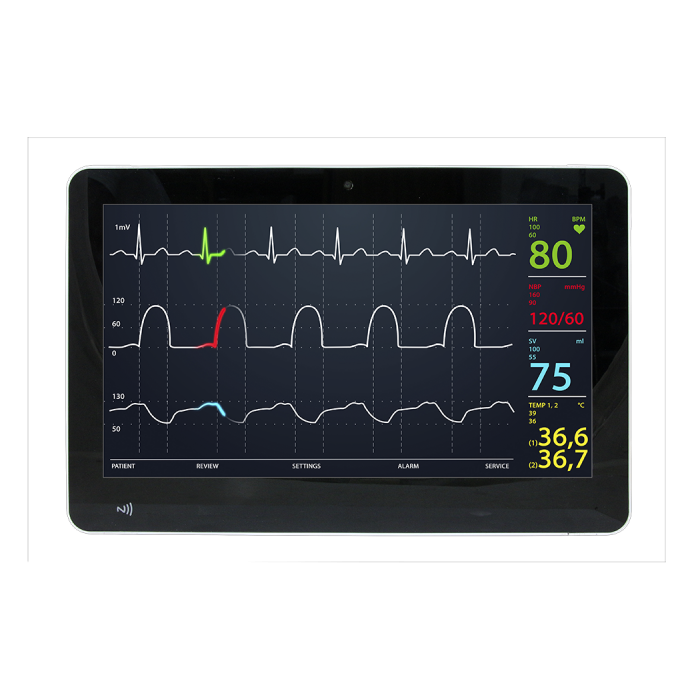

The Avalue HID-1540 Medical Panel PC is engineered for healthcare environments, blending reliability with advanced technology to support critical applications. Its 15.6" full HD display offers clear, detailed visuals, optimizing user experience and medical precision. Designed for hygienic environments, the HID-1540 features an antibacterial enclosure, a fanless design, and an IP65-rated front panel, ensuring robust protection against dust and liquid intrusion.
Equipped with Intel Core processors, the HID-1540 delivers powerful performance, streamlining patient data management, telemedicine, and diagnostic imaging workflows. This panel PC also supports multiple connectivity options, including USB, HDMI, and LAN, facilitating seamless integration with medical devices and networks. The HID-1540’s user-friendly touch interface provides medical personnel swift access to critical information, enhancing patient care and operational efficiency.
1 x 262-pin DDR5 4800MHz SO-DIMM socket, supports up to 32GB Max (Min 8GB)
I/O Chipset
IT5782VG
Watchdog Timer
H/W Reset, 1sec. – 65535sec./min. 1sec. or 1min. step
H/W Status Monitor
CPU temperature monitoring, voltage monitoring
SBC
HID-2340 motherboard
TPM
Onboard NuvoTon NPCT754AADYX, supports TPM 2.0
Expansion
Expansion
1 x M.2 Key B 3042/3052/2280, 1 x M.2 Key E for Wi-Fi
Storage
Storage
1 x M.2 Key M storage (optional)
Audio
Audio Interface
Audio combo jack
Audio Codec
Realtek ALC888S
Speaker Output
2 x 5W
Ethernet
LAN Chipset
1 x Intel® I225LM, 1 x Intel® I226LM
Ethernet Interface
10/100/1000/2500 Base-Tx GbE compatible
LAN Port
2 x RJ-45
Power Requirement
Adapter
Medical grade, Input: 100-240V~, 2.0-1.0A, 50-60Hz, Output: 19V 4.73A 90W
Power Mode
AT/ATX (ATX is default setting)
DC Input Connector
Lockable DC Jack
DC Input
+12V~+24V
Software Support
OS
Win10 / Win11 / Linux
Certification
Certification Information
CE: IEC/EN60601-1-2, FCC: Part 15 Class B, UL60601-1
External I/O
Wireless LAN
Optional 802.11abgn+acR2+axR2 Wi-Fi 6E BT5.2
Panel
LCD Size
15.6"
Display Type
Full HD
Resolution
1920 x 1080
Pixel pitch
0.17925 x 0.17925 mm
Luminance
300 cd/m²
Contrast ratio
1000
Viewing angle
89(U), 89(D), 89(L), 89(R)
Response time
25 ms
Backlight
LED
Touch Type
Projective capacitive multi-touch, up to 10 points
Touch Light Transmission
85%
Touch Controller
USB touch (EETI)
I/O
COM Port
1 x RS-232/422/485
USB Port
1 x USB 2.0, 3 x USB 3.0, 1 x USB Type C
Mechanical & Environmental
Operating Temp.
0°C ~ 40°C (32°F ~ 104°F)
Storage Temp.
-30°C ~ 70°C (-22°F ~ 158°F)
Operating Humidity
0% ~ 90% Relative Humidity, Non-condensing
Weight
2.8 kg
Vibration Test
With SSD/mSATA: 1.5Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 30min/axis
Shock Test
With CF/SSD: 10Grms, IEC 60068-2-27, Half Sine, 11ms
IP Rating
Front IP65, Back IP54
VESA
75x75, 100x100
Dimension (W x L x H)
400 x 263 x 42.5 mm
System Fan
Fanless
Construction - Front
White Plastic
Construction - Rear
White Plastic
Finishing
Anti-Microbial
Fanless
Yes
Color
White
