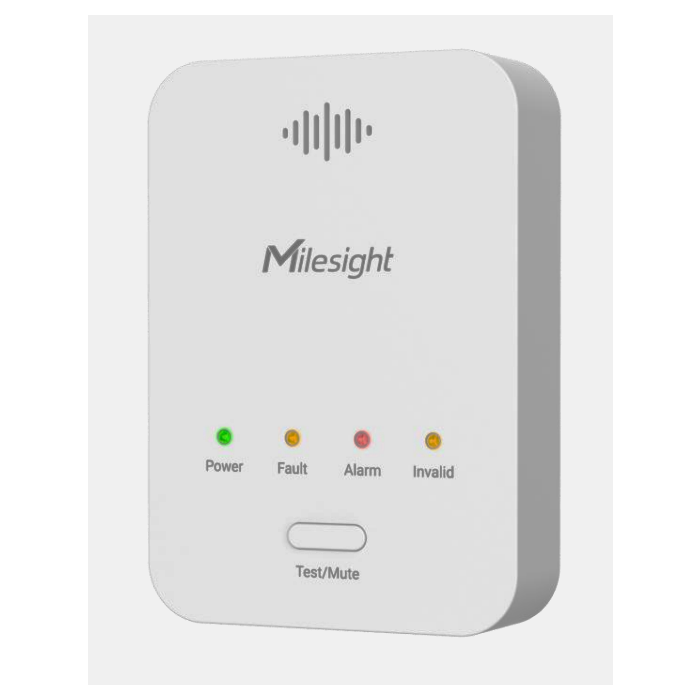

The GS101 is a residential LoRaWAN gas detector that can identify and alert users to gas leaks. The detector will sound an alert with a buzzer and an LED light when the concentration of gas leak reaches the predetermined threshold. It also enables controlling outputs to shut off the gas valve and turn on the vent fans to ward off mishaps. In addition to local alarms, the GS101 uses LoRaWAN technology to remotely communicate the device's normal status and alert signals. Users can view all sensor data and remotely manage the device by integrating with Milesight's LoRaWAN gateway and Milesight's IoT Cloud service.
Key Features:
Built-in semiconductor gas detection sensor with a 5-year-long life expectancy and no calibration needed
High sensitivity gas leak detection and support 8% LEL alarm threshold
Equipped with buzzer and light indicators to indicate the device powered, faulty, alarmed, and invalid status
Equipped with a test button to test the device’s normal or abnormal status
Equipped with outputs for controlling external appliances such as gas valves and vent fans, reducing potential accidents
Store 800 historical records locally in 7 types and unable to reset
Built-in NFC for easy configuration
Compatible with standard LoRaWAN gateways and network servers
Quick and easy management with Milesight IoT Cloud solution
Alarm Records, Alarm Dismissed Records, Device Fault Records, Device Fault Recovered Records, Device Power On Records, Device Power Off Records, Device Invalid Records
Physical Characteristics
Power Connector
DC Jack Connector
Power Supply
12VDC, 1A
Operating Temperature
-10°C to +55°C
Relative Humidity
0% to 95% (non-condensing)
Ingress Protection
IP30
Dimension
120 × 85 × 32.5 mm (4.72 × 3.35 × 1.28 in)
Material & Color
PC+ABS (Flame Retardant), White
Installation
Wall Mounting
Description
The GS101 is a residential LoRaWAN gas detector that can identify and alert users to gas leaks. The detector will sound an alert with a buzzer and an LED light when the concentration of gas leak reaches the predetermined threshold. It also enables controlling outputs to shut off the gas valve and turn on the vent fans to ward off mishaps. In addition to local alarms, the GS101 uses LoRaWAN technology to remotely communicate the device's normal status and alert signals. Users can view all sensor data and remotely manage the device by integrating with Milesight's LoRaWAN gateway and Milesight's IoT Cloud service.
Key Features:
Built-in semiconductor gas detection sensor with a 5-year-long life expectancy and no calibration needed
High sensitivity gas leak detection and support 8% LEL alarm threshold
Equipped with buzzer and light indicators to indicate the device powered, faulty, alarmed, and invalid status
Equipped with a test button to test the device’s normal or abnormal status
Equipped with outputs for controlling external appliances such as gas valves and vent fans, reducing potential accidents
Store 800 historical records locally in 7 types and unable to reset
Built-in NFC for easy configuration
Compatible with standard LoRaWAN gateways and network servers
Quick and easy management with Milesight IoT Cloud solution
