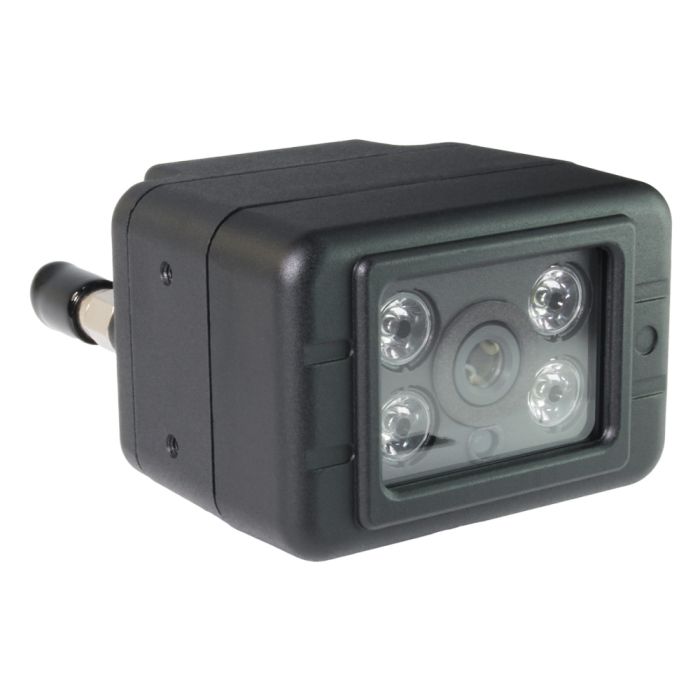

GPCL-029A2GN - 2MP H.264 IP68 POE LPR Fixed Lens

Be the first to review this product

A$675.00

In stock

SKU

GPCL-029A2GN

2MP H.264 POE IP68 Vehicle Camera

Key Features:

1/2.7” 2.0 Megapixel Progressive CMOS Sensor
Fixed lens
Up to 30fts@1920x1080
TDN Filter
4 Power IR LED (850nm)
H.264 Dual Stream
Supports RTSP, ONVIF
IP68, Nitrogen Filled-In
2.9mm Lens Std
Support POE

** 8mm, 12mm, 16mm and 26mm lenses are for LPR application.

Details

The GPCL-029A2GN is used to capture blind spots on special vehicles used in harsh environments. It is the best camera designed for IP68 waterproof and dustproof conditions, allowing it to be installed outside heavy equipment or garbage trucks and operate without issue even in extreme weather conditions such as snow, rain, and direct sunlight.

Key Features:

- 1/2.7” 2.0 Megapixel Progressive CMOS Sensor
- Fixed lens
- Up to 30fts@1920x1080
- TDN Filter
- 4 Power IR LED (850nm)
- H.264 Dual Stream
- Supports RTSP, ONVIF
- IP68, Nitrogen Filled-In
- 2.9mm Lens Std
- Support POE

** 8mm, 12mm, 16mm and 26mm lenses are for LPR application.

More Information

More Information
brand	GPI Korea
Specifications	CAMERA Lens 2.9mm Image Sensor 1/2.7” 2.1Megapixel Progressive CMOS Sensor Number of Effective Pixels 1920(H) x 1080(V) approx. 2.0M pixels Min. Illumination Color Mode: 0.2 Lux B/W Mode: 0.02 Lux Scanning Mode Progressive Scan Day and Night Mode Automatic, Day, Night, 8 IR LED Auto Exposure Mode Automatic, Manual Shutter Speed Control 1/25 ~ 1/10,000 Auto White Balance Mode Automatic, Manual Digital Zoom Yes by on-screen Back Light Compensation OFF/HLC/BLC/WDR( <30FPS ) DNR OFF/LOW/MIDDLE/HIGH Image Effect Mirror, Flip Privacy Mask 1 Area Selection Video Motion Detection 1 Area Selection (8 10=80 AREA) Lens Shading ON/OFF ACE OFF/LOW/MIDDLE/HIGH Motion ON/OFF Audio G.711 NETWORK Video Compression H.264(Base line profile), MJPEG Video Resolution (30fps@19201080P) H.264 - Primary : 1920 x1080, 1280x720, 640x480, 320x240 H.264 secondary 640x480, 320x240 Video Resolution (60fps@1280720P) (WDR not used) H.264 - Primary : 1280720P, 640x480, 320x240 H.264 secondary 640x480, 320x240 Video Streaming H.264/H.264 or H.264/MJPEG Dual Streaming Login Authority Administrator, Operator, Viewer Security ID/Password Network Time Sync Synchronize Computer/NTP Server, Manual Remote Upgrade Using Web Browser Protocols TCP/IP, UDP, IPv4, HTTP, UPnP, RTP, RTSP, RTCP, DHCP Client Software Built-In Web, ONVIF Compatible 3rd Party VMS Max. User Connection 4 Users SDK Support CGI Command, ONVIF Compliant OPERATION ENVIRONMENTS Operating Humidity 0~80% (non-condensing) Operating Temperature -20℃~ +70℃ PoE Support DC12V Optional Power Consumption 1.6W
Description	The GPCL-029A2GN is used to capture blind spots on special vehicles used in harsh environments. It is the best camera designed for IP68 waterproof and dustproof conditions, allowing it to be installed outside heavy equipment or garbage trucks and operate without issue even in extreme weather conditions such as snow, rain, and direct sunlight. Key Features: - 1/2.7” 2.0 Megapixel Progressive CMOS Sensor - Fixed lens - Up to 30fts@1920x1080 - TDN Filter - 4 Power IR LED (850nm) - H.264 Dual Stream - Supports RTSP, ONVIF - IP68, Nitrogen Filled-In - 2.9mm Lens Std - Support POE ** 8mm, 12mm, 16mm and 26mm lenses are for LPR application.

Reviews

Write Your Own Review

Downloads

CGI Commands

Datasheet

IP Camera Manager

User Guide
