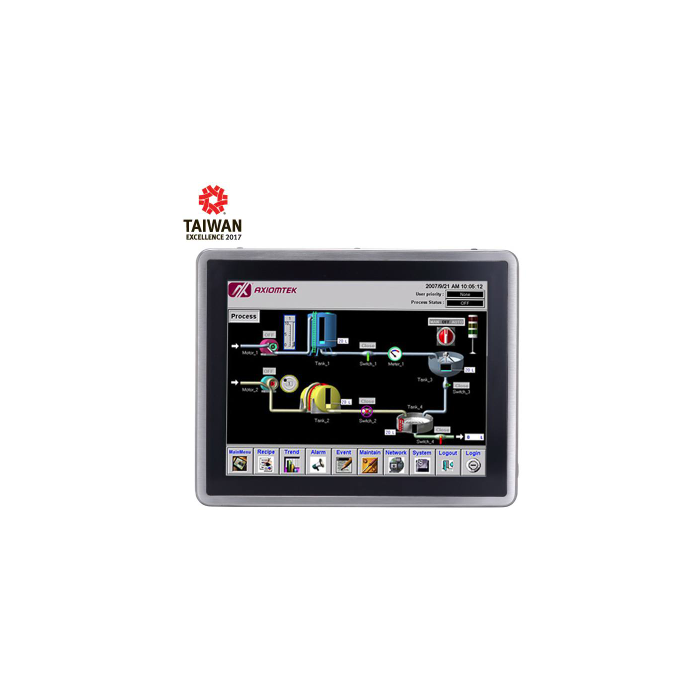

GOT812L-880 12.1" XGA IP66 Stainless Panel PC

A$0.00

In stock

SKU

GOT812L-880

12.1" XGA TFT IP66 & IP69K-rated Stainless Steel Fanless PCT (or Resistive Touch) Panel Computer with Intel® Core™ i5 Processor and Flat Bezel Design (-20°C to +50°C)

Details

12.1" XGA TFT IP66 & IP69K-rated Stainless Steel Fanless PCT (or Resistive Touch) Panel Computer with Intel® Core™ i5 Processor and Flat Bezel Design (-20°C to +50°C)

· 12.1" XGA TFT flat bezel LCD display

· Sunlight readable solution with 800 nits of brightness

· IP66/IP69K-rated (NEMA 4X) water/dust/corrosion-proof design

· Full stainless steel enclosure with type 316

· -20°C to +50°C wide operating temperature range

· Fanless design with Intel® Core™ i5 processor

· Optional Wi-Fi/3G kit for wireless network connectivity

· 9 to 36 VDC wide range power input

· M12 type connectors for harsh environments

More Information

Brand

Axiomtek

Specifications

LCD Panel	12.1" XGA TFT LCD 800 nits (GOT812H-880) 500 nits (GOT812L-880) 1024 x 768 pixels
CPU	Intel® Core™ i5-4300U 1.9 GHz (Haswell ULT)
Chipset	SoC integrated
System Memory	1 x 204-pin SO-DIMM DDR3L-1600, up to 8 GB
BIOS	AMI
COM	2 x RS-232/422/485 (default RS-232, M12 A-coded)
USB	4 x USB 2.0 (M12 A-coded)
Ethernet	1 x 10/100/1000 Mbps (Intel® i218-LM; M12 X-coded)
Display	N/A
Audio	N/A
Storage	1 x 2.5" SSD
Expansion	2 x PCI Express Mini Card slot
Others	N/A
Touchscreen	5-wire resistive touch or projected capacitive multi-touch
Front Bezel	Stainless type 316
Power Supply	9 to 36 VDC
Power Comsumption	56W
Watchdog Timer	255 levels, 1 to 255 sec.
Operating Temperature	-20°C to +50°C (-4°F to +122°F)
Relative Humidity	10% to 95% @ +40°C, non-condensing
Vibration	2G, 5 - 500Hz, random for 2.5" SSD
Dimensions (W x D x H)	318 x 248.5 x 75.3 mm (12.52" x 9.78" x 2.96")
Weight (net/gross)	4.27 kg (9.41 lb)/5.77 kg (12.72 lb)
Certifications	CE
EOS	Windows® 10 IoT, Windows® 10, Windows® 8/8.1, WE8S, Windows® 7, WES 7
Mounting	Suspension VESA mount

Description

12.1" XGA TFT IP66 & IP69K-rated Stainless Steel Fanless PCT (or Resistive Touch) Panel Computer with Intel® Core™ i5 Processor and Flat Bezel Design (-20°C to +50°C)

· 12.1" XGA TFT flat bezel LCD display

· Sunlight readable solution with 800 nits of brightness

· IP66/IP69K-rated (NEMA 4X) water/dust/corrosion-proof design

· Full stainless steel enclosure with type 316

· -20°C to +50°C wide operating temperature range

· Fanless design with Intel® Core™ i5 processor

· Optional Wi-Fi/3G kit for wireless network connectivity

· 9 to 36 VDC wide range power input

· M12 type connectors for harsh environments
