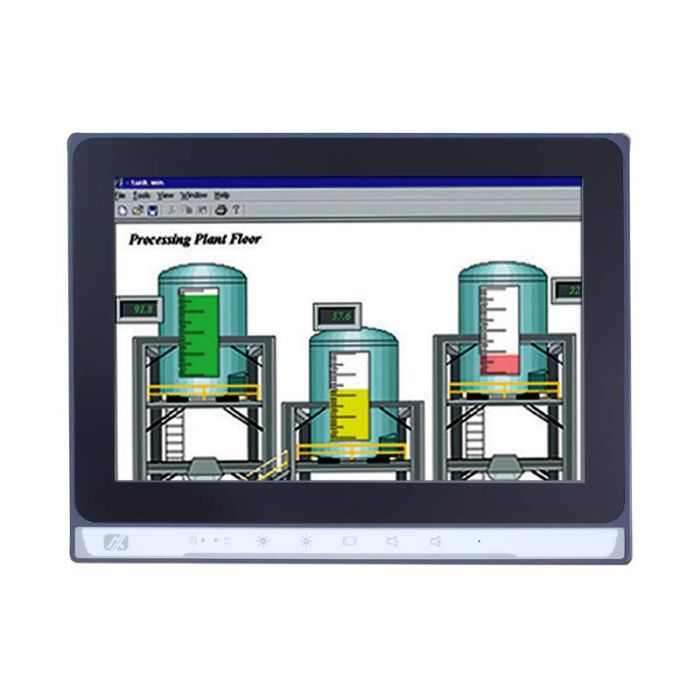

GOT5103W-845 10.1" WXGA Fanless Panel PC
10.1" WXGA TFT Fanless Touch Panel Computer with Intel® Celeron® N3060 Processor or Intel® Pentium® N3710 Processor
10.1" WXGA TFT Fanless Touch Panel Computer with Intel® Celeron® N3060 Processor or Intel® Pentium® N3710 Processor
· 10.1" WXGA wide screen TFT LCD display with LED backlight
· Projected capacitive multi-touch
· Fanless design with Intel® Celeron® N3060 processor or Intel® Pentium® N3710 processor
· 1 mSATA and 1 half-slim SATA SSD (optional)
· 2 GbE LAN, 4 USB, 2 COM, 2W speakers and optional Mic-in
· IP65-rated front bezel and IPX1 full enclosure design
· Supports panel mount, wall mount, VESA arm and desktop stand
· External AT/ATX mode selection switch
More Information
| Brand |
Axiomtek |
| Specifications |
| LCD Panel |
- 10.1" WXGA TFT LCD withg LED backlight
- 350 nits
- 1280 x 800 pixels
|
| CPU |
- Intel® Celeron® processor N3060 (up to 2.48 GHz)
- Intel® Pentium® processor N3710 (up to 2.56 GHz)
|
| Chipset |
|
| System Memory |
- 1 x 204-pin SO-DIMM DDR3L-1600, up to 8 GB
|
| BIOS |
|
| COM |
- 1 x RS-232
- 1 x RS-232/422/485
|
| USB |
|
| Ethernet |
- 2 x 10/100/1000 Mbps (Intel® i211-AT)
|
| Display |
|
| Audio |
|
| Storage |
- 1 x Half-slim SATA SSD (for GOT5103W-845-PCT-J, optional)
- 1 x mSATA
|
| Expansion |
- 1 x Full-size PCI Express Mini Card with mSATA
- 1 x Full-size PCI Express Mini Card with SIM slot
|
| Others |
- 2 x Speaker
- WLAN antenna
- 1 x Switch for power On/Off
- 1 x AT/ATX mode selection switch
|
| Touchscreen |
- Projected capacitive multi-touch
|
| Front Bezel |
- IP65, plastic front bezel
|
| Power Supply |
- AC version: 100 to 240 VAC-DC, 60W power adapter
- DC version: 24 VDC with over current protection fuse
|
| Power Comsumption |
|
| Watchdog Timer |
- 255 levels, 0 to 255 sec.
|
| Operating Temperature |
- 0°C to +50°C (+32°F to +122°F)
- 0°C to + 45°C (+32°F to + 113°F) (GOT5103W-845 N3710)
|
| Relative Humidity |
- 20% to 90% @ 40°C; non-condensing
|
| Vibration |
- 2G, 10 - 500Hz, random for SSD
|
Dimensions
(W x D x H) |
- 260.8 x 38 x 194.1mm (10.27" x 1.50" x 7.65")
|
| Weight (net/gross) |
- 1.08 kg (2.38 lb)/2.18 kg (4.8 lb)
|
| Certifications |
|
| EOS |
- Windows® 10, Windows® 8.1, WE8S, Windows® 7, WES 7
|
| Mounting |
- Panel mount
- Wall mount
- VESA arm
- Desktop stand
|
|
| Description |
10.1" WXGA TFT Fanless Touch Panel Computer with Intel® Celeron® N3060 Processor or Intel® Pentium® N3710 Processor
· 10.1" WXGA wide screen TFT LCD display with LED backlight
· Projected capacitive multi-touch
· Fanless design with Intel® Celeron® N3060 processor or Intel® Pentium® N3710 processor
· 1 mSATA and 1 half-slim SATA SSD (optional)
· 2 GbE LAN, 4 USB, 2 COM, 2W speakers and optional Mic-in
· IP65-rated front bezel and IPX1 full enclosure design
· Supports panel mount, wall mount, VESA arm and desktop stand
· External AT/ATX mode selection switch
|
