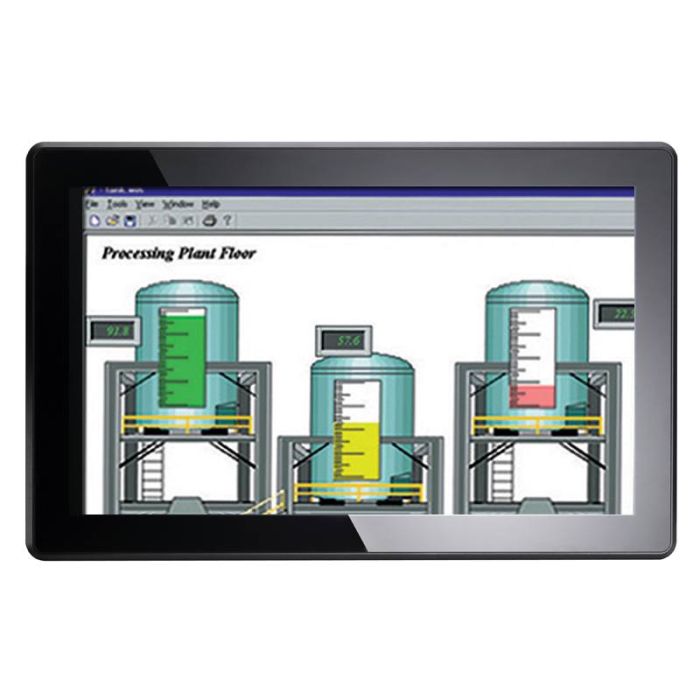

GOT3157W-834-PCT 15.6" Fanless Panel PC
15.6" WXGA TFT Fanless Multi-touch Panel Computer with Intel® Celeron® Processor J1900 (-10°C to +50°C)
15.6" WXGA TFT Fanless Multi-touch Panel Computer with Intel® Celeron® Processor J1900 (-10°C to +50°C)
● 15.6" WXGA TFT with projected capacitive multi-touch
● Fanless design with Intel® Celeron® processor J1900 4C @ 2.0 GHz (Bay Trail)
● 2.5" SATA HDD & CFast™ or mSATA
● WLAN/3G module & antenna (optional)
● 2 GbE LAN, 2 USB 2.0, 2 USB 3.0 and 2 COM
● IP65 front bezel
● Supports panel mount and optional VESA arm/desktop stand/wall mount
● -10°C to +50°C wide operating temperature range
● Adjust RS-232/422/485 setting via BIOS
More Information
| Brand |
Axiomtek |
| Specifications |
|
Front Bezel
|
IP65 front bezel
|
|
LCD Panel
|
Display Type
|
15.6" WXGA TFT LCD
|
|
|
Brightness (cd/m2 )
|
400 nits
|
|
|
Resolution
|
1366 x 768
|
|
Main System
|
CPU
|
Intel® Bay Trail-D Celeron® processor J1900 4C @ 2.0 GHz
|
|
|
Chipset
|
SoC Intergrated
|
|
|
System Memory
|
1 x 204-pin DDR3L-1333/1600 SO-DIMM, up to 8GB
|
|
|
BIOS
|
AMI UEFI BIOS
|
|
|
Storage
|
1 x 2.5" SATA HDD
1 x CFast™ or 1 x mSATA
|
|
|
Watchdog Timer
|
255 levels, 0 to 255 sec.
|
|
|
Onboard Graphics
|
Integrated Intel® HD Graphics
|
|
I/O Connector
|
2 x RS-232/422/485 (COM 1/2)
1 x switch for power on/off (ATX)
1 x audio (Line-out)
2 x USB 3.0
2 x USB 2.0
2 x 10/100/1000 Mbps Ethernet (Intel® i210-IT)
|
|
TPM
|
N/A
|
|
Expansion Interface
|
2 x PCI Express Mini Card slot
|
|
Touchscreen
|
Projected Capacitive multi-touch
|
|
Power Supply
|
1. DC version: 9 to 36 VDC
2. AC version: 12 VDC with adapter
|
|
Power Consumption
|
45 W
|
|
Dimensions
|
396 mm (15.6") (W) x 53.9 mm (2.12") (D) x 247.1 mm (9.73") (H)
|
|
Packing Dimensions
|
525 mm (20.67") (W) x 470 mm (18.51") (D) x 186 mm (7.32") (H)
|
|
Weight
|
(net/gross) 5.0 kg (11.02 lb)/7.0 kg (15.43 lb)
|
|
Environment
|
Operating temperature: -10°C to +50°C (+14°F to +122°F)
|
|
Relative humidity:
|
20% to 90% @ +40°C; non-condensing
|
|
Operation vibration:
|
2G, 10 to 500Hz, random for CompactFlash™
|
|
Certificate
|
CE
|
|
| Description |
15.6" WXGA TFT Fanless Multi-touch Panel Computer with Intel® Celeron® Processor J1900 (-10°C to +50°C)
● 15.6" WXGA TFT with projected capacitive multi-touch
● Fanless design with Intel® Celeron® processor J1900 4C @ 2.0 GHz (Bay Trail)
● 2.5" SATA HDD & CFast™ or mSATA
● WLAN/3G module & antenna (optional)
● 2 GbE LAN, 2 USB 2.0, 2 USB 3.0 and 2 COM
● IP65 front bezel
● Supports panel mount and optional VESA arm/desktop stand/wall mount
● -10°C to +50°C wide operating temperature range
● Adjust RS-232/422/485 setting via BIOS
|
