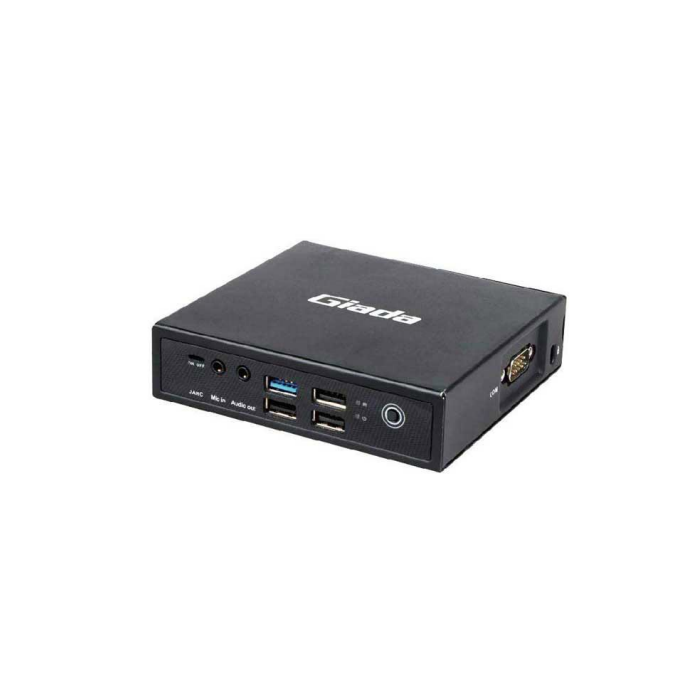

F202 Ultra Compact and Fanless Player
Fanless compact PC, Atom x5-Z8350 (Cherry Trail) Processor
Fanless compact PC, Atom x5-Z8350 (Cherry Trail) Processor
· Intel Cherry Trail Processor
· Onboard 2GB/4GB DDR3L Memory
· 1 x HDMI, 1 x VGA
· eMMC Onboard 32GB/64GB, 1 x TF Card Reader
· 1 x USB3.0, 3 x USB2.0, 1 x RS232
· 1 x RJ45, 1 x Mini-PCIe for 3G/4G, 1 x SIM slot
More Information
| brand |
Giada Technology Inc. |
| Specifications |
| F202 |
F202 |
| Processor |
CPU |
Intel® Celeron N2807 |
| Frequency |
1.58 GHz (up to 2.16 GHz) |
| BIOS |
AMI Source Code |
| Chipset |
SOC |
| Memory |
Type |
DDR3L-1600MHz |
| Socket |
2GB Onboard |
| Max Size |
2GB |
| Graphics |
GPU |
Intel® HD Graphics |
| Graphic Engine |
DirectX11, OpenGL4.0 ,OpenCL 1.2 |
| HDMI |
1 x HDMI(Max.2560 x 1600@24Hz) |
| VGA |
1 x VGA(Max.2048 x 1536@60Hz) |
| Network |
Controller |
Realtek RTL8111F Gigabit Ethernet |
| Interface |
1 x RJ45 |
| I/O |
USB |
1 x USB 3.0, 3 x USB 2.0 |
| Serial Port |
1 x RS232 |
| Audio |
1 x MIC-IN, 1 x AUDIO-OUT |
| Mini-PCIe |
1 x Fulll-size Mini-PCIe for 3G/4G |
| SIM |
1 x SIM Slot |
| WiFi+BT on Board |
1 x WiFi +BT Module Onboard |
| Storage |
EMMC |
32GB/64GB Onboard |
| Card Reader |
1 x TF Card Reader |
| JAHC Tech |
WatchDog Timer |
0~255 Second Time Out Support |
| Auto Power On |
Power Activated Automatically Start |
| RTC |
Set Up Independently Every day, A Week as a Cycle |
| Remote Control |
By IR Controller for Power On |
| Wake On Lan |
Yes |
| Operation System |
Windows |
Windows 8.1/10(64-bit) |
| Android |
Not supported |
| Linux |
Supported |
| Power |
Power Type |
DC-IN |
| Power Adapter |
12V/2A |
| Mechanical |
Dimensions (W × D × H) |
116.6mm x 107.4mm x 30mm(4.59"x4.23"x1.18") |
| Fanless |
Yes |
| Construction |
Metal |
| Mounting(Optional) |
Desk/Wall Mounting and VESA Mounting Kit (JT NUC-JC530) |
| Color |
Black |
| Environment |
Operating Temperature |
0℃ ~ 40℃ ( 32 ℉ ~ 104 ℉ ) at 0.7m/s Air Flow |
| Relative Humidity |
95%@40℃ (non-condensing) |
| Certification |
Certification |
CE, FCC Class B, CCC |
|
| Description |
Fanless compact PC, Atom x5-Z8350 (Cherry Trail) Processor
· Intel Cherry Trail Processor
· Onboard 2GB/4GB DDR3L Memory
· 1 x HDMI, 1 x VGA
· eMMC Onboard 32GB/64GB, 1 x TF Card Reader
· 1 x USB3.0, 3 x USB2.0, 1 x RS232
· 1 x RJ45, 1 x Mini-PCIe for 3G/4G, 1 x SIM slot
|
