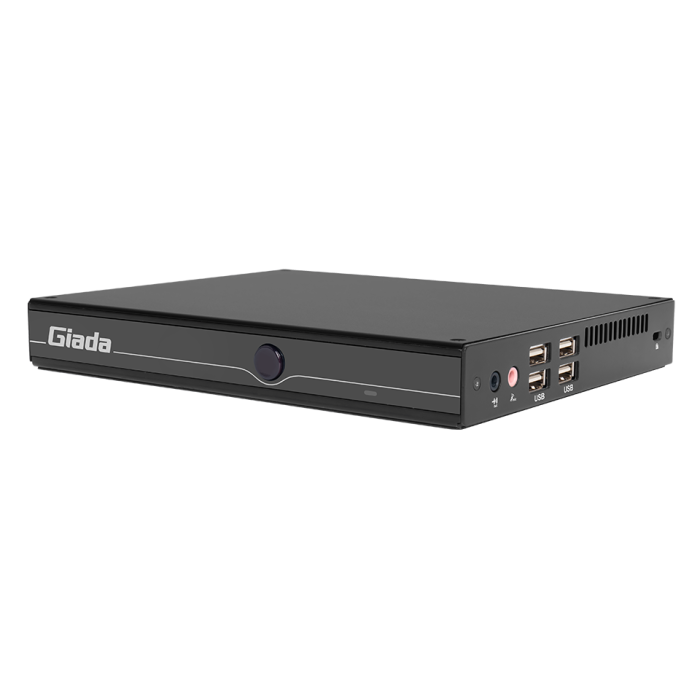

F108D Booksize Fanless Signage Player 4K

Details

Giada F108D is a book-size embedded PC that incorporates Intel® Alder Lake-N processors, providing a low-power range of 6-15W. Specifically designed for digital signage and kiosk applications, this slim and versatile device offers a range of features to meet the demands of various applications.

Robust I/O Ports for Seamless Integration

The F108D is equipped with a comprehensive set of I/O ports, ensuring seamless integration into diverse environments. Key features include:

Dual COM ports
6 USB Type-A ports
Dual LAN ports

This versatility makes the embedded PC an ideal choice for integration into vending machines, self-service kiosks, and check-in kiosks.

High-Quality Graphics for Exceptional Display

The digital signage player within the F108D adopts Intel® UHD Graphics, enhancing the visual experience. It boasts a display interface that includes a DP (DisplayPort) and two HDMI ports, supporting resolutions up to 4096 x 2160@60Hz. This ensures crisp and vibrant visuals for a wide range of applications.

Efficient Thermal Cooling for Reliability

Featuring a passive thermal cooling system, the F108D employs a fanless design that significantly reduces the failure rate of the device. This not only enhances reliability but also ensures noise-free and dustproof operation. The efficient cooling system makes the Giada F108D suitable for mission-critical applications where continuous and reliable performance is essential.

With its powerful processor, extensive I/O ports, high-quality graphics, and reliable thermal management, the Giada F108D stands out as an excellent choice for digital signage and kiosk applications. Whether deployed in vending machines or mission-critical environments, this embedded PC delivers a robust and efficient solution for a variety of use cases.

More Information

brand

Giada Technology Inc.

Specifications

Processor	CPU	Intel^® Processor N100 (Fanless) Intel^® Processor N95
	Turbo Frequency	3.40 GHz/3.40 GHz
	Chipset	SoC
	Processing Units	4 Cores/4 Cores
	TDP	6 W/15 W
Memory	Size	Up to 16 GB
Memory	Type	1 x SO-DIMM DDR4-3200 MHz
Storage	Socket 1	1 x M-Key M.2 (2280) for PCIe3.0 X4 SSD
Display	GPU	Intel^® UHD Graphics
	Graphic Engine	DirectX 12.1, OpenGL 4.6, OpenCL 3.0
	Display Interface	1 x DP (Max.4096 x 2160 @60Hz) 2 x HDMI (Max.4096 x 2160 @60Hz)
Network	Network Controller	2 x Realtek RTL 8111H Gigabit Ethernet
	Ethernet Interface	2 x RJ45 (Optional: 1 x RJ45)
	Wi-Fi/BT	1 x E-Key M.2 (2230) for Wi-Fi/BT, Support Wi-Fi 5, Wi-Fi 6
	Mobile Network	1 x B-Key M.2 (3042) for 3G/4G 1 x SIM Slot
I/O interface	USB	2 x USB3.2 Gen2, 4 x USB2.0
	Serial Port	2 x RS232
	Audio	1 x MIC-IN, 1 x AUDIO-OUT
	Button	1 x Power on, 1 x CLR-CMOS
	Antenna	2 x Connector for Wi-Fi/BT
System	TPM	Optional: TPM2.0
	Watchdog Timer	Yes
	Auto Power On	Yes
	RTC	Set up independently every day, a week as a cycle
	Power Requirement	DC-IN, 19 V/2.37 A
	Dimensions	189.6mm x 148.3mm x 26mm (7.46” x 5.83” x 1.02”)
	Construction	Metal, Black
	Operating System	Windows 10 (64bit) /Windows 11 (64bit) /Linux Ubuntu (64bit)
	Operating Temperature	0°C ~45°C (32°F~113°F) @0.7m/s Air Flow
	Humidity	95% @ 45°C (non-condensing)
	Certifications	CE, FCC Class B, UKCA
