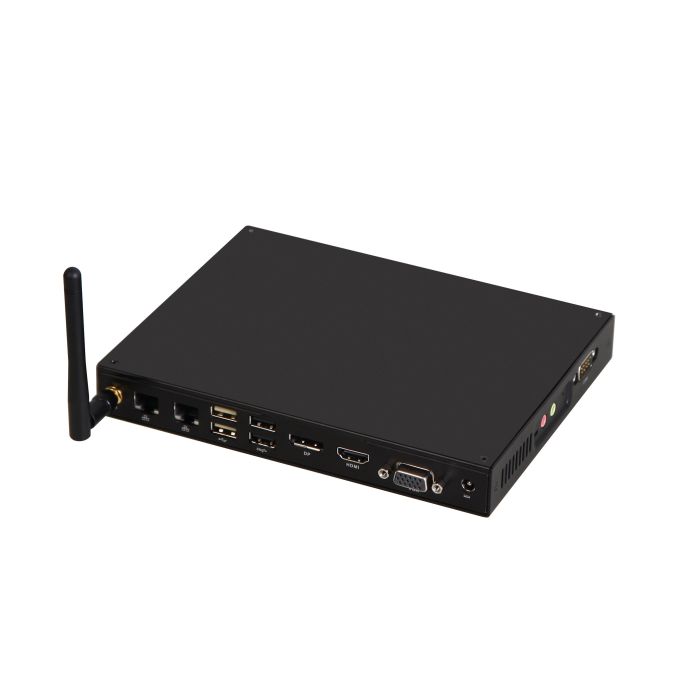

F105D Celeron Fanless Signage Player

A$0.00

In stock

SKU

F105D

REPLACED BY F106D

This product is now end of life. There might still be stock available; get in touch with us for more details or suggestions for appropriate replacements.

Details

Fanless embedded digital signage player, powered by Intel Celeron N3350/N3450 Processor

· Intel® Celeron N3350/N3450 Processor

· 1 X SO-DIMM DDR3L, Onboard 2GB

· 1 X DP, 1 X HDMI, 1X VGA

· 1 X 2.5” SATA, 1 X mSATA, 1 X M.2 for SSD

· 3 X USB 3.0, 3 X USB 2.0, 1 X RS232

· 2 X RJ45, 1 X Mini-PCIe for WiFi/BT/3G/4G, 1 x SIM slot

More Information

Brand

Giada Technology Inc.

Specifications

		F105D-BS200	F105D-BQ200
Processor	CPU	Intel^®Celeron N3350	Intel^®Celeron N3450
	Frequency	1.10GHz (Up to 2.40GHz)	1.10GHz (Up to 2.20GHz)
	BIOS	AMI Source Code
	Chipset	SOC
Memory	Type	DDR3L-1866MHz
	Socket	1 x SO-DIMM
	Max Size	Ondoard 2GB
Graphics	GPU	Intel^® Gen9 Graphics engine
	Graphic Engine	DirectX 12.0, OpenGL 4.3, OpenCL 2.0
	DP	1 x DP (Max.4096 x 2304 @60Hz)
	HDMI	1 x HDMI (Max.3840x2160 @30Hz)
	HDMI	1 x VGA (Max.2048x1536 @60Hz)
Network	Controller	2 x Realtek 8111H Gigabit Ethernet
	Interface	2 x RJ45
I/O	USB	3 x USB 3.0,3 x USB 2.0
	Serial Port	1 x RS232
	Audio	1 x AUDIO-OUT, 1 x MIC-IN
	Mini-PCIe1#	1 x Full-size Mini-PCIe for mSATA
	Mini-PCIe2#	1 x Full-size Mini-PCIe for WiFi/BT/3G/4G
	SIM	1 x SIM Slot
Storage	SATA	1 x 2.5"SATA
	mSATA	1 x Full-size mSATA
	M.2	1 x M.2(2242/2280) for SSD
JAHC Tech	WatchDog Timer	0~255 Second Time Out Support
	Auto Power On	Power Activated Automatically Start
	Remote Control	By IR Controller for Power On
	RTC	Set Up Independently Every day, A Week as a Cycle
	Wake On Lan	Yes
Operation System	Windows	Windows 10（64 Bit）
	Linux	Supported
Power	Power Type	DC-IN
	Input Voltage	19V / 2.1A
Mechanical	Dimensions (W × D × H)	189.6mm x 148.3mm x 26mm（7.46"x 5.84"x 1.02"）
	Construction	Metal
	Mounting	Desk/Wall Mounting and VESA Mounting Kit (JZ183)
	Color	Black
Environment	Operating Temperature	0℃ ~ 40℃ ( 32 ℉ ~ 104 ℉ ) at 0.7m/s Air Flow
	Relative Humidity	95%@40℃ (non-condensing)
Certification	Certification	CE, FCC Class B, CCC

Description

Fanless embedded digital signage player, powered by Intel Celeron N3350/N3450 Processor

· Intel® Celeron N3350/N3450 Processor

· 1 X SO-DIMM DDR3L, Onboard 2GB

· 1 X DP, 1 X HDMI, 1X VGA

· 1 X 2.5” SATA, 1 X mSATA, 1 X M.2 for SSD

· 3 X USB 3.0, 3 X USB 2.0, 1 X RS232

· 2 X RJ45, 1 X Mini-PCIe for WiFi/BT/3G/4G, 1 x SIM slot
