1 x USB 3.0 3 x USB 2.0 Ethernet: LAN 1: PCIe GbE by Intel® I210 controller LAN 2: PCIe GbE by Intel® I211 controller COM Port: 3 x RS-232 1 x RS-422/485 Digital I/O:8-bit digital I/O Display:1 x VGA Resolution:VGA: Up to 2560x1600@60Hz Audio:1 x Line out Wireless:1 x 802.11b/g/n (optional)
Expansion Slots
Expansion Slots
1 x Full-size PCIe Mini card slot (supports mSATA) 1 x Half-size PCIe Mini card (only for iRIS)
System
Cooling method / System Fan
Fanless
Drive Bays
1 x 2.5” SATA 3Gb/s HDD bay
Color
Color
Black
Dimensions
Dimensions
229 x 64 x 132
Weight
Weight
2.1 kg / 3.9 kg
Environment
Operating Temperature
-20°C~60°C with air flow (SSD)
Humidity
10% ~ 95%, non-condensing
Ordering Information
ECW-281B-BTi-J1/2GB-R20
Fanless embedded system with WAFER-BT-R20,with Intel® Celeron J1900 2GHz, 4 serial ports,with 2GB DDR3L pre-installed SO-DIMM memory,12VDC in, 60W power adapter, black, RoHS
Package Contents
Package Content
1 x Power cord
1 x Wall mount bracket
1 x 12V 60W power adapte
1 x Screw set
Description

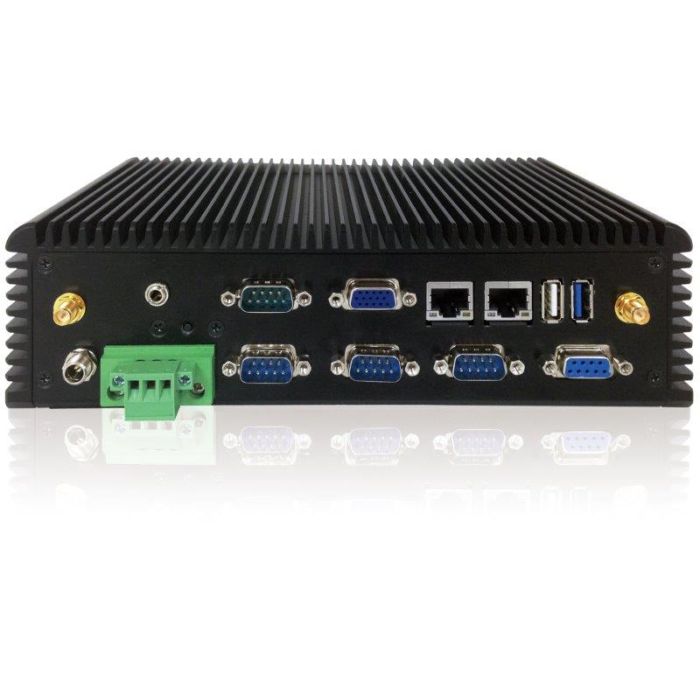

Fanless embedded system with WAFER-BTi, Intel Celeron J1900 2.42 GHz processor
Key Features:
Fanless system with Intel Celeron J1900 Processor
Supports four COM ports (three RS-232, one RS-422/485)
