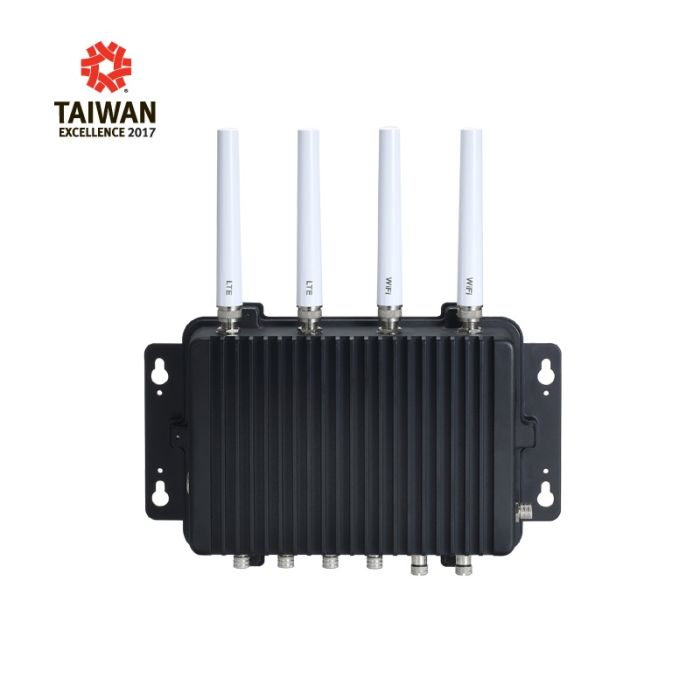

eBOX800-841-FL Rugged IP67 Fanless Embedded System Atom

A$0.00

In stock

SKU

eBOX800-841-FL

Rugged IP67-rated Fanless Embedded System with Intel® Atom® Processor E3845, VGA, 2 GbE LANs, 2 USB, 2 COM and 9 to 36

Rugged IP67-rated Fanless Embedded System with Intel® Atom® Processor E3845, VGA, 2 GbE LANs, 2 USB, 2 COM and 9 to 36 VDC

· IP67-rating for outdoor use

· Intel® Atom® processor E3845 onboard

· 4 N-jack antenna openings with water proof design

· -30°C to +60°C operating temperature range

· 9 to 36 VDC wide range power input

· Features M12 lockable I/Os

· Rich I/O options for customized designs and mission-critical projects

· Trusted Platform Module 1.2 (TPM)

brand

Axiomtek

Specifications

CPU	Intel Atom processor E3845 1.91 GHz
Chipset	SoC integrated
System Memory	1 x 204-pin SO-DIMM DDR3L-1066/1333, up to 8 GB
BIOS	AMI
COM	2 x RS-232/422/485 (M12-type)
USB	2 x USB 2.0 (M12-type)
Ethernet/PoE	2 x 10/100/1000 Mbps (Intel® i210-IT, M12)
Display	1 x VGA (M12-type)
Digital I/O	N/A
Audio	N/A
Storage	1 x 2.5” HDD drive bay (max. up 9.5 mm height) 1 x mSATA (enabled in BIOS setting) 1 x CFast™
Expansion	1 x Full-size PCI Express Mini Card slot (USB + PCI Express signal) 1 x Half-size PCI Express Mini Card slot (USB + PCI Express signal) 1 x SIM slot
Others	1 x 9~36VDC power input (M12-type) 1 x ATX power switch w/indicator 4 x N-jack type antenna opening
Power Supply	9 to 36 VDC
Watchdog Timer	255 levels, 1 to 255 sec.
Construction	Aluminum die-casting and heavy-duty steel, IP67
Operating Temperature	-30°C to +60°C (-22°F to +140°F) (with E3845, W.T. SSD/DRAM)
Relative Humidity	10% to 95% , non-condensing
Vibration	3 Grms with SSD (5 to 500Hz, X, Y, Z directions)
Dimensions (W x D x H)	210 x 366.83 x 83 mm (8.27” x 14.44” x 3.27")
Weight (net/gross)	4.31 kg (9.5 lb)/5.1 kg (11.24 lb)
Certifications	CE,FCC Class A
EOS Support	Win 10 IoT, WE8S, WES7, Linux
Mounting	Wall mount VESA mount
