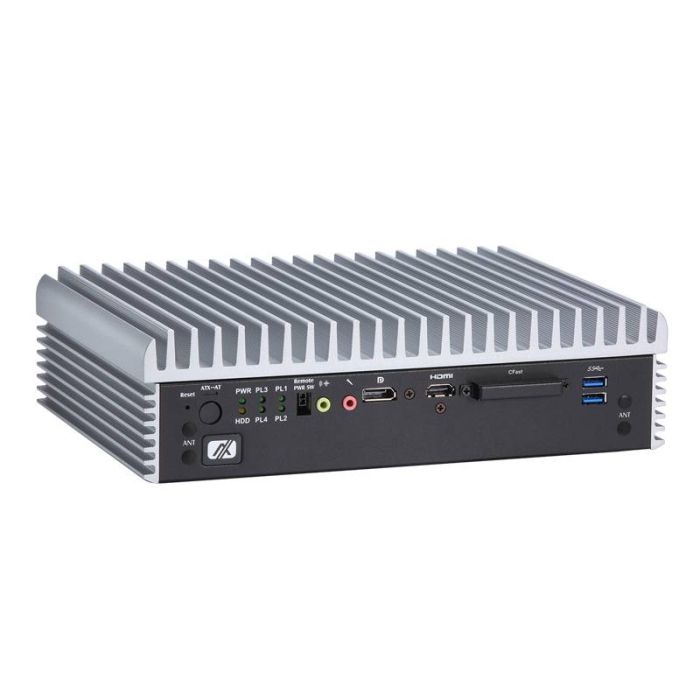

eBOX670-891-FL Fanless Embedded System with 7th/6th Gen

Standard Color

Silver-black

Construction

Aluminum extrusion and heavy-duty steel, IP40

CPU

LGA1151 socket 7th/6th gen Intel® Core™ i7/i5/i3 & Celeron® processor (CPU TDP max. up to 35W)

System Memory

6th gen: 2 x 260-pin SO-DIMM DDR4-1866/2133, up to 32GB

7th gen: 2 x 260-pin SO-DIMM DDR4-2133/2400, up to 32GB

Chipset

Intel® Q170

BIOS

AMI

System I/O Outlet

2 x RS-232/422/485 (onboard)

2 x RS-232/422/485 (via cable on flexible IO window)

2 x HDMI (1 x HDMI 2.0 & 1 x HDMI 1.4b)

1 x DisplayPort

1 x Audio (Mic-in/Line-out)

4 x 10/100/1000 Mbps Ethernet (Intel® i210-IT, i219-LM)

4 x USB 3.0

2 x USB 2.0 32-channel programmable DI/DO

4 x SMA-type antenna connector

1 x Phoenix type VDC power input connector

1 x ATX power switch

1 x Remote power switch

1 x AT/ATX quick switch

1 x Reset switch

1 x Flexible I/O window (default : 2 x COM port)

Watchdog Timer

255 levels, 1 to 255 sec.

Storage

2 x 2.5” SATA HDD drive bay (max. up 15 mm height & Supports RAID 0 & 1)

1 x CFast™

1 x mSATA (enabled in BIOS setting)

Expansion Interface

2 x Full-size PCI Express Mini Card slot (USB + PCI Express signal)

1 x SIM slot

System Indicator

1 x green LED for power-on

1 x yellow LED for HDD active

4 x green LED for programmable

TPM

N/A

Power Input

9 to 36 VDC

Operating Temperature

-40°C to +60°C (-40°F to +140°F) (with W.T. DRAM/SSD for Skylake) -40°C to +55°C (-40°F to +131°F) (with W.T. DRAM/SSD for Kaby Lake)

Humidity

10% to 95%, non-condensing

Vibration Endurance

3 Grms with CFast™ (5 to 500 Hz, X, Y, Z directions)

Dimensions

280 mm (11.02”) (W) x 190 mm (7.48”) (D) x 76 mm (2.99”) (H)

Weight

(net/gross) 3.8 kg (8.37 lb)/4.6 kg (10.14 lb)

Certifications

CE, FCC Class A

EOS Support

WE8S, Win 10 IoT, Linux, AXView 2.0
